Question

please write the code in C++

Implement the BinarySearchTree ADT in a file BinarySearchTree.h exactly as shown below.

// BinarySearchTree.h
// after Mark A. Weiss, Chapter 4, Dr. Kerstin Voigt

#ifndef BINARY_SEARCH_TREE_H
#define BINARY_SEARCH_TREE_H

#include <cassert>
#include <iostream>
using namespace std;

template <typename C>
class BinarySearchTree
{
  public:
    BinarySearchTree( ) : root{ nullptr }
    {
    }

    ~BinarySearchTree( )
    {
        makeEmpty();
    }

    const C & findMin( ) const
    {
      assert(!isEmpty());
      return findMin( root )->element;
    }

    const C & findMax( ) const
    {
      assert(!isEmpty());
      return findMax( root )->element;
    }

    bool contains( const C & x ) const
    {
        return contains( x, root );
    }

    bool isEmpty( ) const
    {
        return root == nullptr;
    }

    void printTree( ) const
    {
        if( isEmpty( ) )
            cout << "Empty tree" << endl;
        else
            printTree( root );
    }

    void makeEmpty( )
    {
        makeEmpty( root );
    }

    void insert( const C & x )
    {
        insert( x, root );
    }

    void remove( const C & x )
    {
        remove( x, root );
    }

  private:

    struct BinaryNode
    {
        C element;
        BinaryNode* left;
        BinaryNode* right;

        BinaryNode( const C & theElement, BinaryNode* lt, BinaryNode* rt )
          : element{ theElement }, left{ lt }, right{ rt } { }
    };

    BinaryNode* root;

    // Internal method to insert into a subtree.
    // x is the item to insert.
    // t is the node that roots the subtree.
    // Set the new root of the subtree.
    void insert( const C & x, BinaryNode* & t )
    {
        if( t == nullptr )
            t = new BinaryNode{ x, nullptr, nullptr };
        else if( x < t->element )
            insert( x, t->left );
        else if( t->element < x )
            insert( x, t->right );
        else
            ;  // Duplicate; do nothing
    }

    // Internal method to remove from a subtree.
    // x is the item to remove.
    // t is the node that roots the subtree.
    // Set the new root of the subtree.
    void remove( const C & x, BinaryNode* & t )
    {
        if( t == nullptr )
            return;   // Item not found; do nothing
        if( x < t->element )
            remove( x, t->left );
        else if( t->element < x )
            remove( x, t->right );
        else if( t->left != nullptr && t->right != nullptr ) // Two children
        {
            t->element = findMin( t->right )->element;
            remove( t->element, t->right );
        }
        else
        {
            BinaryNode* oldNode = t;
            t = ( t->left != nullptr ) ? t->left : t->right;
            delete oldNode;
        }
    }

    // Internal method to find the smallest item in a subtree t.
    // Return node containing the smallest item.
    BinaryNode* findMin( BinaryNode* t ) const
    {
        if( t == nullptr )
            return nullptr;
        if( t->left == nullptr )
            return t;
        return findMin( t->left );
    }

    // Internal method to find the largest item in a subtree t.
    // Return node containing the largest item.
    BinaryNode* findMax( BinaryNode* t ) const
    {
        if( t != nullptr )
            while( t->right != nullptr )
                t = t->right;
        return t;
    }

    // Internal method to test if an item is in a subtree.
    // x is item to search for.
    // t is the node that roots the subtree.
    bool contains( const C & x, BinaryNode* t ) const
    {
        if( t == nullptr )
            return false;
        else if( x < t->element )
            return contains( x, t->left );
        else if( t->element < x )
            return contains( x, t->right );
        else
            return true;    // Match
    }

    void makeEmpty( BinaryNode* & t )
    {
        if( t != nullptr )
        {
            makeEmpty( t->left );
            makeEmpty( t->right );
            delete t;
        }
        t = nullptr;
    }

    void printTree( BinaryNode* t) const
    {
        if( t != nullptr )
        {
            printTree( t->left);
            cout << t->element << " - ";
            printTree( t->right);
        }
    }
};
#endif

Exercise 2:

Program your own file lab07.cpp in which your main() function will test the new data structure.

• The main function is contained in the file lab07.cpp.
• Declare an instance of BinarySearchTree (short: BST) suitable to hold integer values.
• Prompt user to enter a random sequence of integer values, insert these values into the data structure (the entered values should NOT be in sorted order).
• Call the printTree() member function in order to print out the values of the BST structure.
• Prompt user to enter a random sequence of integer values, remove these values from your BST. Print out the reduced BST.

Exercise 3:

• Add the following member function in your BinarySearchTree class template.

  public:

  void printInternal()
  {
     print_Internal(root,0);
  }

  private:

  void printInternal(BinaryNode* t, int offset)
  {
     if (t == nullptr)
         return;

     for(int i = 1; i <= offset; i++)
         cout << "...";
     cout << t->element << endl;
     printInternal(t->left, offset + 1);
     printInternal(t->right, offset + 1);
  }


• Go back to your program lab07.cpp and call printInternal. Compile and run your program, and see what you get.

The expected result:

insert the values (stop when entering 0):
10 5 20 3 22 6 18 7 9 13 15 4 2 1 19 30 8 0
print the values:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 13 - 15 - 18 - 19 - 20 - 22 - 30 -
Print the tree:
10
...5
......3
.........2
............1
.........4
......6
.........7
............9
...............8
...20
......18
.........13
............15
.........19
......22
.........30
remove the values (stop when entering 0):
1 11 2 12 3 13 0
print the values:
4 - 5 - 6 - 7 - 8 - 9 - 10 - 15 - 18 - 19 - 20 - 22 - 30 -
Print the tree:
10
...5
......4
......6
.........7
............9
...............8
...20
......18
.........15
.........19
......22
.........30

Compilation

This lab exercise should be put under cse330/lab07 subdirectory.

$g++ -c BinarySearchTree.h
$g++ -c lab07.cpp
$g++ lab07.o -o lab7
$./lab7

Hand In

• BinarySearchTree.h: the implementation file of the BinarySearchTree class template.
• lab07.cpp: the test file containing main() funcion.
• lab07result: the script file which captures the result.

Answer 1

#include<bits/stdc++.h>
#include "BinarySearch.h"
using namespace std;
int main()
{
BinarySearchTree <int>tree;
string s,num;
stringstream ss;
int temp;
cout<<"insert the values (stop when entering 0):\n";
getline(cin,s); //Take input in string format
int prev=-1,ind=-1;
while(1)
{
prev=ind;
ind=s.find(" ",prev+1); //find index of next space
if(ind==-1) //we reached last word
break; //exit from loop
num=s.substr(prev+1,ind-prev-1); //num contains number in string format
//convert num from string to integer
ss<<num;
ss>>temp;
ss.clear();
tree.insert(temp); //add number to tree
}
cout<<"print the values:\n";
tree.printTree();
cout<<"\nPrint the tree:\n";
tree.printInternal();
cout<<"\nremove the values (stop when entering 0):\n";
getline(cin,s); //Take input in string format
prev=-1,ind=-1;
while(1)
{
prev=ind;
ind=s.find(" ",prev+1); //find index of next space
if(ind==-1) //we reached last word
break; //exit from loop
num=s.substr(prev+1,ind-prev-1); //num contains number in string format
//convert num from string to integer
ss<<num;
ss>>temp;
ss.clear();
tree.remove(temp); //add number to tree
}
cout<<"\nprint the values:\n";
tree.printTree();
cout<<"\nPrint the tree:\n";
tree.printInternal();
return 0;
}

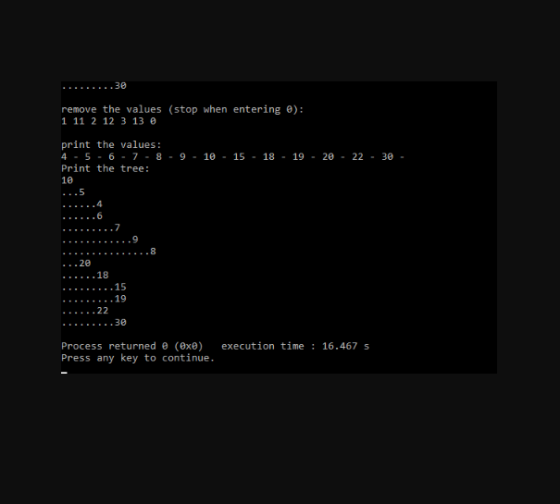

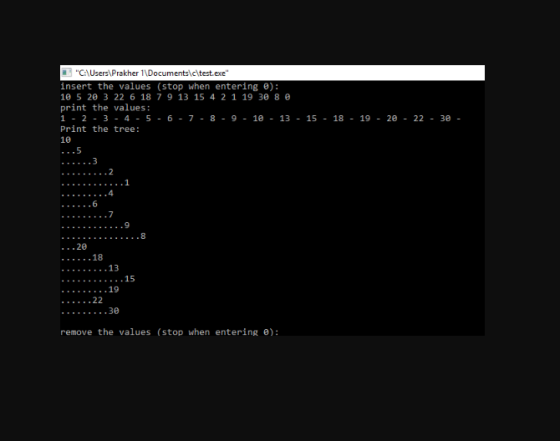

OUT PUT:

THE ABOVE PICTERS ARE THE RESULTS

THANK YOU
