When a magnifying glass is held 15cm from an insect, the upright image of the insect...

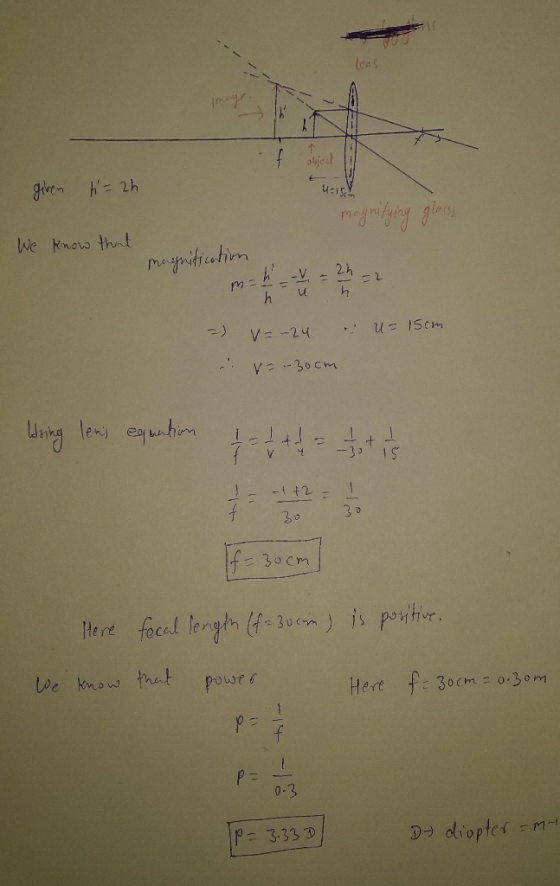

When a magnifying glass is held 15cm from an insect, the upright image of the insect appears twice as large as the insect. What are the focal distance and the power of the magnifying glass? Draw the ray diagram. Show your calculations.? Is the focal length negative or positive.? please help
Homework Answers
Add Answer to:
When a magnifying glass is held 15cm from an insect, the upright
image of the insect...
please answer A,B,and C. 4. A magnifying glass produces a magnification of +3.00 when held 4....
please answer A,B,and C.
4. A magnifying glass produces a magnification of +3.00 when held 4. 50 cm from an object, such as a coin. a. What is the focal length of the magnifying glass? SHOW WORK b. Delenuine le magnification of the image. SIIOW WORK C. Draw a neat and clear ray diagram.
A magnifying glass is held 2.9cm from the nickel. the image is twice as large and...
A magnifying glass is held 2.9cm from the nickel. the image is twice as large and erect. find the focal length of the lens.
a magnifying glass is held 2.9cm from a nickle. the image is twice as large and...
a magnifying glass is held 2.9cm from a nickle. the image is twice as large and erect. find the focal length of the lens
You hold a magnifying glass up to a flower. The magnifying glass has a focal length...
You hold a magnifying glass up to a flower. The magnifying glass has a focal length of 6.0 cm and you hold the flower 4.0 cm from the glass. What is the distance from the glass that you see the image? What is the magnification? Use a scaled ray tracing diagram! Focal point Virtual image Object

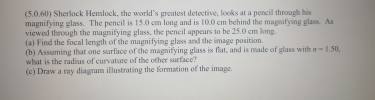

(5.0.60) Sherlock Hemlock, the world's greatest detective, looks at a pencil through his magnifying glass. The...
(5.0.60) Sherlock Hemlock, the world's greatest detective, looks at a pencil through his magnifying glass. The pencil is 15.0 cm long and is 10.0 cm behind the magnifying glass. As viewed through the magnifying glass, the pencil appears to be 25.0 cm long. (a) Find the focal length of the magnifying glass and the image position. (b) Assuming that one surface of the magnifying glass is flat, and is made of glass with n - 1.50, what is the radius...
A doctor examines a mole with a 15.6 cm focal length magnifying glass held 11.7 cm...
A doctor examines a mole with a 15.6 cm focal length magnifying glass held 11.7 cm from the mole. (a) How far is the image from the lens? Can you write the thin lens equation which gives a relationship between the focal length of a lens, the object distance, and the image distance? If the image distance is negative, what can you conclude about the image? cm Is the image real or virtual? realvirtual (b) What is its magnification? (c)...
When you place a saltshaker 44 cm from your magnifying glass, a real image forms 40...
When you place a saltshaker 44 cm from your magnifying glass, a real image forms 40 cm from the lens on the opposite side. You can see this image dimly on a sheet of paper. What is the focal length of the magnifying glass? Please explain step by step. Thanks!

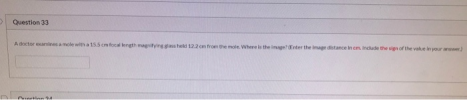

Question 33 A doctor examines a mole with a 15.5 cm focal length magnifying glass held...
Question 33 A doctor examines a mole with a 15.5 cm focal length magnifying glass held 12.2 cm from the male Wheels the image (Enter the image distance in em. Include the sign of the value in your answer.)
A doctor examines a mole with a 15.6 cm focal length magnifying glass held 10.6 cm...
A doctor examines a mole with a 15.6 cm focal length magnifying glass held 10.6 cm from the mole Where is the image? (give your answer in terms of a distance, in cm, from the lens.)
When a person holds a magnifying glass 8.0 cm away from an object that is 2.0...
When a person holds a magnifying glass 8.0 cm away from an object that is 2.0 cm wide, she sees a virtual image of the object, which is 6.0 cm wide. What is the focal length of the magnifying glass? Provide a drawing using the ray tracing rules.
please answer A,B,and C.
4. A magnifying glass produces a magnification of +3.00 when held 4. 50 cm from an object, such as a coin. a. What is the focal length of the magnifying glass? SHOW WORK b. Delenuine le magnification of the image. SIIOW WORK C. Draw a neat and clear ray diagram.
You hold a magnifying glass up to a flower. The magnifying glass has a focal length of 6.0 cm and you hold the flower 4.0 cm from the glass. What is the distance from the glass that you see the image? What is the magnification? Use a scaled ray tracing diagram! Focal point Virtual image Object
(5.0.60) Sherlock Hemlock, the world's greatest detective, looks at a pencil through his magnifying glass. The pencil is 15.0 cm long and is 10.0 cm behind the magnifying glass. As viewed through the magnifying glass, the pencil appears to be 25.0 cm long. (a) Find the focal length of the magnifying glass and the image position. (b) Assuming that one surface of the magnifying glass is flat, and is made of glass with n - 1.50, what is the radius...
Question 33 A doctor examines a mole with a 15.5 cm focal length magnifying glass held 12.2 cm from the male Wheels the image (Enter the image distance in em. Include the sign of the value in your answer.)
When a person holds a magnifying glass 8.0 cm away from an object that is 2.0 cm wide, she sees a virtual image of the object, which is 6.0 cm wide. What is the focal length of the magnifying glass? Provide a drawing using the ray tracing rules.
