What is impedance in electrical network? Can you explain impedance matching and impedance bridging?
What is impedance in electrical network? Can you explain impedance matching and impedance bridging?
Homework Answers
for more and well detailed explanation you are most welcome.
Feel free to ask
Add Answer to:

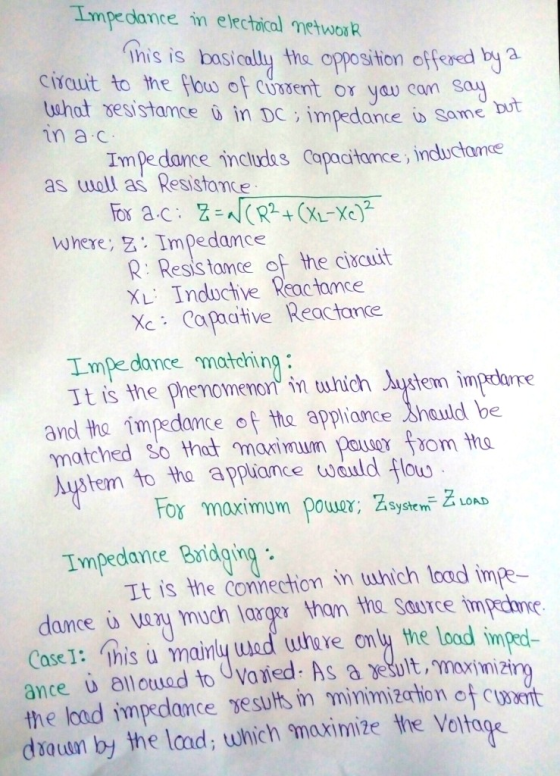

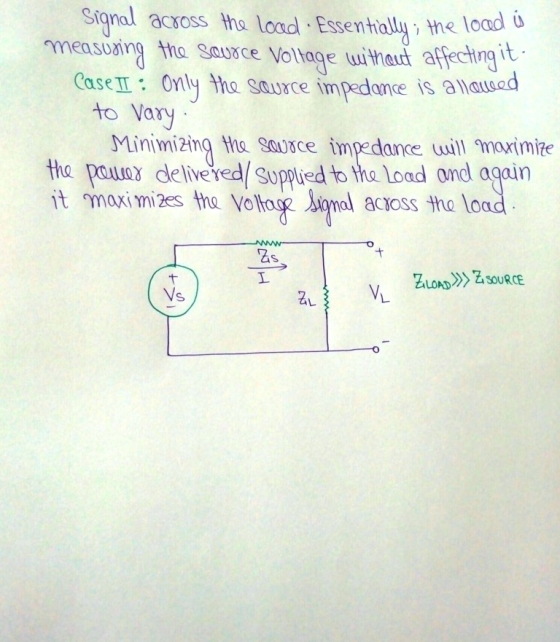

What is impedance in electrical network? Can you explain
impedance matching and impedance bridging?
3. (20 points) (a) Design an LC matching network for a load with an impedance of...
3. (20 points) (a) Design an LC matching network for a load with an impedance of 100+ j60 ohm at 2 GHz. (b) Design an LC matching network for a load with an impedance of 20-j20 ohm at 2 GHz. Assume ideal inductors and capacitors, and that you can choose any value you wish. This is not true in real life. oh smith clads
Consider a 2-port LTI network consisting of a passive impedance matching circuit. It could be a...
Consider a 2-port LTI network consisting of a passive impedance matching circuit. It could be a simple untuned transformer or a tuned resonant circuit . Discuss what is meant by the concept of reflected impedance when looking into the 2-port network from either side, and how it relies on the concept of solid terminations. What is a solid termination and why is it important.
lumped element matching network and single stub 2. A transmission line of characteristic impedance Zo 50Q is termina...
lumped element matching network and single stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using L or R lumped element and find the values of L or R. (b) Design impedance matching using single open stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using...
8.16 Using matching network shown below, find the stub length ls the characteristic impedance Zou...
8.16 Using matching network shown below, find the stub length ls the characteristic impedance Zou and the transmission line length 11 such that the ZL = (80-j40) Ω load impedance is matched to a 50 Ω source. Assume that the characteristic impedance of the stubs Zos = 50 Ω. Zas ls Zin Open or short circuit
8.16 Using matching network shown below, find the stub length ls the characteristic impedance Zou and the transmission line length 11 such that the...
5. Double Stub Matching Network Design a double shunt open-circuit stub matching network to match a load impedance Z, = 80-j60 Ω to a 50 Ω air-filled line operating at frequency f = 1 GHz、The di...
5. Double Stub Matching Network Design a double shunt open-circuit stub matching network to match a load impedance Z, = 80-j60 Ω to a 50 Ω air-filled line operating at frequency f = 1 GHz、The distance between the stubs is,-/8. Sketch the resultant network and specify the line lengths in millimeters.
5. Double Stub Matching Network Design a double shunt open-circuit stub matching network to match a load impedance Z, = 80-j60 Ω to a 50 Ω air-filled line operating...
Consider the system with matching network shown in Fig. 3. 1) Select L and C such...
Consider the system with matching network shown in Fig. 3. 1) Select L and C such that the input impedance Zin is 50 Ohms resistive at the Industrial, Scientific, and Medical (ISM) band frequency of 27.12 MHz. same frequency. transformation at 13.56 MHz, and at the same time offer high-pass function. 2) Design a different matching networks that provide the same impedance transformation at the 3) Design a matching network with two L and one C that can provide the...
(1p) In the case of impedance matching by using a discrete element, what are the two...
(1p) In the case of impedance matching by using a discrete element, what are the two "degrees of freedom" needed to achieve matching? 1.
matlab problem Problem 3 Impedance matching concept in electrical circuits states that the maximum power to a loa wh...
matlab problem
Problem 3 Impedance matching concept in electrical circuits states that the maximum power to a loa when the load resistance is matched to the internal resistance of the source. Show that this is true by plotting the power to the load RL and that it is maximum when is equal to the source resistance Rs for a source of 10 v DC and internal resistance Rs of load RL in series. Fit the power vs resistance to a...
Design two parallel open single-stub matching network that match a load 60-j45 Ω to a source...
Design two parallel open single-stub matching network that match a load 60-j45 Ω to a source with an internal impedance 75-j90 Ω. Assume that both stub and the transmission line have a characteristic impedance of 75 Ω.
What is the impedance, 0 , i Z Ze φ = of this network, at angular...
What is the impedance, 0 , i Z Ze φ = of this network, at
angular frequency ω ?
3. (20 points) (a) Design an LC matching network for a load with an impedance of 100+ j60 ohm at 2 GHz. (b) Design an LC matching network for a load with an impedance of 20-j20 ohm at 2 GHz. Assume ideal inductors and capacitors, and that you can choose any value you wish. This is not true in real life. oh smith clads
lumped element matching network and single stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using L or R lumped element and find the values of L or R. (b) Design impedance matching using single open stub
2. A transmission line of characteristic impedance Zo 50Q is terminated with a load impedance Z, 25-j10. Operating frequency is 1GH2 (a) Design impedance matching using...
8.16 Using matching network shown below, find the stub length ls the characteristic impedance Zou and the transmission line length 11 such that the ZL = (80-j40) Ω load impedance is matched to a 50 Ω source. Assume that the characteristic impedance of the stubs Zos = 50 Ω. Zas ls Zin Open or short circuit
8.16 Using matching network shown below, find the stub length ls the characteristic impedance Zou and the transmission line length 11 such that the...
5. Double Stub Matching Network Design a double shunt open-circuit stub matching network to match a load impedance Z, = 80-j60 Ω to a 50 Ω air-filled line operating at frequency f = 1 GHz、The distance between the stubs is,-/8. Sketch the resultant network and specify the line lengths in millimeters.
5. Double Stub Matching Network Design a double shunt open-circuit stub matching network to match a load impedance Z, = 80-j60 Ω to a 50 Ω air-filled line operating...
Consider the system with matching network shown in Fig. 3. 1) Select L and C such that the input impedance Zin is 50 Ohms resistive at the Industrial, Scientific, and Medical (ISM) band frequency of 27.12 MHz. same frequency. transformation at 13.56 MHz, and at the same time offer high-pass function. 2) Design a different matching networks that provide the same impedance transformation at the 3) Design a matching network with two L and one C that can provide the...
(1p) In the case of impedance matching by using a discrete element, what are the two "degrees of freedom" needed to achieve matching? 1.
matlab problem
Problem 3 Impedance matching concept in electrical circuits states that the maximum power to a loa when the load resistance is matched to the internal resistance of the source. Show that this is true by plotting the power to the load RL and that it is maximum when is equal to the source resistance Rs for a source of 10 v DC and internal resistance Rs of load RL in series. Fit the power vs resistance to a...
What is the impedance, 0 , i Z Ze φ = of this network, at
angular frequency ω ?
