6. A capacitor is composed of two parallel square metal plates with sides of length 0.2...
6. A capacitor is composed of two parallel square metal plates with sides of length 0.2 m, separated by 1 mm. The plates are charged by a 10 V battery.
What changes occur in the quantities in (a)-(d) if the region between the plates is filled with a fluid with dielectric constant K=3?
(a) Capacitance = 3.54 x 10^-9 F
(b) Charge density: 8.85 x 10^-8 C/m2
(c) Electric field: 10^4 V/m
(d) Energy: 1.77 x 10^-7 J
***Please please explain if you show calculations what the answer indicates! ***

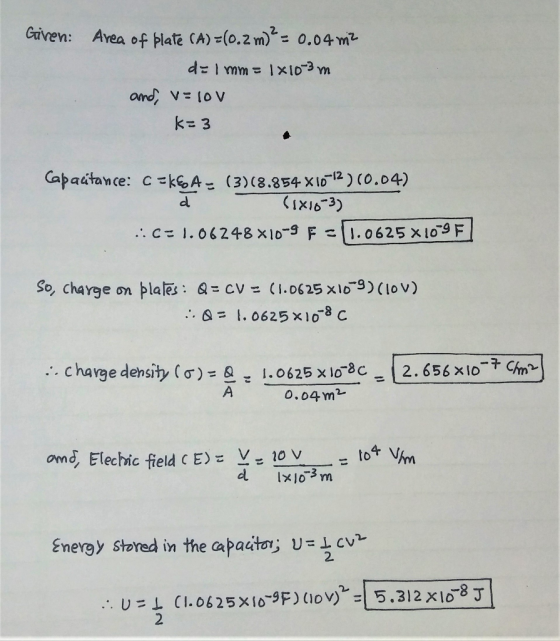

Homework Answers
Alright Dude, If that worked for you... don't forget to give THUMBS
UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment - At least
before giving down vote.
and_Thanks for using Chegg- Smarter way to study.
