Question

I would like to make an er diagram for a hospital database system and underline key attributes for entity sets, specify relationships with arrowheads. I chose Patient, Doctor, Room, Nurse, Medicine and Bill as entities.

Answer 1

Explanation:

• The entities which are used in this diagram are - Doctor, Patient, Nurse, Room, Bill, Medicine, Treatment, and types of the room i.e. General rooms and ICU.
• Here, each doctor can be assisted by many nurses. So, we have made the relationship of 1:M
• Also, a patient can have multiple bills. So, a 1:M relationship is made.
• The doctor entity will have a name, age, gender, a department he/she is working on and address as key attributes.
• The nurse will have a key attribute as name, age, department, address as the key attributes
• The patient will have key attributes like address, disease, name, age, gender.
• Medicine will have a name, price, and type as the main attribute.
• Bill will have Bill no, date and it can contain the treatment bill or medicinal bill.

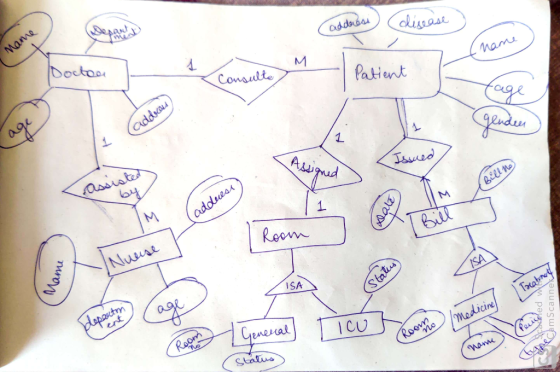

Diagram


Friend, this was a really nice question to answer. I have used the limited and key attributes you can add the extra attributes as per your wish. If you like the answer, please like it. Thanks.
