3. From a laboratory experiment, it is found that a grey body ‘A’ of area 2...

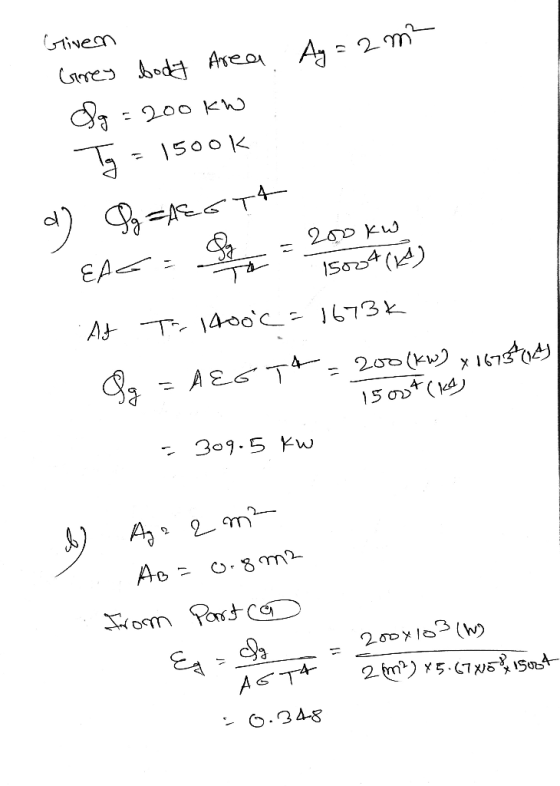

3. From a laboratory experiment, it is found that a grey body ‘A’
of area 2 m2, radiates about 200 kW at 1500 K.

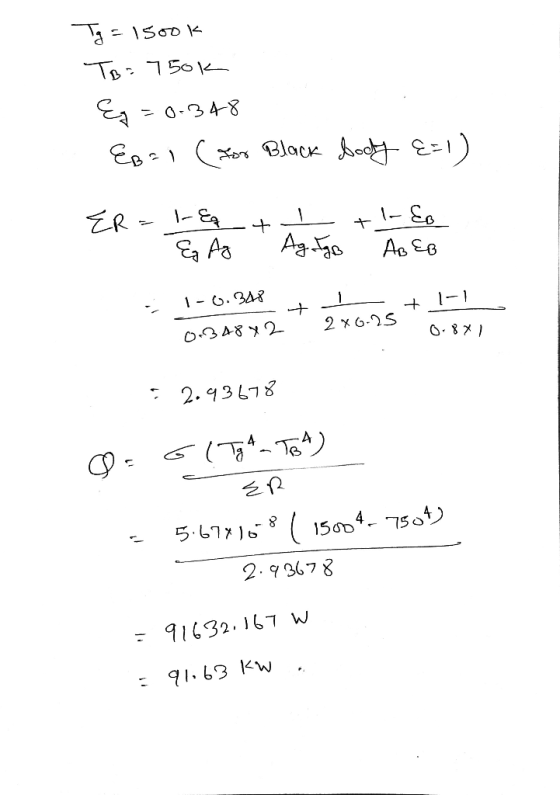

a) Calculate the power output of this device at 1400oC. [6] b) Grey
Body ‘A’ is rectangular in shape with a ‘View Factor’ of 0.25.
There is a black body
(B) of area 0.8 m2 in the vicinity to which heat must be
transferred from ‘B’, please estimate what is the net heat energy
transferred between the 2, with B being at a temperature of 750 K.
[6]
Homework Answers
Add Answer to:
3. From a laboratory experiment, it is found that a grey body ‘A’
of area 2...
QUESTION 6 Consider a 30-cm x 30-cm x 30-cm cubical body at 1000 °C suspended in...
QUESTION 6 Consider a 30-cm x 30-cm x 30-cm cubical body at 1000 °C suspended in the air. Assuming the body closely approximates a blackbody, determine the rate at which the cube emits radiation energy, i n kW 30.6 80.4 61.4 324.2 134.7 QUESTION 7 Determine the hydraulic diameter (Dh) of the duct (pipe) section shown in the following figure. (Assume: b 40 and h 20) 43.8 57.6 48.1 66.2 (8-11) Consider the arrangement of the three black surfaces shown...
How much power (power is the energy per second) is radiated by the person
Radiation of Energy The rate of heat transfer by emitted radiation is determined by the Stefan-Boltzmann law of radiation: = aeAT4 where o 5.67x10-8 J/s - m2 K is the Stefan-Boltzmann constant, A is the surface area of the object, and T is its absolute temperature in kelvin. The symbol e stands for the emissivity of the object, which is a measure of how well it radiates An ideal jet-black (or black body) radiator has e 1,whereas a perfect reflector has...
pts per question) 1. A 2 m piston cylinder device contains nitroen gas at 200 kPa...
pts per question) 1. A 2 m piston cylinder device contains nitroen gas at 200 kPa and 350K. Now heat is transferred to the nitrogen in the tank and the pressure of nitrogen rises to 900 kPa and volume is maintained at same. The boundary work done during this process is (a) 1080 kJ (b) 840 k (c)240 k 2. A heat engine receives heat from a source at 727°C and rejiects the waste heat to a sink at 27°C,...
In a physics laboratory experiment, a coil with 210 turns enclosing an area of 12.9 cm2 is rotated in a time interval of 3.50x10-2 s from a position
In a physics laboratory experiment, a coil with 210 turns enclosing an area of 12.9 cm2 is rotated in a time interval of 3.50x10-2 s from a position where its plane is perpendicular to the earth's magnetic field to one where its plane is parallel to the field. The earth's magnetic field at the lab location is 6.2x10-5 TA) What is the total magnetic flux through the coil before it is rotated?B) What is the total magnetic flux through the...
please solve these questions (a) Calculate the rate of heat transfer by radiation from a car...
please solve these questions

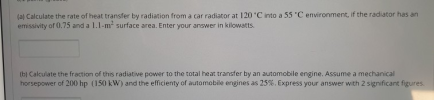

(a) Calculate the rate of heat transfer by radiation from a car radiator at 120 °C into a 55 °C environment, if the radiator has an emissivity of 0.75 and a 1.1-m surface area. Enter your answer in kilowatts. (b) Calculate the fraction of this radiative power to the total heat transfer by an automobile engine. Assume a mechanical horsepower of 200 hp (150 kW) and the efficienty of automobile engines as 25 %. Express your...
