A 10 kVA transformer has 2 % resistance and a rated core loss of 150 watts....

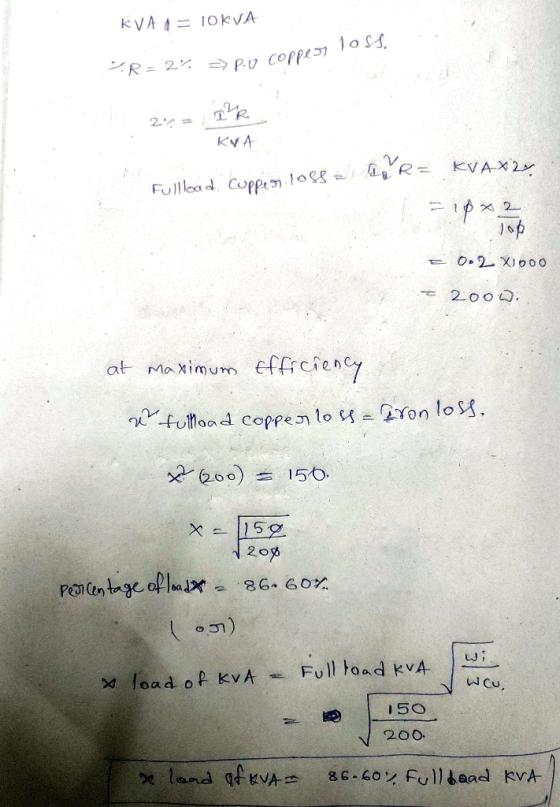

A 10 kVA transformer has 2 % resistance and a rated core loss of 150 watts. At what percent of its rated kVA will this transformer operate to achieve maximum efficiency?

86.6 %

89.3 %

88.2 %

91.2 %

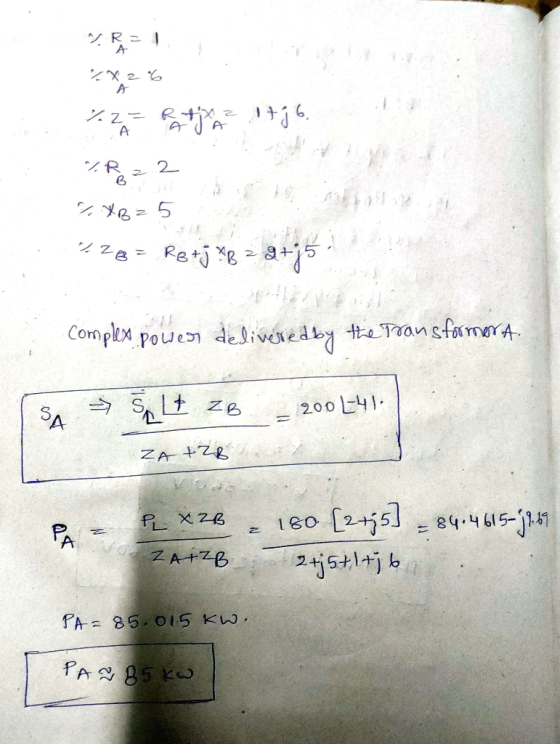

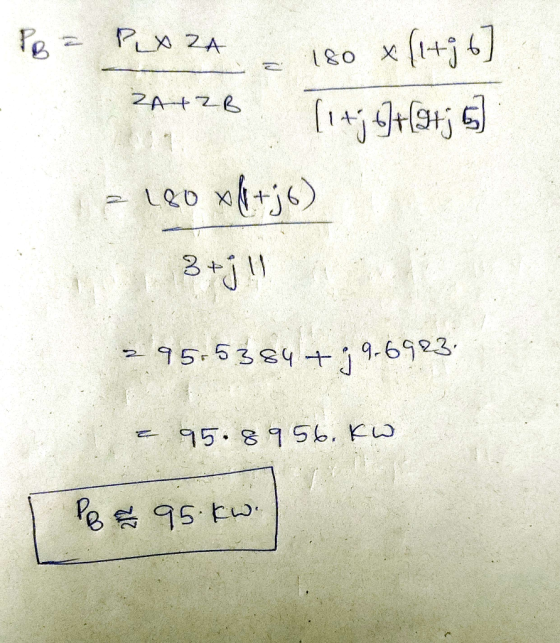

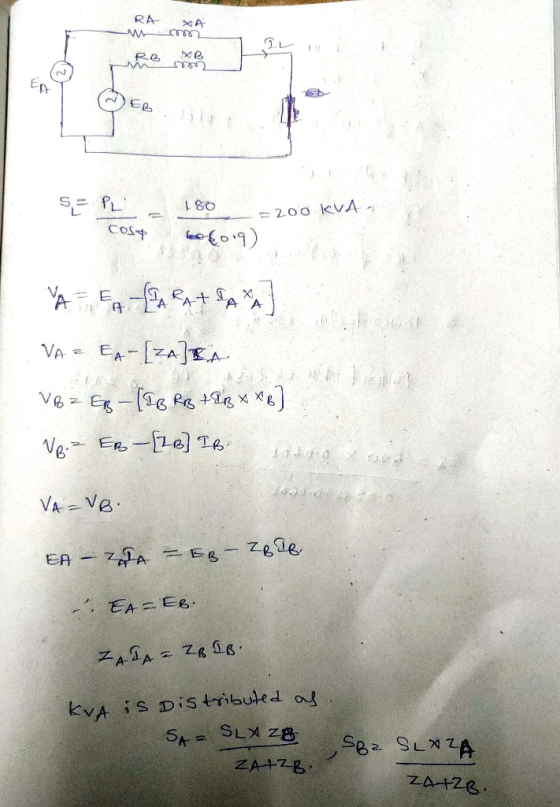

Two single-phase transformers with equal ratings and turns ratio are operated in parallel to supply a load of 180 kW at a lagging pf of 0.90. Transformer A has a resistance of 1% and a reactance of 6%. Transformer B has a resistance of 2% and a reactance of 5%. Calculate the power delivered by each transformer.

85 kW, 95 kW

90 kW, 90 kW

88 kW, 92 kW

80 kW, 100 kW

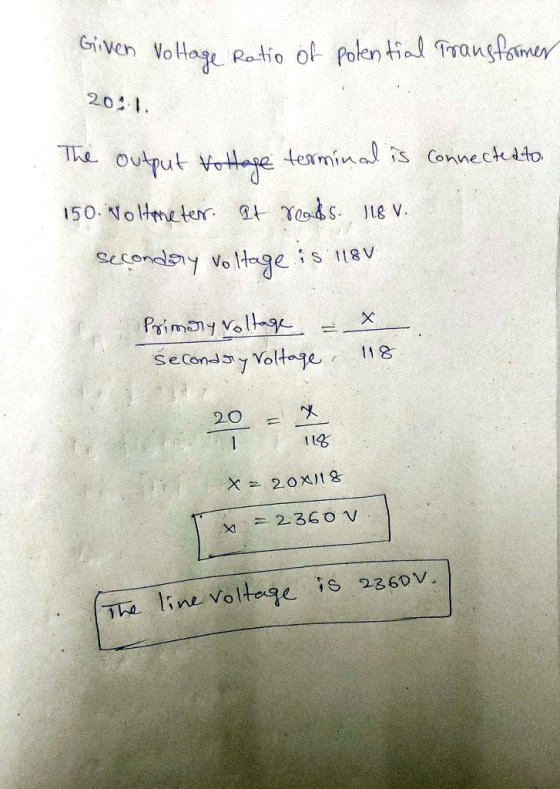

A 20:1 potential transformer is used with a 150-volt voltmeter. If the instrument deflection is 118 volts, calculate the line voltage.

5900 V

885 V

2360 V

None of these

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
