The mean free speed in a road section is 70mph and when the flow rate is...

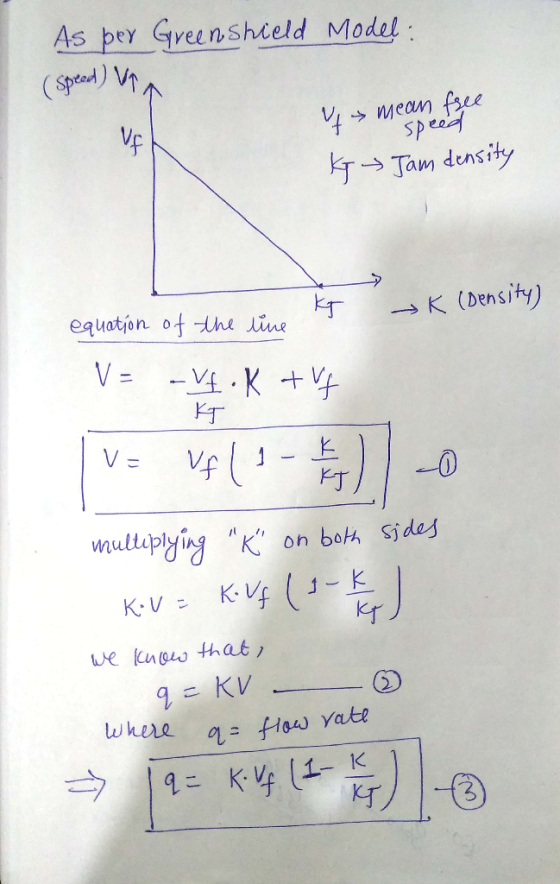

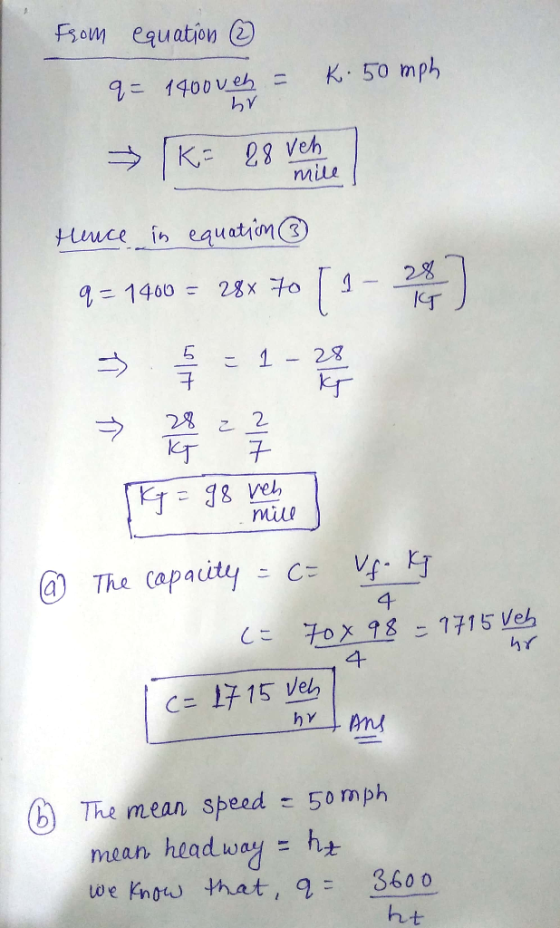

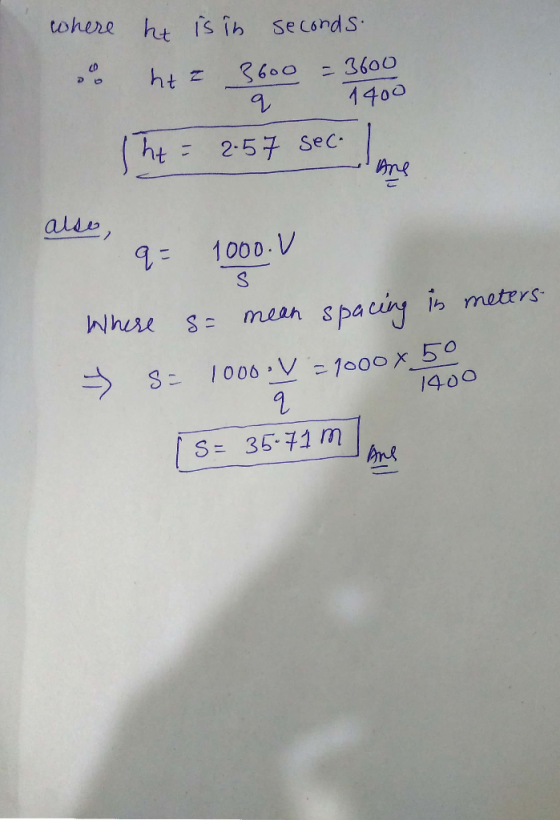

The mean free speed in a road section is 70mph and when the flow
rate is 1400 veh/h, the mean speed is 50 mph. Estimate using
Greenshield’sModel:
(a) the capacity;
(b) the mean speed, mean headway and mean spacing at capacity.
Homework Answers
Add Answer to:
The mean free speed in a road section is 70mph and when the flow
rate is...
---------------- civil engineering ----------------------- capacity 1500 veh/h free flow speed 60 km/hr on a one lane...
---------------- civil engineering ----------------------- capacity 1500 veh/h free flow speed 60 km/hr on a one lane traffic road, there exists a railway grade grossing at the end of the road section. on one day, a train is passing through the crossing and the gate is cloased. consequently the vehciles are required to stop behind the gate while the train is passing. three min later the gate opens and the vehicles leave rigth away. traffic flow in normal traffic conditions is...
5. Traffic on Route 15 south of Selinsgrove was observed at two different times. The first...
5. Traffic on Route 15 south of Selinsgrove was observed at two different times. The first observation found a flow rate of 1,863 vehicles per hour per lane and a density of 85 vehicles per mile. The second observation found a flow rate of 1,050 vehicles per hour per lane and a density of 25 vehicles per mile. Using this data, compute the following: a. For both observations, determine the vehicle speed [mph] and the time headway [sec] b. If...
Please clearly show all steps. Answers are in red. On a specific westbound section of highway,...
Please clearly show all steps. Answers are in red.
On a specific westbound section of highway, studies show that the speed-density relationship is: 1. 3.6 It is known that the capacity is 3600 veh/h and the jam density is 215 veh/mi. a. What is the density at the point of maximum flow? 140.7 veh/mi b. What is the spacing between vehicles at this density? 19.20 ft/veh Assume an average vehicle length of 220 inches c. What is the space-mean speed...
(A) You are tasked with reporting the speeds for a road to the DOT. The speeds...
(A) You are tasked with reporting the speeds for a road to the DOT. The speeds are shown in the table below, where for example 8 cars had a 30 mph speed, 12 cars a 33 mph speed, etc. Speed Count 30 mph 8 33 mph 12 40 mph 17 42 mph 4 45 mph 9 What is the time-mean speed and space-mean speed for this traffic stream? (B) You notice that 53% of the headways are 8 seconds or...
2. Studies show that on a specific northbound section of a highway the speed-density relationship is:...
2. Studies show that on a specific northbound section of a highway the speed-density relationship is: u= u(1-(k/k;) -5) The highway's capacity is 3800 veh/h and the jam density is 140 veh/mi. What is the speed of the traffic at capacity, and what is the free-flow speed?
Traffic flow on a one-lane road section (no passing is allowed) has the capacity of 1,000...
Traffic flow on a one-lane road section (no passing is allowed) has the capacity of 1,000 vehicles/hour and free-flow speed of 40 km/hour. There exists a railway grade crossing at the end of the road section. On one day, a train is passing through the crossing and the gate is closed. Consequently the vehicles are required to stop behind the gate while the train is passing. Three minutes later, the gate is opened and the vehicles immediately start moving again....
Five-minute average speed in km/h and flow rate in veh/h during 12 hours were collected from...
Five-minute average speed in km/h and flow rate in veh/h during 12 hours were collected from a section of the eastbound lanes of Highway 401 in Toronto. The collected data were plotted to form the scatter diagram shown in the figure below. A curve was drawn to describe the general relationship between speed and flow rate q as shown in the figure. 120 300 Speed km/h 60 1000 Flow Rate vel (a) From the above speed-flow rate curve, determine the...
Consider a freeway segment with capacity of 8000 veh/hr, free-flow speed of 70 mph, and jam...
Consider a freeway segment with capacity of 8000 veh/hr, free-flow speed of 70 mph, and jam density of 200 veh/mi. The demand of this segment is constant at 7800 vel/hr. During the first hour of the hour morning peak, merging traffic entering from the on-ramp has priority thus it restricts the number vehicles that can pass through to 7500 veh/hr. This restriction ends after the first hour of the morning peak. a) Calculate the maximum excess accumulation b) Calculate the...
Studies have shown that the traffic flow on a two-lane road adjacent to a school eenshields...
Studies have shown that the traffic flow on a two-lane road adjacent to a school eenshields model. A length of 0.5 mi adjacent to a school is 6) (2 0 pts) can be described by the G described as a school zone (see Figure below). The school zone operates for only 20 min. Data collected at the site when the school zone is in operation are given below Section A 0.5 mile Section C Section B School Zone Determine the...
Problem 3 (20 points) The traffic flow on a highway is al 1800 veh/hr with speed of ul 60 kmhr. A...
Problem 3 (20 points) The traffic flow on a highway is al 1800 veh/hr with speed of ul 60 kmhr. As the an accident, the road is blocked. The density in the queue is k2-2 50 veh/km (jam density) a) What is the speed of the shockwave formed? (8 points) b) What is the rate at which the queue grows, in units of vehicles per hour? C 12 points) 120
Problem 3 (20 points) The traffic flow on a highway...
5. Traffic on Route 15 south of Selinsgrove was observed at two different times. The first observation found a flow rate of 1,863 vehicles per hour per lane and a density of 85 vehicles per mile. The second observation found a flow rate of 1,050 vehicles per hour per lane and a density of 25 vehicles per mile. Using this data, compute the following: a. For both observations, determine the vehicle speed [mph] and the time headway [sec] b. If...
Please clearly show all steps. Answers are in red.
On a specific westbound section of highway, studies show that the speed-density relationship is: 1. 3.6 It is known that the capacity is 3600 veh/h and the jam density is 215 veh/mi. a. What is the density at the point of maximum flow? 140.7 veh/mi b. What is the spacing between vehicles at this density? 19.20 ft/veh Assume an average vehicle length of 220 inches c. What is the space-mean speed...
2. Studies show that on a specific northbound section of a highway the speed-density relationship is: u= u(1-(k/k;) -5) The highway's capacity is 3800 veh/h and the jam density is 140 veh/mi. What is the speed of the traffic at capacity, and what is the free-flow speed?
Traffic flow on a one-lane road section (no passing is allowed) has the capacity of 1,000 vehicles/hour and free-flow speed of 40 km/hour. There exists a railway grade crossing at the end of the road section. On one day, a train is passing through the crossing and the gate is closed. Consequently the vehicles are required to stop behind the gate while the train is passing. Three minutes later, the gate is opened and the vehicles immediately start moving again....
Five-minute average speed in km/h and flow rate in veh/h during 12 hours were collected from a section of the eastbound lanes of Highway 401 in Toronto. The collected data were plotted to form the scatter diagram shown in the figure below. A curve was drawn to describe the general relationship between speed and flow rate q as shown in the figure. 120 300 Speed km/h 60 1000 Flow Rate vel (a) From the above speed-flow rate curve, determine the...
Consider a freeway segment with capacity of 8000 veh/hr, free-flow speed of 70 mph, and jam density of 200 veh/mi. The demand of this segment is constant at 7800 vel/hr. During the first hour of the hour morning peak, merging traffic entering from the on-ramp has priority thus it restricts the number vehicles that can pass through to 7500 veh/hr. This restriction ends after the first hour of the morning peak. a) Calculate the maximum excess accumulation b) Calculate the...
Studies have shown that the traffic flow on a two-lane road adjacent to a school eenshields model. A length of 0.5 mi adjacent to a school is 6) (2 0 pts) can be described by the G described as a school zone (see Figure below). The school zone operates for only 20 min. Data collected at the site when the school zone is in operation are given below Section A 0.5 mile Section C Section B School Zone Determine the...
Problem 3 (20 points) The traffic flow on a highway is al 1800 veh/hr with speed of ul 60 kmhr. As the an accident, the road is blocked. The density in the queue is k2-2 50 veh/km (jam density) a) What is the speed of the shockwave formed? (8 points) b) What is the rate at which the queue grows, in units of vehicles per hour? C 12 points) 120
Problem 3 (20 points) The traffic flow on a highway...
