A capacitor has a capacitance of 12 micro-farads without a dielectric while connected to a 5...

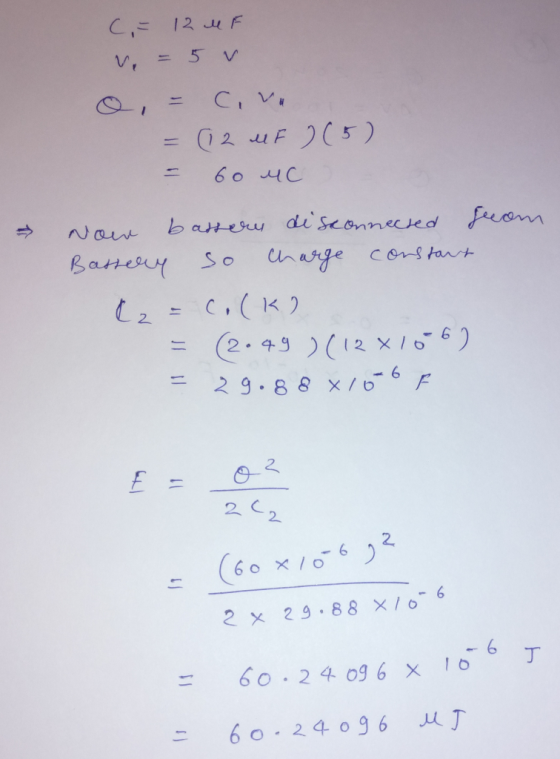

A capacitor has a capacitance of 12 micro-farads without a dielectric while connected to a 5 volt battery. The capacitor is then disconnected and a dielectric with a dielectric constant of 2.49 is inserted between the plates of the capacitor. What is the stored energy, in micro-joules, of the capacitor after it has been disconnected from the battery and the dielectric has been inserted?
Homework Answers
Add Answer to:
A capacitor has a capacitance of 12 micro-farads without a
dielectric while connected to a 5...
A capacitor has a capacitance of 49 micro-farads without a dielectric while connected to a 20...
A capacitor has a capacitance of 49 micro-farads without a dielectric while connected to a 20 volt battery. Then the distance between the plates is decreased by a factor of 5 and a dielectric with a dielectric constant of 2.29 is inserted between the plates of the capacitor while still connected to the same battery. What is voltage, in volts, across the capacitor after the dielectric and the distance between the plates have been changed?
A capacitor has a capacitance of 27 micro-farads without a dielectric while connected to a 23...
A capacitor has a capacitance of 27 micro-farads without a dielectric while connected to a 23 volt battery. Then the distance between the plates is decreased by a factor of 4 and a dielectric with a dielectric constant of 2.58 is inserted between the plates of the capacitor while still connected to the same battery. What is voltage, in volts, across the capacitor after the dielectric and the distance between the plates have been changed?
2) A 9 volt battery is connected to a parallel plate capacitor with an initial capacitance...
2) A 9 volt battery is connected to a parallel plate capacitor with an initial capacitance of 5 micro-farads without a dielectric. While still connected to the battery, the sheets are moved a factor of 6 times further apart and a dielectric with a dielectric constant of 1.8 is inserted between the sheets. Then, the battery is disconnected, and after the battery is disconnected, the dielectric is removed and the sheets are brought a factor of 4 times closer together....
2) A 9 volt battery is connected to a parallel plate capacitor with an initial capacitance...
2) A 9 volt battery is connected to a parallel plate capacitor with an initial capacitance of 10 micro-farads without a dielectric. While still connected to the battery, the sheets are moved a factor of 6 times further apart and a dielectric with a dielectric constant of 1.4 is inserted between the sheets. Then, the battery is disconnected, and after the battery is disconnected, the dielectric is removed and the sheets are brought a factor of 2 times closer together....
2) A 8 volt battery is connected to a parallel plate capacitor with an initial capacitance...
2) A 8 volt battery is connected to a parallel plate capacitor with an initial capacitance of 7 micro-farads without a dielectric. While still connected to the battery, the sheets are moved a factor of 8 times further apart and a dielectric with a dielectric constant of 1.7 is inserted between the sheets. Then, the battery is disconnected, and after the battery is disconnected, the dielectric is removed and the sheets are brought a factor of 2 times closer together....
A capacitor is connected to a 7 volt battery which is initially does not have a...
A capacitor is connected to a 7 volt battery which is initially does not have a dielectric. The battery is disconnected, the plates are moved further apart by a factor of 3, and a dielectric of 1.9 is inserted between its plates. The stored energy in this configuration is 400 micro-joules. What was the original value of the capacitance (of the capacitor) in micro-farads? That is, the capacitance when connected to the battery without a dielectric.
A capacitor is connected to a 6 volt battery which is initially does not have a...
A capacitor is connected to a 6 volt battery which is initially does not have a dielectric. The battery is disconnected, the plates are moved further apart by a factor of 6, and a dielectric of 2.08 is inserted between its plates. The stored energy in this configuration is 455 micro-joules. What was the original value of the capacitance (of the capacitor) in micro-farads? That is, the capacitance when connected to the battery without a dielectric.
A 2 micro-farad capacitor, without a dielectric, is connected to a 19 volt battery. While still...
A 2 micro-farad capacitor, without a dielectric, is connected to a 19 volt battery. While still connected to the battery, the plates are brought a factor of 3 times closer together. What is the capacitance of the capacitor, in micro-farads, in the final position?
5) Three capacitors, all initially without any dielectrics inserted, of C1 = 2 micro-farads, C2 =...
5) Three capacitors, all initially without any dielectrics inserted, of C1 = 2 micro-farads, C2 = 7 micro-farads, and C3 = 11 micro-farads, are connected purely in series to a battery and the total stored energy of all three capacitors is 208 micro-joules. Then, the plates of C1 are brought closer by a factor of 2 and a dielectric with a dielectric constant of 1.8 is inserted into C2 while still connected in series to the same battery. (C3 does...
A capacitor of 16 micro-farads is connected to a 23 volt battery. The distance between the...
A capacitor of 16 micro-farads is connected to a 23 volt battery. The distance between the plates of the capacitor is reduced by a factor of 3.5 while the capacitor is still connected to the battery. What is the capacitance of the capacitor after the distance between the plates is changed, in micro-farads?
2) A 9 volt battery is connected to a parallel plate capacitor with an initial capacitance of 5 micro-farads without a dielectric. While still connected to the battery, the sheets are moved a factor of 6 times further apart and a dielectric with a dielectric constant of 1.8 is inserted between the sheets. Then, the battery is disconnected, and after the battery is disconnected, the dielectric is removed and the sheets are brought a factor of 4 times closer together....
