A cube with 1.0-m sides located such that 0 ≤ x ≤ 1.0 m, 0 ≤...

A cube with 1.0-m sides located such that 0 ≤ x ≤ 1.0 m, 0 ≤ y ≤ 1.0 m, 0 ≤ z ≤ 1.0 m. In the cube, the electric field is not uniform and is given by the expression:

E(x) = (2.0(N/C) + 1.5x(N/(C*m)))(i hat)

How much charge is inside the cube?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

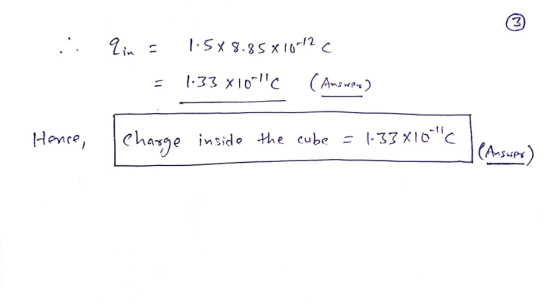

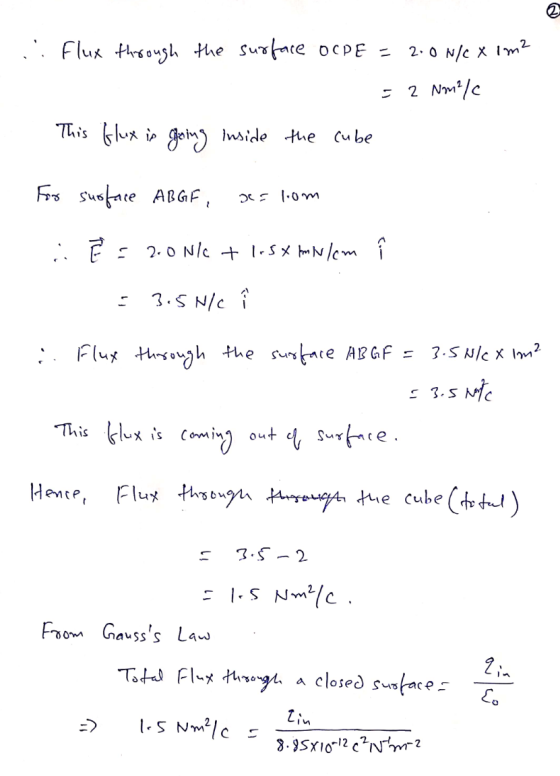

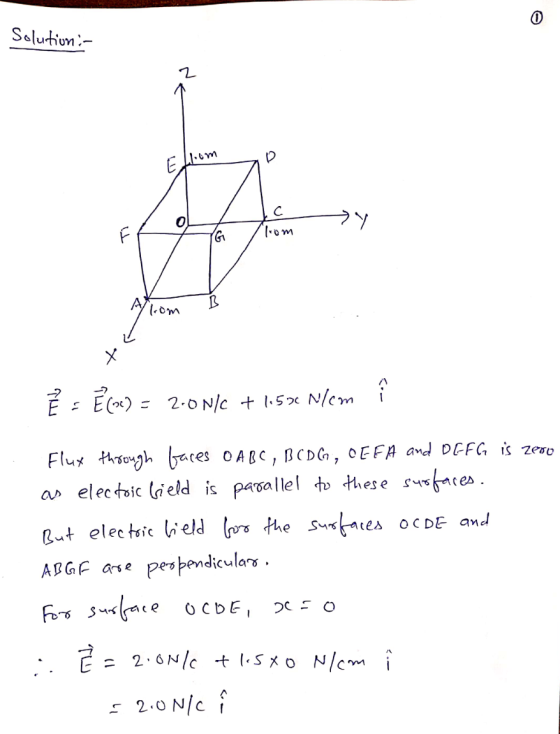

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A cube with 1.0-m sides located such that 0 ≤ x ≤ 1.0 m, 0 ≤...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Constants Part A A cube has sides of length L 0.370 m It is placed with...

    Constants Part A A cube has sides of length L 0.370 m It is placed with one corner at the origin as shown in the figure(Figure 1). The electric field is not uniform but is given by E-(-4.72 N/(C-m) )zi +(2.91 N/(C ) )zk Find the electric flux through each of the six cube faces S,S2, S3, S4,S,, and S Enter your answers in ascending order separated by commas (N/C).m2 Submit Part B Find the total electric charge inside the...

  • ? 47 points | Previous Answers YF13 22 P034 A cube has sides of length L 0.120 m. It is placed with one corner at th...

    ? 47 points | Previous Answers YF13 22 P034 A cube has sides of length L 0.120 m. It is placed with one corner at the origin as shown in the figure below. The electric field is not uniform but is given by y Ntes O =(-6.00 N/C m)xi + (2.50 N/C m)k S (lop) S (hack) S (left side) L S, (right side S, (boton) S (front) (a) Find the electric flux through each of the six cube faces...

  • A cube with sides of 33.0 cm is placed in a nonuniform electric field E(x, y,...

    A cube with sides of 33.0 cm is placed in a nonuniform electric field E(x, y, z) = −3.0xi + 5.0yj + 4.0zk, where x, y, and z are measured in meters and E is in N/C. Determine the electric flux through each of the six faces of the cube, assuming the cube has a corner at the origin and sides along the x, y, and z axes. face at x = 0 face at x = 33.0 cm face...

  • A cube has sides of length L 0.350 m. It is placed with one corner at the origin as shown in the figure (Figure 1).

    A cube has sides of length L 0.350 m. It is placed with one corner at the origin as shown in the figure (Figure 1). The electric field is not uniform but is given by E=  (-4.11 N/(C.m))xi +(2.88 N/(C.m) )zk.Part AFind the electric flux through each of the six cube faces S1, S2, S3, S4, S, and S6. Part B Find the total electric charge inside the cube.

  • A cube has sides of length L 0.350 m. It is placed with one corner at...

    A cube has sides of length L 0.350 m. It is placed with one corner at the origin as shown in the figure (Figure 1). The electric field is not uniform but is given by E -5.13 N/(C m) i+(204 N/(C m) )zk. Part A Find the electric flux through each of the six cube faces S1, S2, S3, S4, S5, and Se Enter your answers in ascending order separated by commas ? (N/C) m2 Фе Previous Answers Request Answer...

  • A metal cube with sides of length a is moving at velocity vec{v}=v_0\hat{y} across a uniform...

    A metal cube with sides of length a is moving at velocity vec{v}=v_0\hat{y} across a uniform magnetic field \vec{B}=B_0\hat{z}. The cube is oriented so that four of its edges areparallel to its direction of motion (i.e., the normal vector of twofaces are parallel to the direction of motion). View Figure Find E_vec, the electric field inside the cube. Now, instead of electrons, suppose that the free charges havepositive charge q.Examples include "holes" in semiconductors and positive ions inliquids, each of...

  • Flux through a cube: The electric field, E, in a cube of side a 0.70 m...

    Flux through a cube: The electric field, E, in a cube of side a 0.70 m is given by where Eo is a scalar with valueE-0.125 N/C. The sides of the cube lie along the z, y, and z axes as shown in the figure below. Determine the net charge Qend in nanocoulombs (nC), enclosed by cube. DC

  • The cube below has edge length 0.2 m. A horizontal electric field is perpendicular to the...

    The cube below has edge length 0.2 m. A horizontal electric field is perpendicular to the left and right faces of the cube and is parallel to the other faces. At the left face E 6 x 10 N/C and at the right face E 4 x 10 N/C. How much charge is contained inside the cube? 7. Is it positive or negative? 8. Using the Gauss's Law, find the expression of the electric field at a distance r from...

  • Consider a cube. On 5 Sides

    Consider a cube.   On 5 sides of the cube, there is an electric field that comes out perpendicular to that side, of value E.(a) If there is no charge inside the cube, what is the field (direction and magnitude) perpendicular to the remaining side?(b) If there is a charge Q inside the cube, how does your answer to (a) change?

  • A cube has sides of length L-U.270 m. lt is placed with one corner at the...

    A cube has sides of length L-U.270 m. lt is placed with one corner at the origin as shown in the figure below. I he electric field is not uniform but is given by E-(-6.00 N/C·m)n + (1.50 N/C·m)2k. (top) S (back) S (right side) (left side) S, (bottom) Ss (front) (a) Find the electric flux through each of the six cube faces S1,s2,s3, s4, ss, and S6. (N/C) 、m2 (N/C) m2 (N/C) m2 (N/C)·m2 (N/C) . rr,2 (b) Find...
