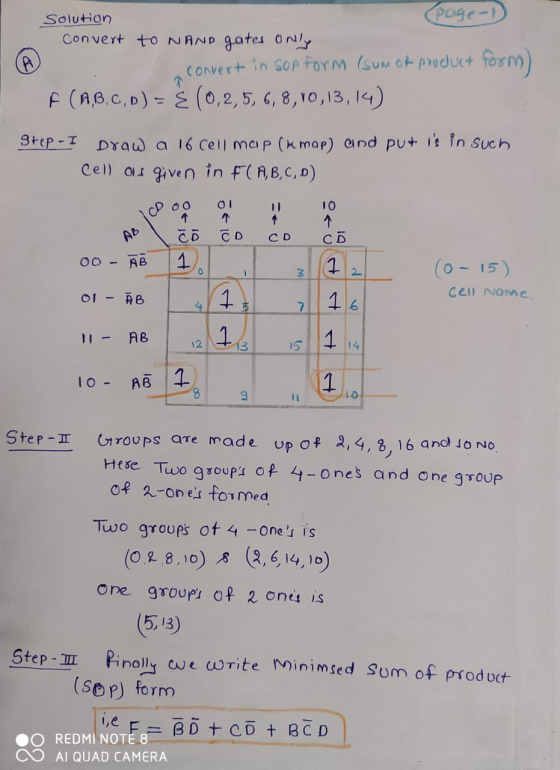

A. Convert to NAND gates only.

F(A,B,C,D) = ∑(0,2,5,6,8,10,13,14)

answer is B'D'+CD'+BC'D

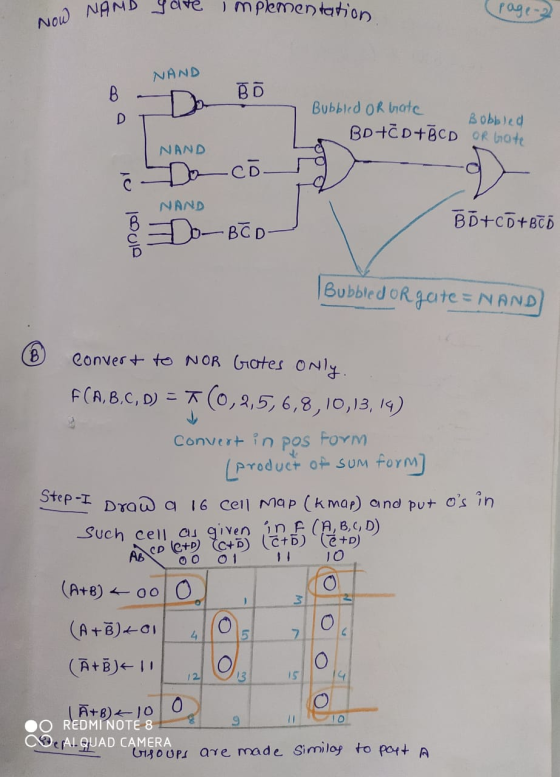

can you show how to convert to NAND gates only

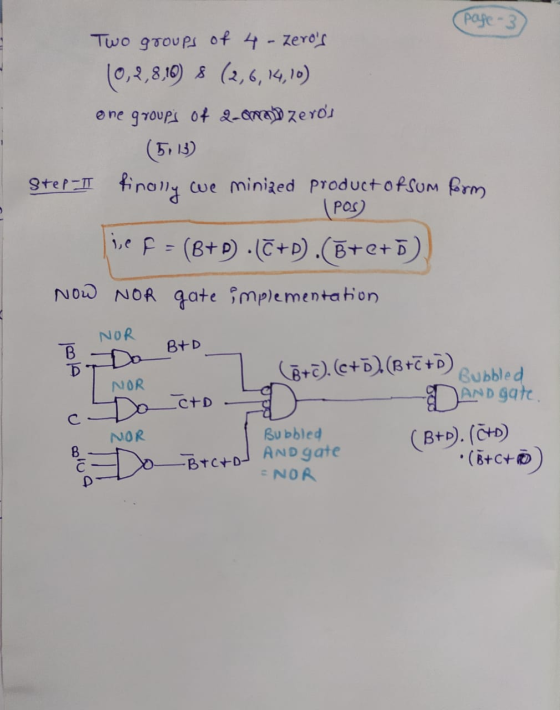

B. Convert to NOR gates only and show how to compliment it.

F(A,B,C,D) = ∏(0,2,5,6,8,10,13,14)

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
