A cable TV transmission line with characteristic impedance Z0 = 75 Ω is terminated with an...
A cable TV transmission line with characteristic impedance Z0 = 75 Ω is terminated with an “ideal” 25 Ω resistance. What is the reflection coefficient ( magnitude and angle in degrees ) at a point d = λ/2 away from the load?

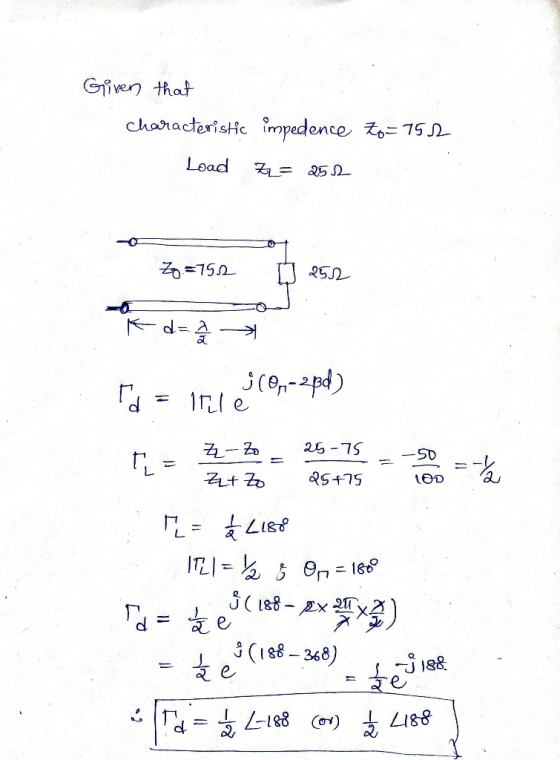

Гd = λ / 2 = ------------------------------ Ω ( Half of Landa )
Homework Answers
Add Answer to:
A cable TV transmission line with characteristic impedance
Z0 = 75 Ω is terminated with an...
Question 4 (a) The input impedance of a lossless air-core transmission line with characteristic impedance Ro. phase constant B and length I terminated in an impedance Z, is given by R,+Z, tan( i....
Question 4 (a) The input impedance of a lossless air-core transmission line with characteristic impedance Ro. phase constant B and length I terminated in an impedance Z, is given by R,+Z, tan( i. Determine the length of an open circuit 50Ω line required to create a 0.1 nH inductor at a frequency of 10 GHz. (6 marks) ii. Determine the input impedance of the line in part () if the open circuit is changed to a short circuit. (3 marks)...
Electromagnetism: A transmission line has a characteristic impedance Z0 = 50 Ω and attenuation 3 dB/100m...
Electromagnetism: A transmission line has a characteristic impedance Z0 = 50 Ω and attenuation 3 dB/100m (α = 0.345 Np/100m). Assume that the velocity factor is 1.0 (i.e. the propagation speed along the line is equal to the speed of light). The line is 500 m long and a load resistance, RL = 50 Ω is connected to one end of the line. A sinusoidal voltage source is connected to the line at the other end, with a peak voltage...
3.15-3 A lossless coaxial cable having characteristic impedance 50 is terminated bya load with impedance 25+525...
3.15-3 A lossless coaxial cable having characteristic impedance 50 is terminated bya load with impedance 25+525 12. (a) What is the voltage reflection coefficient at the load? (b) Plot the input impedance for transmission line lengths from 0 to 0.15A Please plot as a single curve in the complex plane, with the horizontal axis as the real component and the vertical axis as the imaginary component. Indicate at each end of the curve the associated lengths. (c) For what lengths...
A 75 coaxial transmission line has a length of 2.0 cm and is terminated with a...
A 75 coaxial transmission line has a length of 2.0 cm and is terminated with a load impedance of 37.575 If the relative permittivity of the line is 2.56 and the frequency is 3.0 GHz, find the input impedance to the line, the reflection coefficient at the load, the reflection coefficient at the input, and the SWR on the line.
1. A coaxial cable of characteristic impedance Zo 75 Q is terminated impedance of Z 25+...
1. A coaxial cable of characteristic impedance Zo 75 Q is terminated impedance of Z 25+ j45 0. Using the Smith Chart, find the input impedance of the line for the following frequencies and cable lengths (d), assuming the propagation veloci is 77% of the speed of light: by a load a) f 1 GHz and d50 cm b) f 5 GHz and d 25 cm
answer number 3 and 4 Problem 7. Transmission Lines The figure below shows a transmission line with a characteristic impedance Z,-50 Ω, connected to a single frequency generator with an internal i...
answer number 3 and 4
Problem 7. Transmission Lines The figure below shows a transmission line with a characteristic impedance Z,-50 Ω, connected to a single frequency generator with an internal impedance R,-50 C (not shown), and terminated in a purely resistive load RL 50 2. At the frequency of the generator, the wavelength of the transmission line is λ = 2 m. At a distance dl-1.25 m away from the load, a shorted stub is connected via a tee....
2.2 A lossless transmission line of length 0.3A is terminated with a load impedance as shown...
2.2 A lossless transmission line of length 0.3A is terminated with a load impedance as shown below. Find the reflection cocfficient at the load, the SWR on the line, the return loss, and the input impedance to the linc. に0.3A ス14-40+/20 Ω
Problem 2: (10 points) Current standing wave on a transmission line with a characteristic impedance of...
Problem 2: (10 points) Current standing wave on a transmission line with a characteristic impedance of 5012 is shown below: ||OI 100mA M 10mA (a) Calculate the magnitude of the reflection coefficient at the load end. (b) Calculate the value of load impedance placed at the end of the transmission line.
SET 1 1. A lossless transmission line of length 1-0.3? is terminated with complex load impedance...
SET 1 1. A lossless transmission line of length 1-0.3? is terminated with complex load impedance ZL- 30 + j20 ? and characteristic impedance Z0-75 ?. Using formulae, calculate (7 Marks) (4 Marks) (5 Marks) (14 Marks) i. The input impedance to the line Zin in ?; The input admittance to the line Yin in S; i The distance to first minimum from the load; Use Smith Chart to all above parameters iv.
Consider a 50 Ω lossless transmission line terminated in a load impedance ?? = (100 −...
Consider a 50 Ω lossless transmission line terminated in a load impedance ?? = (100 − ?50) Ω. Find ?(?) and Γ(?) at a distance ? = 0.1λ.
Question 4 (a) The input impedance of a lossless air-core transmission line with characteristic impedance Ro. phase constant B and length I terminated in an impedance Z, is given by R,+Z, tan( i. Determine the length of an open circuit 50Ω line required to create a 0.1 nH inductor at a frequency of 10 GHz. (6 marks) ii. Determine the input impedance of the line in part () if the open circuit is changed to a short circuit. (3 marks)...
3.15-3 A lossless coaxial cable having characteristic impedance 50 is terminated bya load with impedance 25+525 12. (a) What is the voltage reflection coefficient at the load? (b) Plot the input impedance for transmission line lengths from 0 to 0.15A Please plot as a single curve in the complex plane, with the horizontal axis as the real component and the vertical axis as the imaginary component. Indicate at each end of the curve the associated lengths. (c) For what lengths...
A 75 coaxial transmission line has a length of 2.0 cm and is terminated with a load impedance of 37.575 If the relative permittivity of the line is 2.56 and the frequency is 3.0 GHz, find the input impedance to the line, the reflection coefficient at the load, the reflection coefficient at the input, and the SWR on the line.
1. A coaxial cable of characteristic impedance Zo 75 Q is terminated impedance of Z 25+ j45 0. Using the Smith Chart, find the input impedance of the line for the following frequencies and cable lengths (d), assuming the propagation veloci is 77% of the speed of light: by a load a) f 1 GHz and d50 cm b) f 5 GHz and d 25 cm
answer number 3 and 4
Problem 7. Transmission Lines The figure below shows a transmission line with a characteristic impedance Z,-50 Ω, connected to a single frequency generator with an internal impedance R,-50 C (not shown), and terminated in a purely resistive load RL 50 2. At the frequency of the generator, the wavelength of the transmission line is λ = 2 m. At a distance dl-1.25 m away from the load, a shorted stub is connected via a tee....
2.2 A lossless transmission line of length 0.3A is terminated with a load impedance as shown below. Find the reflection cocfficient at the load, the SWR on the line, the return loss, and the input impedance to the linc. に0.3A ス14-40+/20 Ω
Problem 2: (10 points) Current standing wave on a transmission line with a characteristic impedance of 5012 is shown below: ||OI 100mA M 10mA (a) Calculate the magnitude of the reflection coefficient at the load end. (b) Calculate the value of load impedance placed at the end of the transmission line.
SET 1 1. A lossless transmission line of length 1-0.3? is terminated with complex load impedance ZL- 30 + j20 ? and characteristic impedance Z0-75 ?. Using formulae, calculate (7 Marks) (4 Marks) (5 Marks) (14 Marks) i. The input impedance to the line Zin in ?; The input admittance to the line Yin in S; i The distance to first minimum from the load; Use Smith Chart to all above parameters iv.
