When butane (C4H10) is burned in air, it reacts with the oxygen (O2) in the air...
When butane (C4H10) is burned in air, it reacts with the oxygen (O2) in the air to produce carbon dioxide (CO2) and water (H2O). The unbalanced equation for the chemical reaction is shown below. C4H10 + O2 à CO2 + H2O Butane is fed to an experimental combustion chamber at the rate of 100 grams per hour. Assuming that the combustion chamber is able to completely burn the butane, what is the required mass flow rate of air? Assume that the air is 79% (mol) nitrogen and 21% (mol) oxygen. Air may be considered a mixture of oxygen and nitrogen only.

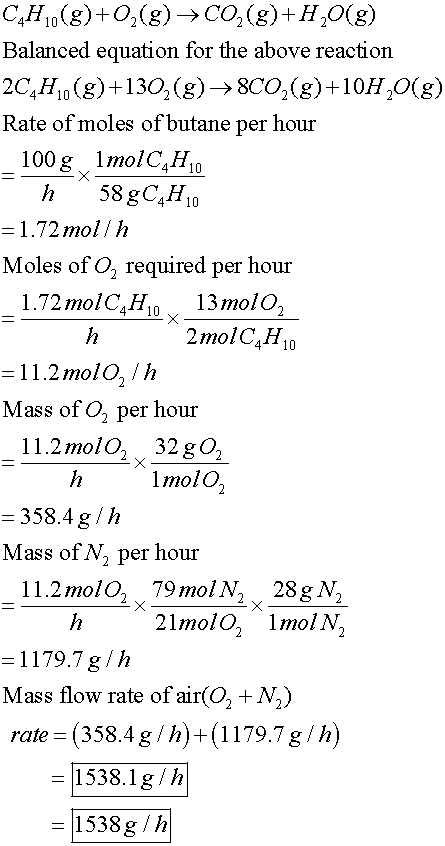

Homework Answers
Add Answer to:
When butane (C4H10) is burned in air, it reacts with the oxygen
(O2) in the air...
The substances butane (C4H10) and oxygen gas react to form carbon dioxide and water. Unbalanced equation:...
The substances butane (C4H10) and oxygen gas react to form carbon dioxide and water. Unbalanced equation: C4H10 (g) + O2 (g) CO2 (g) + H2O (g) In one reaction, 48.0 g of H2O is produced. What amount (in mol) of O2 was consumed? What mass (in grams) of CO2 is produced? mol O2 consumed g CO2 produced
Consider the following combustion reaction of butane (C4H10): 13 C.H. + -0, 400, +5H,0 2 a)...
Consider the following combustion reaction of butane (C4H10): 13 C.H. + -0, 400, +5H,0 2 a) Case I: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the reactor contains...
Consider the following combustion reaction of butane (C4H10): 13 C.H. + 02 → 4C0, +5H,0 2...
Consider the following combustion reaction of butane (C4H10): 13 C.H. + 02 → 4C0, +5H,0 2 a) Case l: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the reactor...
Question 3 Consider the following combustion reaction of butane (C4H10): C,H,+ 13 02 2 → 4C0,...
Question 3 Consider the following combustion reaction of butane (C4H10): C,H,+ 13 02 2 → 4C0, +5H,0 a) Case I: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the...
Butane, C4H10, reacts with oxygen, O2, to form water, H2O, and carbon dioxide, CO2, as shown...
Butane, C4H10, reacts with oxygen, O2, to form water, H2O, and carbon dioxide, CO2, as shown in the following chemical equation: 2C4H10(g)+13O2(g)→10H2O(g)+8CO2(g) Calculate the mass of butane needed to produce 74.2 g of carbon dioxide. Please show all steps. Thank you.
Butane, C4H10, reacts with oxygen, O2, to form water, H2O, and carbon dioxide, CO2, as shown...
Butane, C4H10, reacts with oxygen, O2, to form water, H2O, and carbon dioxide, CO2, as shown in the following chemical equation: 2C4H10(g)+13O2(g)→10H2O(g)+8CO2(g) Calculate the mass of water produced when 8.07 g of butane reacts with excess oxygen. Please show all steps. Thank you.
Calculate how many grams of butane (C4H10) form when 1.11 g of O2 reacts completely given...
Calculate how many grams of butane (C4H10) form when 1.11 g of O2 reacts completely given the following equation: 2 C4H10 (g) + 13 O2 (g) → 8 CO2 (g) + 10 H2O (g)
Gas n-Butane(C4H10) is burned with 200% theoretical air
Gas n-Butane(C4H10) is burned with 200% theoretical air. The product of combustion exits at 1000k. Determine the heat transfer from the combustion chamber per kmole of fuel.
Butane (C4H10) burns completely with 190% of theoretical air entering at 74°F, 1 atm, 50% relativ...
Butane (C4H10) burns completely with 190% of theoretical air entering at 74°F, 1 atm, 50% relative humidity. The dry air component can be modeled as 21% O2 and 79% № on a molar basis. The combustion products leave at 1 atm. For complete combustion of butane(C4H1o) with the theoretical amount of air, what is the number of moles of oxygen (02) per mole of fuel?
Butane (C4H10) burns completely with 190% of theoretical air entering at 74°F, 1 atm, 50%...
Gaseous butane CH3CH22CH3 reacts with gaseous oxygen gas O2 to produce gaseous carbon dioxide CO2 and...
Gaseous butane CH3CH22CH3 reacts with gaseous oxygen gas O2 to produce gaseous carbon dioxide CO2 and gaseous water H2O If 1.15g of carbon dioxide is produced from the reaction of 1.2g of butane and 2.9g of oxygen gas, calculate the percent yield of carbon dioxide. Be sure your answer has the correct number of significant digits in it.
Consider the following combustion reaction of butane (C4H10): 13 C.H. + -0, 400, +5H,0 2 a) Case I: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the reactor contains...
Consider the following combustion reaction of butane (C4H10): 13 C.H. + 02 → 4C0, +5H,0 2 a) Case l: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the reactor...
Question 3 Consider the following combustion reaction of butane (C4H10): C,H,+ 13 02 2 → 4C0, +5H,0 a) Case I: 25 kmol/h of C4H10 and 1750 kmol/h of air is fed to the reactor. Determine the percentage excess air used. You may assume that the air contains 21% oxygen (O2) and 79% nitrogen (N2) (on a mole basis). [15 marks] b) Case II: 125 kmol/h of C4H10 and oxygen (O2) is fed to the reactor. The product stream leaving the...
Butane (C4H10) burns completely with 190% of theoretical air entering at 74°F, 1 atm, 50% relative humidity. The dry air component can be modeled as 21% O2 and 79% № on a molar basis. The combustion products leave at 1 atm. For complete combustion of butane(C4H1o) with the theoretical amount of air, what is the number of moles of oxygen (02) per mole of fuel?
Butane (C4H10) burns completely with 190% of theoretical air entering at 74°F, 1 atm, 50%...
