Use JK, D, and T Flip Flops to design a sequential circuit that detects the sequence...
Using D flip-flops, design a Moore circuit that detects the sequence 1100. The circuit outputs I when the sequence 1100 is received and outputs 0 otherwise. Draw the state diagram and state table, and find the D flip-flops input equations and the output equation x- Z Clock Hint: X: 01011 00011001100011 Z: 0 0 0 0 0 0 100000000000
Question #2. Design of a Sequential Circuit: A SEQUENCE DETECTOR that detects the sequence 10 must be designed whose present output z(k) is set to one when the past input u(k-1) is one and the present input u(k) is zero, where for the other three possible combinations of the input pair u(k-1), u(k) the present output z(k) is set to zero. The state diagram for a sequential circuit that detects the input sequence 10 discussed above is given below: AA...

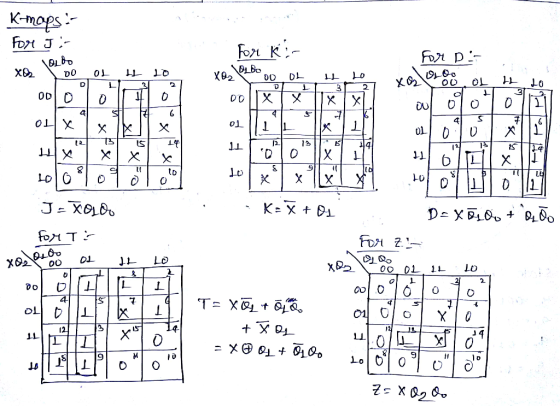

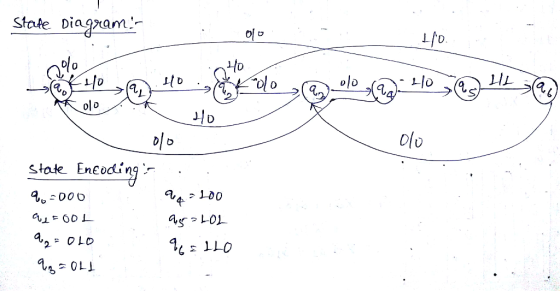

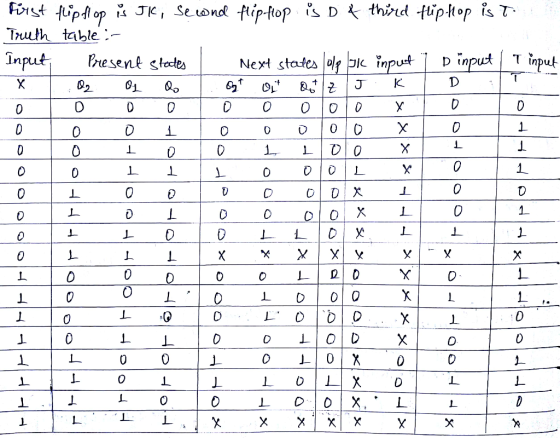

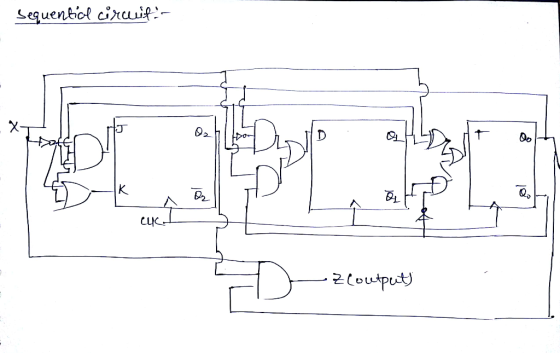

Design a sequential circuit for a sequence detector that detects the sequence 10011. A continuous bit stream is fed at the input of the circuit. Every time the circuit detects the sequence 10011, an output line is made HIGH a) Sketch Mealy FSM for the sequence detector. b) Tabulate the state table c) Using K-maps, write down the simplified Boolean expressions of the flip-flops input equations using T flip-flops d) Sketch the logic circuit diagram
ECE 260 HW 7 NAME 1. A sequential circuit has two JK flip-flops A and B, two inputs X and Y, and one output Z. The flip-flop input equations and circuit output equation are: (a) Draw the sequential circuit (b) Derive the state equations for Q and Q (c) Construct the state/output table (d) Draw the state diagram Note, for JK flip-flop: Q1O+KQ Design a sequential circuit with two JK flip-flops A and B and two inputs E and F....
3. A sequential circuit has 2 JK flip-flops A and B and one input x. The circuit is described by the following flip-flop input equations: (a) Derive the state equations A(t1) and B(t +1) by substituting the input equations for the J and K variables (b) Draw the state diagram of the circuit (c) Design an equivalent circuit using D flip flops, i.e. a sequential circuit that uses D flip flops to implement the state diagram you obtained in part...
digital logic
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping sequences should be detected.(Note : use D flip-flops in your design. Repeat problem 2 for a Mealy-type FSM 2. 3.
Design a sequential circuit for a single-input and single output Moore-type FSM that produces an output of 1 if in the input sequence it detects either 110 patterns. Overlapping...
Q2: A sequential circuit has two JK flip-flops (FF) with outputs A and B and one input x. The circuit is described by the following flip-flop input equations: JA=X KA=B JB = x KB=A' (a) Derive the state equations A (t+1) and B (t+1) by substituting the input equations for the J and K variables in the characteristic equations of JK FF. (b) Construct the state Diagram of the circuit. (5+10-15) pts.
A sequential circuit has three flip-flops A, B, C ; one input x_in ; and one output y_out. The state diagram is shown hereunder. The circuit is to be designed by treating the unused states as don't-care conditions. Analyze the circuit obtained from the design to determine the effect of the unused states (a) Use JK flip-flops in the design. (b) Use T flip-flops in the design.
Design Problem: Use the JK Flip-Flop to design a circuit of a Synchronous Sequential Ring Counter that goes through the following sequence: 9, 8, 7, 13, 0, 11, 2, 5, 10, 14 and repeat ( forward direction ) Note: Your design should account for what happens if the systems starts at one of the unused states. In this scenario, the system should point to 0. The system has only one input, x. If x = 1, then the sequence goes...
Design a Mealy sequential circuit with one input X and one output Y that recognizes the sequence 1101 anywhere on the input sequence X. When the circuit recognizes the sequence it asserts its output Z high. Design the circuit with T flip flops.
