The elementary gas-phase reaction (CH3)3COOC(CH3)3 → C2H6 + 2CH3COCH3 A → B + 2C is carried...

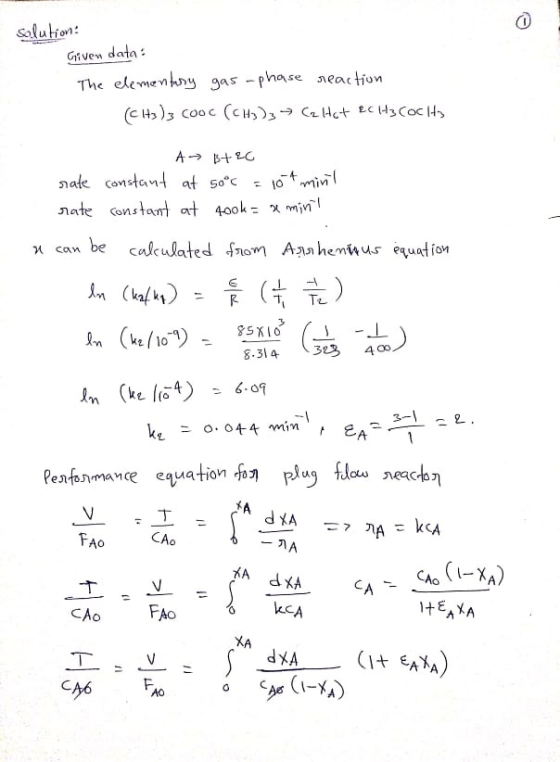

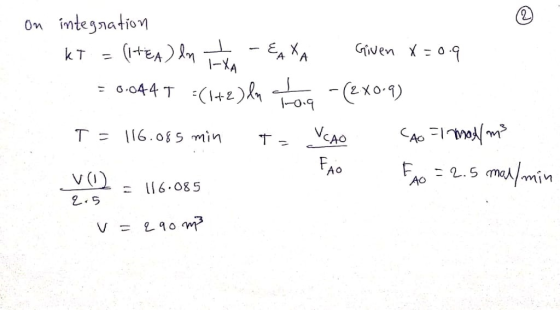

The elementary gas-phase reaction (CH3)3COOC(CH3)3 → C2H6 + 2CH3COCH3 A → B + 2C is carried out isothermally at 400 K in a flow reactor with no pressure drop. The reaction rate constant at 50°C is 10–4 min–1 and the activation energy is 85 kJ/mol. Pure di-tert-butyl peroxide enters the reactor at 10 atm and 127°C and a molar flow rate of 2.5 mol/min, i.e., FA0 = 2.5 mol/min. (d) There appears to be uniform leakage of Ethane through the sides of the plug-flow reactor. Redesign the tubular reactor as membrane reactor, assuming kc = 0.2 min-1. Find the plug-flow volume for 90% conversion.
Homework Answers
Add Answer to:
The elementary gas-phase reaction (CH3)3COOC(CH3)3 → C2H6 +
2CH3COCH3 A → B + 2C is carried...
Question # 3 (10 points) The isothermal, isobaric elementary gas phase reaction A+B -+ 2C is...
Question # 3 (10 points) The isothermal, isobaric elementary gas phase reaction A+B -+ 2C is performed in a Plug Flow Reactor. The feed contains A-20% and B=80%. The total feed flows at 100 mol/min and 5 m/min. The rate constant, k-0.16m/(mol. min). Calculate the volume of the reactor at 70% conversion of component A for the following cases: a- Case 1: Assume B is an excess reactant b- Case 2: B is NOT an excess reactant C- Compare the...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally at 305K in a packed bed reactor with 100 kg catalyst of particle size 8 mm. The entering pressure is 20 atm and the exit pressure is 2 atm. The feed rate is equal molar in A and B and the flow is in the turbulent flow regime, with FA0-10 mol/min and CA 0.4 mol/dm3. Currently 80% conversion is achieved. a) What would be...
The elementary gas-phase reaction A+B <----> 2C in P11-8B is now continued and carried out in...
The elementary gas-phase reaction A+B <----> 2C in P11-8B
is now continued and carried out in a packed bed reactor. The
entering molar flow rates are Fao=5 mol/s, Fbo= 2Fao, and Fi=2Fao
with Cao=0.2 mol/dm^3. The entering temperature is 325 K and a
coolant fluid is available at 300 K.
P12-9A Algorithm for reaction in a PBR with heat effects and pressure drop he elementary gas-phase reaction A+B 2C in P11-8B is now continued and carried out in packed-bed reactor....
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally...
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally at 227 C in a packed-bed reactor with 100 kg of catalyst. The reaction is first order in A and first order in B. The entering pres- sure was 20 atm and the exit pressure is 1 atm. The feed is equal molar in A onigA and B and the flow is in the turbulent regime with FA0 10 mol/min and CAO= 0.25 mol/dm3....
The elementary gas phase reaction (A <--> 2B) is to be carried out in an adiabatic...
The elementary gas phase reaction (A <--> 2B) is to be carried out in an adiabatic CSTR. The feed which is at a temperature of 27oC, consists of 80% of A and the remainder inerts. The volumetric flow rate entering the reactor at this temperature is 100 l/min. The concentration of A in the feed at 27oC is 0.5 mol/liter. For 80% of the adiabatic equilibrium conversion, calculate the required reactor volume. DATA: CpA=12 J/mol.K; CpB=10 J/mol.K; CpI=15 J/mol.K deltaHrxn=-75000...
3. (a) The elementary gas phase reaction: 2A → 3C takes place in a plug flow...
3. (a) The elementary gas phase reaction: 2A → 3C takes place in a plug flow reactor. The reactor operates isothermally at a temperature of 350 K. The inlet to the reactor is made up from A and inert material. The inlet partial pressures of A and inert material are 10 bar and 20 bar respectively. The rate constant for the reaction is given kr = 1 x 10-6 mmol s1 and the flow rate of incoming A = 2...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
The first order elementary reaction: A + B + C was carried out in a constant...
The first order elementary reaction: A + B + C was carried out in a constant volume batch reactor isothermally at 328 K. The concentrations of species A, CA, were recorded as a function of time, as given in the following table. The activation energy Ea=120 kJ/mol. 0.9 6 t (min) CA (mol/dm) 0 20 0.5 17.4 1.5 12.9 2.2 10.5 4 6.2 15.5 8.3 3.5 Based on integral method: b) Process the data using the above table and the...
Kinetic reactions Please make sure you get the same answers as written and solve all the...
Kinetic reactions
Please make sure you get the same answers as written and
solve all the parts
Thanks in advance
3. The elementary gas-phase reaction A → B + 2C gives a rate constant of 10-4 min-1 at 50°C and has an activation energy of 85 kJ mol1. This reaction is carried out in a flow reactor that is operated isothermally at 127 °C with a negligible pressure drop. The reactor feed is pure A, entering at 127 °C and...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried out in 10 points a non-ideal CSTR which has both bypassing and a dead zone in it. The measured liquid volume in the reactor is 500 dm3 and the volumetric flow rate to the reactor is 10 dm3/min with a concentration of A as Imol/dm3. The reaction rate constant is 0.5 min^-1. a) Calculate the conversion that can be expected in this reactor if...
Question # 3 (10 points) The isothermal, isobaric elementary gas phase reaction A+B -+ 2C is performed in a Plug Flow Reactor. The feed contains A-20% and B=80%. The total feed flows at 100 mol/min and 5 m/min. The rate constant, k-0.16m/(mol. min). Calculate the volume of the reactor at 70% conversion of component A for the following cases: a- Case 1: Assume B is an excess reactant b- Case 2: B is NOT an excess reactant C- Compare the...
The irreversible elementary gas-phase reaction A + B ) C + D is carried out isothermally at 305K in a packed bed reactor with 100 kg catalyst of particle size 8 mm. The entering pressure is 20 atm and the exit pressure is 2 atm. The feed rate is equal molar in A and B and the flow is in the turbulent flow regime, with FA0-10 mol/min and CA 0.4 mol/dm3. Currently 80% conversion is achieved. a) What would be...
The elementary gas-phase reaction A+B <----> 2C in P11-8B
is now continued and carried out in a packed bed reactor. The
entering molar flow rates are Fao=5 mol/s, Fbo= 2Fao, and Fi=2Fao
with Cao=0.2 mol/dm^3. The entering temperature is 325 K and a
coolant fluid is available at 300 K.
P12-9A Algorithm for reaction in a PBR with heat effects and pressure drop he elementary gas-phase reaction A+B 2C in P11-8B is now continued and carried out in packed-bed reactor....
energy il Camor P5-30 Pressure Drop. The gas phase reaction A+B C+D is carried out isothermally at 227 C in a packed-bed reactor with 100 kg of catalyst. The reaction is first order in A and first order in B. The entering pres- sure was 20 atm and the exit pressure is 1 atm. The feed is equal molar in A onigA and B and the flow is in the turbulent regime with FA0 10 mol/min and CAO= 0.25 mol/dm3....
3. (a) The elementary gas phase reaction: 2A → 3C takes place in a plug flow reactor. The reactor operates isothermally at a temperature of 350 K. The inlet to the reactor is made up from A and inert material. The inlet partial pressures of A and inert material are 10 bar and 20 bar respectively. The rate constant for the reaction is given kr = 1 x 10-6 mmol s1 and the flow rate of incoming A = 2...
Question 1: Design of isothermal reactors 30 Marks The irreversible, gas-phase reaction A+B D is to be carried out in an isotherma °C) plug-flow reactor (PFR) at 5.0 atm. The mole fractions of the feed streams are A 0 B 0.50, and inerts 0.30. The activation energy for the above reaction is 80 000 cal/mol. the pressure drop due to fluid friction in the reactor is so small that it can be ignored, perform the following tasks: 2T a s...
The first order elementary reaction: A + B + C was carried out in a constant volume batch reactor isothermally at 328 K. The concentrations of species A, CA, were recorded as a function of time, as given in the following table. The activation energy Ea=120 kJ/mol. 0.9 6 t (min) CA (mol/dm) 0 20 0.5 17.4 1.5 12.9 2.2 10.5 4 6.2 15.5 8.3 3.5 Based on integral method: b) Process the data using the above table and the...
Kinetic reactions
Please make sure you get the same answers as written and
solve all the parts
Thanks in advance
3. The elementary gas-phase reaction A → B + 2C gives a rate constant of 10-4 min-1 at 50°C and has an activation energy of 85 kJ mol1. This reaction is carried out in a flow reactor that is operated isothermally at 127 °C with a negligible pressure drop. The reactor feed is pure A, entering at 127 °C and...
QUESTION 5: 10 marks An elementary aqueous phase reaction A --> B+C is to be carried out in 10 points a non-ideal CSTR which has both bypassing and a dead zone in it. The measured liquid volume in the reactor is 500 dm3 and the volumetric flow rate to the reactor is 10 dm3/min with a concentration of A as Imol/dm3. The reaction rate constant is 0.5 min^-1. a) Calculate the conversion that can be expected in this reactor if...
