Three objects are connected by strings. A 4.41 kg object hangs from a pulley off of...

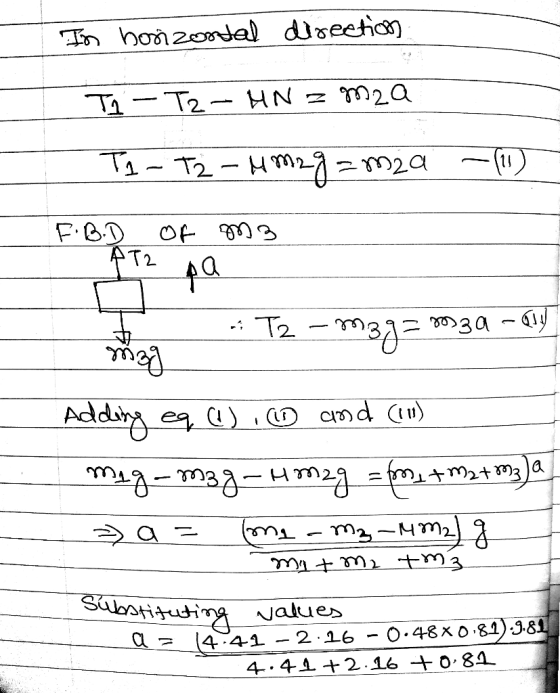

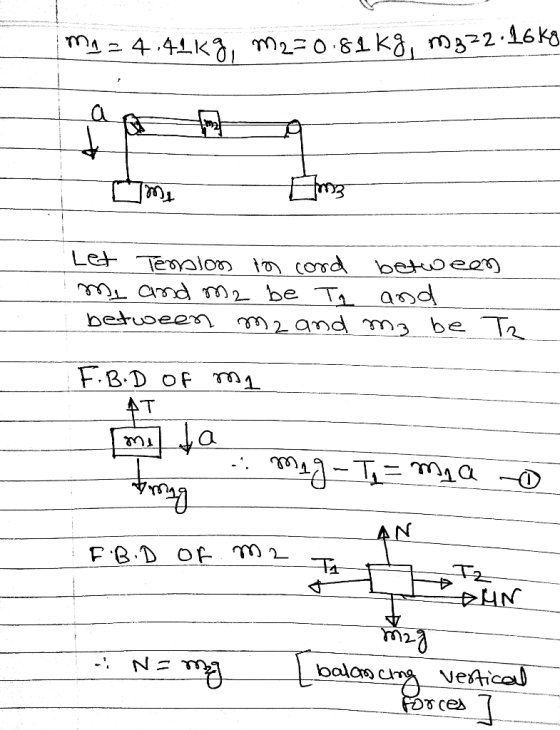

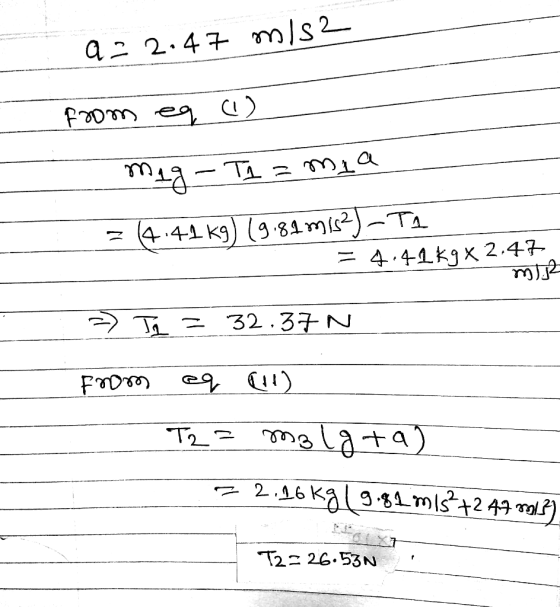

Three objects are connected by strings. A 4.41 kg object hangs from a pulley off of the left side of a table. The string connects the first object to a a 0.81 kg that rests on the table with a coefficient of static friction 0.48. And this object is then attached to another object that hangs off a pulley on the opposite side of the table, this one with a mass of 2.16 kg. (a) What is the acceleration of the system? [Assume right is the +x direction.] (b) What is the tension in the cord connecting the first two objects? (c) What is the tension in the other cord?
Homework Answers
Add Answer to:
Three objects are connected by strings. A 4.41 kg object hangs
from a pulley off of...
Two masses are connected by a massless rope. The mass of object 1 is 5.5 kg,...
Two masses are connected by a massless rope. The mass of object 1 is 5.5 kg, and it rests on a surface with a 1.7 coefficient for static friction (us) and a .90 coefficient for kinetic friction (uk). Object 2 has a mass of 8.3 kg and hangs over the edge of the surface by a frictionless, massless pulley. The two objects begin at rest when object 2 is released to hang freely. A.) Draw a free body diagram for...
A 9.70-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley...
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
Two objects are connected to a cord, and the cord is hung over a pulley connected...
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below mg The masses of the objects are m 17.0 kg and m2 12.0 kg, the mass of the pulley is M 5.00 kg, and the radius of the pulley is R 0.300 m. Object m2 is initially on the floor, and object m, is initially 5.00 m above the floor when it is released from...
Two objects are connected to a cord, and the cord is hung over a pulley connected...
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below. m2 The masses of the objects are m1-18.0 kg and m2-10.0 kg, the mass of the pulley is M-5.00 kg, and the radius of the pulley is R = 0.100 m. Object m2 įs initially on the floor, and object m1 is initially 4.30 m above the floor when it is released from rest. The...
A mass m, = 6.9 kg rests on a frictionless table. It is connected by a massless and frictionless pulley to a second mass m2 =2.4 kg that hangs freely.
A mass m, = 6.9 kg rests on a frictionless table. It is connected by a massless and frictionless pulley to a second mass m2 =2.4 kg that hangs freely. 1) What is the magnitude of the acceleration of block 1? 2) What is the tension in the string?3) Now the table is tilted at an angle of 9= 79' with respect to the vertical. Find the magnitude of the new acceleration of block 1. 4) At what “critical" angle will the blocks NOT...
Three objects are connected by massless wires over a massless frictionless pulley as own in the...
Three objects are connected by massless wires over a massless frictionless pulley as own in the figure. The tension in the wire connecting the 10.0-kg and 15.0-kg objects is 6) measured to be 133 N. What is the tension in wire A? (5 POINTS) 15.00 kg 133 N 10.00 kg
A 9.20-kghanging object is connected by a light, inextensible cord over alight, frictionless pulley...
A 9.20-kg hanging object is connected by a light, inextensible cord over a light, frictionless pulley to a 5.00-kg block that is sliding on a flat table. Taking the coefficient of kinetic friction as 0.158, find the tension in the string.
Three objects are connected by weightless flexible strings as shown in the figure. The pulley...
Three objects are connected by weightless flexible strings as shown in the figure. The pulley has no appreciable mass or friction, and the string connected to theblock on the horizontal bench pulls on it parallel to the bench surface. The coefficients of friction between the bench and the block on it areμs = 0.660 and μk = 0.325. You observe that this system remains at rest. Find (a) the mass of and (b) the friction force on theblock on the...
A 2.00 kg object A is connected with a massless string across a massless, frictionless pulley...
A 2.00 kg object A is connected with a massless string across a massless, frictionless pulley to a 3.00 kg object B. The smaller object rests on an inclined plane which is tilted at an angle 40 degrees as shown. What are the acceleration of the system and the tension in the string?
a 2.5 KG object is placed on a horizontal table is connected to a string that...
a 2.5 KG object is placed on a horizontal table is
connected to a string that passes over a pulley and then is
fastened to a hanging 7.50 KG object. the coefficient of friction
between the table and the 2.5 block is 0.3. find the magnitude of
the acceleration of the two objects and the tension in thr
string.
A 9.70-kg hanging object is connected by a light, inextensible
cord over a light, frictionless pulley to a 5.00-kg block that is
sliding on a flat table. Taking the coefficient of kinetic friction
as 0.243, find the tension in the string.
N
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below mg The masses of the objects are m 17.0 kg and m2 12.0 kg, the mass of the pulley is M 5.00 kg, and the radius of the pulley is R 0.300 m. Object m2 is initially on the floor, and object m, is initially 5.00 m above the floor when it is released from...
Two objects are connected to a cord, and the cord is hung over a pulley connected to the ceiling, as shown in the figure below. m2 The masses of the objects are m1-18.0 kg and m2-10.0 kg, the mass of the pulley is M-5.00 kg, and the radius of the pulley is R = 0.100 m. Object m2 įs initially on the floor, and object m1 is initially 4.30 m above the floor when it is released from rest. The...
Three objects are connected by massless wires over a massless frictionless pulley as own in the figure. The tension in the wire connecting the 10.0-kg and 15.0-kg objects is 6) measured to be 133 N. What is the tension in wire A? (5 POINTS) 15.00 kg 133 N 10.00 kg
A 2.00 kg object A is connected with a massless string across a massless, frictionless pulley to a 3.00 kg object B. The smaller object rests on an inclined plane which is tilted at an angle 40 degrees as shown. What are the acceleration of the system and the tension in the string?
a 2.5 KG object is placed on a horizontal table is
connected to a string that passes over a pulley and then is
fastened to a hanging 7.50 KG object. the coefficient of friction
between the table and the 2.5 block is 0.3. find the magnitude of
the acceleration of the two objects and the tension in thr
string.
