What is the common-mode rejection ratio for the LM3886 op amp at a frequency of (a)...

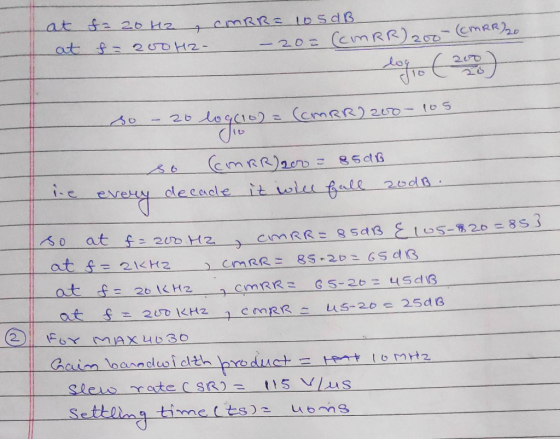

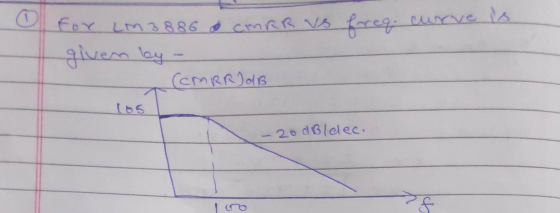

What is the common-mode rejection ratio for the LM3886 op amp at a frequency of (a) 20 Hz, (b) 200 Hz, (c) 2 kHz, (d) 20 kHz, and (e) 200 kHz? DATA SHEET
What are the typical values of (a) small signal gain-bandwidth product, (b) slew rate, and (c) settling time for the MAX4030 op amp? DATA SHEET
Homework Answers
Add Answer to:
What is the common-mode rejection
ratio for the LM3886 op amp at a frequency of (a)...
Elaborate the following parameters that is used to characterize an op-amp. State the practical and ideal...
Elaborate the following parameters that is used to characterize an op-amp. State the practical and ideal values for all the parameters a)Closed-loop gain b)Open-loop gain c)Common-mode voltage gain d) Common-mode Rejection Ratio (CMRR) e) Slew rate f) Input bias current g)Input offset voltage h) Saturation voltage
What is Common Mode Rejection and how is it important to the recording of biomedical signals? Ske...
not sure mine is right, please help
What is Common Mode Rejection and how is it important to the recording of biomedical signals? Sketch an op-amp circuit (resistor values are not needed) that might be good at common mode rejection. 3.
What is Common Mode Rejection and how is it important to the recording of biomedical signals? Sketch an op-amp circuit (resistor values are not needed) that might be good at common mode rejection. 3.
Problem 2 110 points) For an ideal op-amp model and a typical 741 op-amp chip, the...
Problem 2 110 points) For an ideal op-amp model and a typical 741 op-amp chip, the following partial table is provided. 1. Furnish the two (2) missing responses in the "Typical Value" column from the attached UM741 data sheet. Note: Use the "Typ" column on the data sheet for your responses. 2. Furnish the four (4) missing responses in the "Ideal Value” column from what you remember in class about the ideal op amp model Ideal Value Typical Value Parameter...
Design a two stage op amp with the following specifications Design Specifications Supply voltage ...
Design a two stage op amp with the following specifications Design Specifications Supply voltage Maximum power dissipation DC Gain Phase Margin Unity gain-bandwidth Slew Rate PSRR CMRR Load Capacitance (C) Input Common Mode Range 3.3 V 10 % 5 mW 100 dB >60 >100 MHz >20 V/usec >70 dB >70 dB 10 pF Rail-to-rail ave
Design a two stage op amp with the following specifications Design Specifications Supply voltage Maximum power dissipation DC Gain Phase Margin Unity gain-bandwidth Slew Rate...
A. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have o...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
. Compare the typical (a) unity gain bandwidth and (b) slew rate of the AD847 op...
. Compare the typical (a) unity gain bandwidth and (b) slew rate of the AD847 op amp when operated with supply voltages of ±5 V and ±15 V. . What is the gain bandwidth product of the LM4951? (Note, you have to really search the TI datasheet to find this.)
1-Calculate the power bandwidth for the following op amps if the peak output voltage is 10...
1-Calculate the power bandwidth for the following op amps if the peak output voltage is 10 V: (a) μA741, (b) LF411, (c) OPA134, (d) LM318, and (e) LT1363. Use the minimum slew rate if available. 2-Utilizing an NE5534 op amp, what is the approximate input noise voltage for a source resistance of 1 kΩ and a bandwidth from 10 Hz to 20 kHz?
And b. slew lall unity-gain frequency amplifier. Specifications require that the gain vary no mor...
4-47
ans:
a. 11.77Mhz
b. 40.21V/ms
c. yes
and b. slew lall unity-gain frequency amplifier. Specifications require that the gain vary no more than 2 dB from near The peak input signal is estimated as 0.8 V. Determine the minimum values of frequency and b. slew rate for the op-amp selected. c. Would the LM1182181 4-47. An inverting amplifier with a gain of -8 is to be designed for use in a s de to 1 MHz. a. unity-gain op-amp...
A. The amplifier shown below is constructed with auA741 opamp with R-10kg 2. It is to have (GBP) ...
A. The amplifier shown below is constructed with auA741 opamp with R-10kg 2. It is to have (GBP) of 1 MHz a closed-loop gain of 100. Assume the op-amp has a gain-bandwidth product i. Specify the value of Ro ii. What will be the gain (in both dB and actual magnitude) at 100.kHz? ii. How many cycles will the output signal trail the input signal at 100kHz Co Noh-Inverting R Op-Amp vi Curde 1. B. A transducer measures a sinusoidal...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
not sure mine is right, please help
What is Common Mode Rejection and how is it important to the recording of biomedical signals? Sketch an op-amp circuit (resistor values are not needed) that might be good at common mode rejection. 3.
What is Common Mode Rejection and how is it important to the recording of biomedical signals? Sketch an op-amp circuit (resistor values are not needed) that might be good at common mode rejection. 3.
Problem 2 110 points) For an ideal op-amp model and a typical 741 op-amp chip, the following partial table is provided. 1. Furnish the two (2) missing responses in the "Typical Value" column from the attached UM741 data sheet. Note: Use the "Typ" column on the data sheet for your responses. 2. Furnish the four (4) missing responses in the "Ideal Value” column from what you remember in class about the ideal op amp model Ideal Value Typical Value Parameter...
Design a two stage op amp with the following specifications Design Specifications Supply voltage Maximum power dissipation DC Gain Phase Margin Unity gain-bandwidth Slew Rate PSRR CMRR Load Capacitance (C) Input Common Mode Range 3.3 V 10 % 5 mW 100 dB >60 >100 MHz >20 V/usec >70 dB >70 dB 10 pF Rail-to-rail ave
Design a two stage op amp with the following specifications Design Specifications Supply voltage Maximum power dissipation DC Gain Phase Margin Unity gain-bandwidth Slew Rate...
a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...
4-47
ans:
a. 11.77Mhz
b. 40.21V/ms
c. yes
and b. slew lall unity-gain frequency amplifier. Specifications require that the gain vary no more than 2 dB from near The peak input signal is estimated as 0.8 V. Determine the minimum values of frequency and b. slew rate for the op-amp selected. c. Would the LM1182181 4-47. An inverting amplifier with a gain of -8 is to be designed for use in a s de to 1 MHz. a. unity-gain op-amp...
A. The amplifier shown below is constructed with auA741 opamp with R-10kg 2. It is to have (GBP) of 1 MHz a closed-loop gain of 100. Assume the op-amp has a gain-bandwidth product i. Specify the value of Ro ii. What will be the gain (in both dB and actual magnitude) at 100.kHz? ii. How many cycles will the output signal trail the input signal at 100kHz Co Noh-Inverting R Op-Amp vi Curde 1. B. A transducer measures a sinusoidal...
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
