Help with a 2D motion problem when a ball is shot out of a cannon Initial...

Question

Question

Help with a 2D motion problem when a ball is shot out of a cannon

Initial Speed = 3.92 m/s

50 degree Angle

1.045m above the ground

Calculate the expected distance traveled by the ball.

science physics

Answer 1

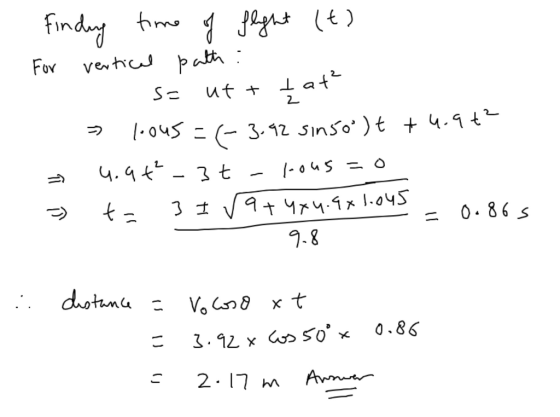

Answer #1

Answer 2
