Carbon dioxide (assume ideal gas) is compressed from 120 kPa and 227°C to 700 kPa and...

Carbon dioxide (assume ideal gas) is compressed from 120 kPa and 227°C to 700 kPa and 427°C at a mass flow rate of 5 kg s-1. 100 kW is lost to the environment in the process. Determine the work required

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

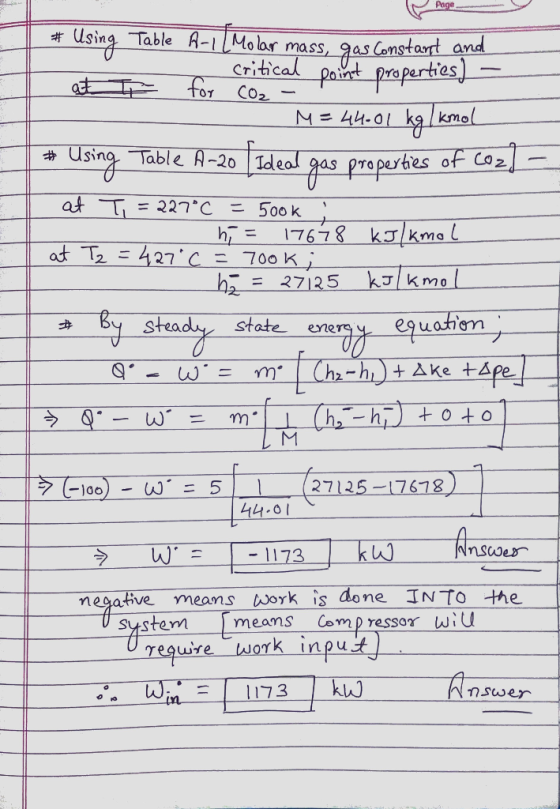

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Carbon dioxide (assume ideal gas) is compressed from 120 kPa and 227°C to 700 kPa and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa...

    a piston -cylinder device contains 2.5 Kg of carbon dioxide (CO2 ) initially at 100 KPa and 300o C. The carbon dioxide is then compressed to 200 kPa following a process of Pv1.25 =constant. Determine (A) the boundary worked needed for the process (B) The temperature after compression . use Ideal gas state and Pressure in absolute pressure ; R=0.1889 KJ/Kg-K

  • Problem #4 Carbon dioxide is compressed adiabatically in a piston – cylinder arrangement form 500 kPa...

    Problem #4 Carbon dioxide is compressed adiabatically in a piston – cylinder arrangement form 500 kPa and 310 K to 2.5 MPa. What is the minimum work required for the compression process if the initial volume is 0.04 m3 . Consider carbon dioxide as ideal gas with: a) constant specific heat. b) Variable specific heat.

  • Nitrogen at 120 kPa and 30°C is compressed to 620 kPa in an adiabatic compressor. Calculate...

    Nitrogen at 120 kPa and 30°C is compressed to 620 kPa in an adiabatic compressor. Calculate the minimum work needed for this process in kJ/kg. Use the table containing the ideal gas specific heats of various common gases. The minimum work needed for this process is k J/kg.

  • 2. Helium Gas is compressed from 90kPa and 30° C to 50 kPa in a reversible,...

    2. Helium Gas is compressed from 90kPa and 30° C to 50 kPa in a reversible, adiabatic process. Determine the final temperature, the work done and the entropy generation, assuming the process takes place in a steady-flow compressor. Assume that Helium is an ideal gas with Cp=3.5R.

  • A piston-cylinder contains 1.8 kg of carbon dioxide at 190°C and 1.7 MPa. It is compressed...

    A piston-cylinder contains 1.8 kg of carbon dioxide at 190°C and 1.7 MPa. It is compressed t<o 3.4 MPa through a polytropic process whereP「--const. Determine the final temperature treating the carbon dioxide as (a) an ideal gas T2 and (b) a ver der Waals gas.

  • Air is compressed steadily by a reversible compressor from 100 kPa and 300 K to 900...

    Air is compressed steadily by a reversible compressor from 100 kPa and 300 K to 900 kPa by a 10-kW motor. Assume air is both ideal and has constant specific heat capacity values determined at room temperature from Table A-2 at room temperature (300 K). a) Determine the mass flow rate through the compressor if the process is isentropic. ( find and identify the work per unit mass) b) polytropic with n = 1.2 c) isothermal d) ideal two-stage polytropic...

  • 9:08 LTE HomeWork-5.pdf 1 of 2 MEEN 2374 Home work #5 Air is compressed from 120 kPa and 310 K to...

    answer both 1&2 please 9:08 LTE HomeWork-5.pdf 1 of 2 MEEN 2374 Home work #5 Air is compressed from 120 kPa and 310 K to 600 kPa and 550 K. A heat loss of 20 kJ/kg occurs during the process. Determine the power required for a mass flow rate of 3.2kg's 2. Steam at 5 MPa and 500 C expands adiabatically to 75 kPa. If the exhaust steam has a vapor quality of 0.9, determine the work output of this...

  • Air, modeled as an ideal gas, is compressed at steady state from 1 bar, 300 K,...

    Air, modeled as an ideal gas, is compressed at steady state from 1 bar, 300 K, to 5 bar, 500 K, with 190 kW of power input. Heat transfer occurs at a rate of 25.33 kW from the air to cooling water circulating in a water jacket enclosing the compressor. Neglecting kinetic and potential energy effects, determine the mass flow rate of the air, in kg/s.

  • Air enters the compressor of an ideal Brayton refrigeration cycle at 140 kPa, 270 K, and...

    Air enters the compressor of an ideal Brayton refrigeration cycle at 140 kPa, 270 K, and is compressed to 420 kPa. At the turbine inlet, the temperature is 320 K and the volumetric flow rate is 0.4 m3/s. Determine (a) the mass flow rate, in kg/s (b) the net power input, in kW (c) the refrigerating capacity, in kW (d) the coefficient of performance Round answers to 3 significant digits.

  • Argon is compressed in a polytropic process with n= 1 from 120 kPa and 10°C to...

    Argon is compressed in a polytropic process with n= 1 from 120 kPa and 10°C to 600 kPa in a piston–cylinder device. Determine the work produced and heat transferred during this compression process, in kJ/kg. For Argon, R is 0.2081 KJ/kg K, Cv =0.3122 KJ/kg K
