You have long solid cylinder of radius R and charge density p (charge per unit volume)....

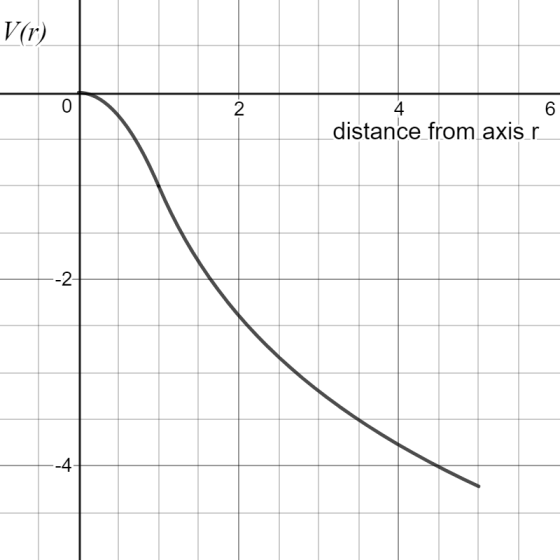

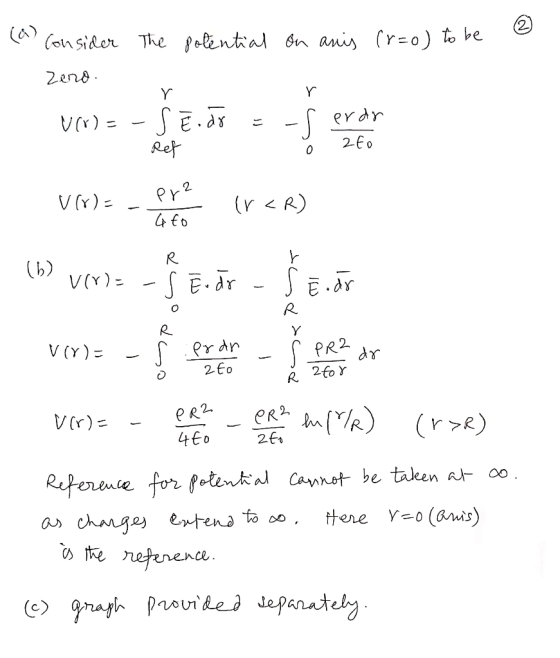

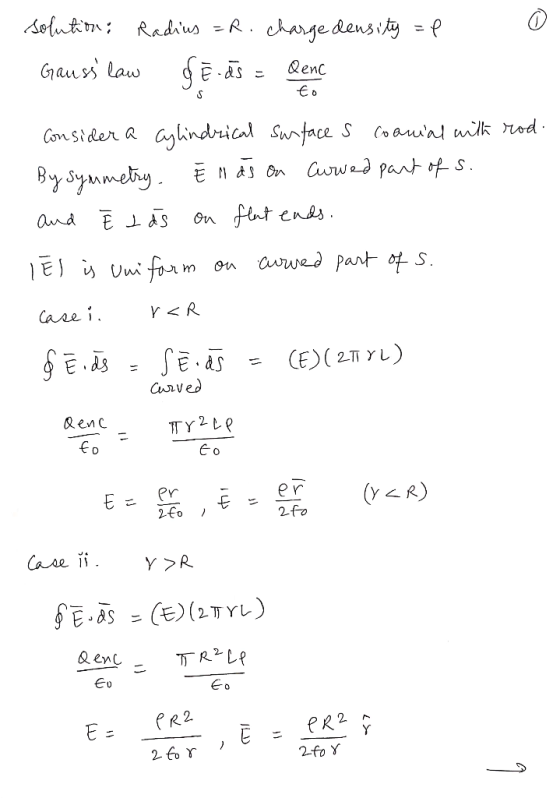

You have long solid cylinder of radius R and charge density p (charge per unit volume). (a) Find electric potential V(r) at distance r < R from the axis of the cylinder. (b) Find electric potential V (r) outside the cylinder at distance r > R. (c) sketch a graph of the electric potential V (r) as a function of r, from r = 0 to r = 4R, with r along the horizontal axis of the graph.
Homework Answers
