You are playing a game where you roll a ball up a ramp to try to...
- You are playing a game where you roll a ball up a ramp to try
to get the ball to drop into a hole. You roll a 0.60 kg solid ball
with a radius of 3.6 cm along a flat surface with a ramp at the
end. The ball rolls up the ramp without slipping, and if you’ve
successfully aimed your roll, the ball will drop into a hole in the
ramp. The setup is shown on the right.

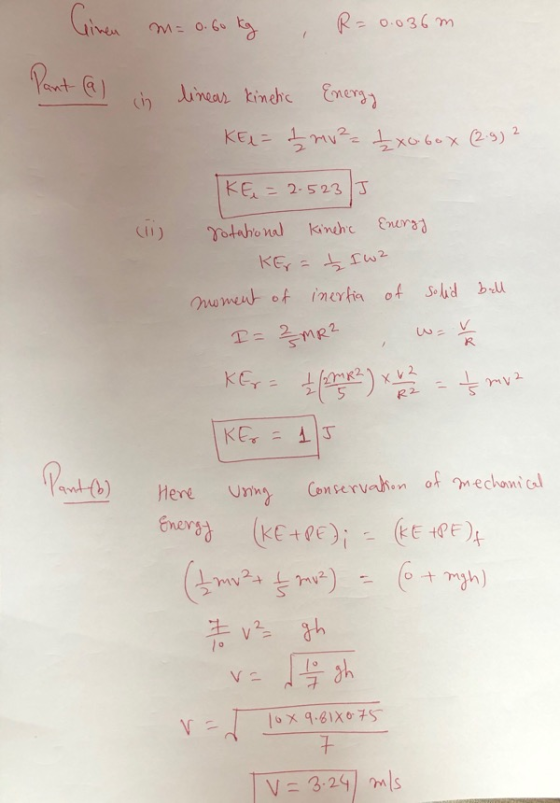

- At a certain time while the ball is rolling, it has a linear velocity of 2.9 m/s. What is the linear kinetic energy of the ball? What is the rotational kinetic energy of the ball?
- You are aiming for a hole whose opening is 0.75 m above the ground. What is the initial linear velocity you need to give the ball in order to just barely reach the hole?
