1. The block which has a weight of 200 N and it is pulling at floor...

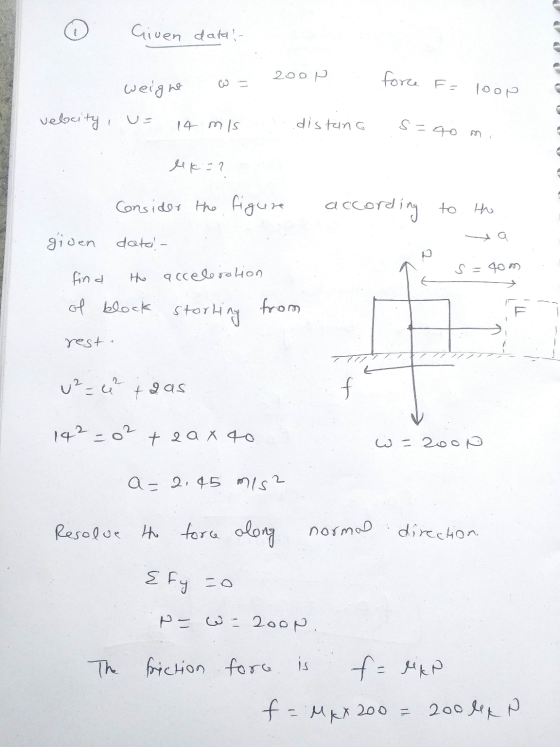

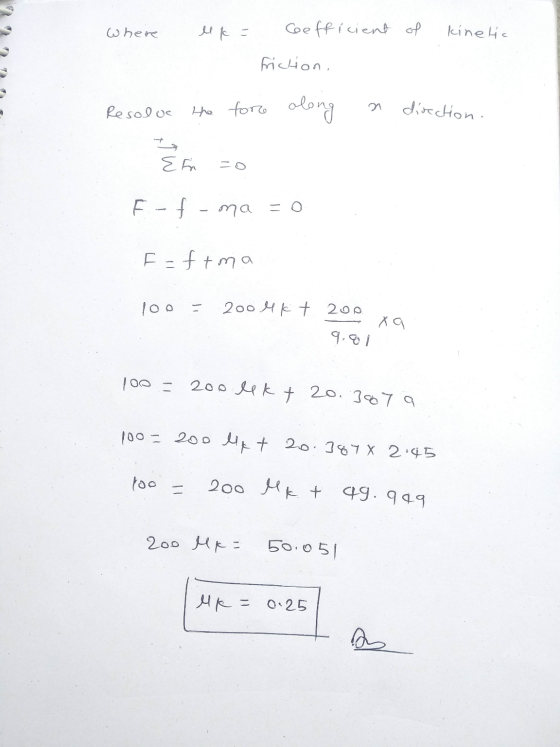

1. The block which has a weight of 200 N and it is pulling at floor with the force of 100 N and attains a velocity of 14m/sec in a distance of 40 meters starting from rest. Compute the coefficient of Kinetic friction between the block and the floor.
2.An elevator weighting 22.2 KN moving downward with constant acceleration travels a distance of 30 m during the interval of time t= 0 to t=10s. Assuming the initial velocity is zero and neglecting all resistances, find the tension in the supporting cable during this time.
3. A box weighing 100 N is placed on the floor of a truck moving 60 km/hr horizontally. if the coefficient of friction between the box and the floor of the truck is 0.5, determine how far the truck move before the box stops slipping.
Homework Answers
Add Answer to:
1. The block which has a weight of 200 N and it is pulling at
floor...
A box weighing 100 N is placed on the floor of a truck moving 60 km/hr...
A box weighing 100 N is placed on the floor of a truck moving 60 km/hr horizontally. if the coefficient of friction between the box and the floor of the truck is 0.5, determine how far the truck move before the box stops slipping.
A trunk with a weight of 200 N rests on the floor. The coefficient of static...
A trunk with a weight of 200 N rests on the floor. The coefficient of static friction between the trunk and the floor is 0.50, and the coefficient of kinetic friction is 0.26. (a) What is the magnitude of the minimum horizontal force with which a person must push on the trunk to start it moving? (b) Once the trunk is moving, what magnitude of horizontal force must the person apply to keep it moving with constant velocity? (c) If...
q2 LON 2 Moving Block The figure shows a 2-kg block on a rough surface moving...
q2
LON 2 Moving Block The figure shows a 2-kg block on a rough surface moving initially with a velocity of +3m's The coefficient of friction between the box and the floor are - 0.2. A downward force of ION is constantly applied to the block. a) Draw the free body diagram of the box on the figure, indicating the direction of the acceleration of the box and the coordinate system pes) 2.0 kg 3m/s b) Determine the magnitude of...
initiated his siue Suppose you are pulling a 4.2-kg block across a rough, horizontal surface with...
initiated his siue Suppose you are pulling a 4.2-kg block across a rough, horizontal surface with a spring that has a spring constant of 100 N/m. What is the coefficient of kinetie friction between the surface and the block if the spring stretches by 3.2 em when you pull on the block at angle of 15° above the horizontal? Assume the block is moving with constant velocity
1. A block with weight W = 30 N is on a flat horizontal surface. You...
1. A block with weight W = 30 N is on a flat horizontal surface. You pull to the right with a force F = 16 N. There is gravity present and the coefficient of friction is static = 0.4 and kinetic - 0.25. You are also pulling straight up with an applied force of 12 N. Now what are: The normal force N-_ the frictional force f- the net force on the block Foot and acceleration a = 2....
Which ones did I get wrong ? kg block is sitting on a ramp that makes...
Which ones did I get wrong ?
kg block is sitting on a ramp that makes a 20 degree angle with the horizontal. What is the 1) A magnitude of the normal force exerted by the block on the ramp? A between 0 and 10 N between 10 and 20 N C) between 40 and 50 N D) between 20 and 30 N E) None of the above Which of the following is NOT true about forces? 2) A) Gravitational...
Your A student decides to move a box of books into her dormitory room by pulling...
Your A student decides to move a box of books into her dormitory room by pulling on a rope attached to the box. She puls with a force of 137.0 N at an angle of 15.0° above the horicontal. The box has a mass of 25.0 kg, and the coefficient of kinetic friction between bex and floor is 0.300. (a) Find the acceleration of the box 7.71 Your response differs from the correct answer by more than 100%, m/s2 up...
Hi I need help with the following problems: 1.A ball is thrown horizontally from the roof...
Hi I need help with the following problems: 1.A ball is thrown horizontally from the roof of a building 45.0 m tall and lands 24.0 m from the base. What was the ball’s initial speed? 2.A football is kicked at ground level with a speed of at an angle of 36.9º to the horizontal. How much later does it hit the ground? How height does it rise? What is its range? 3.A projectile is fired with an initial speed of...
15. The tension in the massless rope between the two identical weights is 60 N. What...
15. The tension in the massless rope between the two identical weights is 60 N. What is W? rope w w 60 N (b) 19.6 N (C) 49 N (d) 9.8 N 30N 16. A 1000-kg small car collides with a 5000-kg large truck. Which statement is most accurate? (a) the car experiences 5 times greater force than the truck. (b) the truck experiences 5 times more acceleration than the car. (c) the car experiences 5 times more acceleration than...
pls answer all questions 4. A 1200.0 kg elevator is resting on the bottom floor and...
pls
answer all questions
4. A 1200.0 kg elevator is resting on the bottom floor and is being pulled upward by a cable (but is not moving). If the tension in the cable is 5240 N, what is the magnitude of the normal force acting on the elevator? a. 5240 N b. 4040 N с, 6520 N d. 11800 N 15. How much momentum does a 25 kg child have that is moving at 1 km/h? a. 174 kg m/s...
A trunk with a weight of 200 N rests on the floor. The coefficient of static friction between the trunk and the floor is 0.50, and the coefficient of kinetic friction is 0.26. (a) What is the magnitude of the minimum horizontal force with which a person must push on the trunk to start it moving? (b) Once the trunk is moving, what magnitude of horizontal force must the person apply to keep it moving with constant velocity? (c) If...
q2
LON 2 Moving Block The figure shows a 2-kg block on a rough surface moving initially with a velocity of +3m's The coefficient of friction between the box and the floor are - 0.2. A downward force of ION is constantly applied to the block. a) Draw the free body diagram of the box on the figure, indicating the direction of the acceleration of the box and the coordinate system pes) 2.0 kg 3m/s b) Determine the magnitude of...
initiated his siue Suppose you are pulling a 4.2-kg block across a rough, horizontal surface with a spring that has a spring constant of 100 N/m. What is the coefficient of kinetie friction between the surface and the block if the spring stretches by 3.2 em when you pull on the block at angle of 15° above the horizontal? Assume the block is moving with constant velocity
1. A block with weight W = 30 N is on a flat horizontal surface. You pull to the right with a force F = 16 N. There is gravity present and the coefficient of friction is static = 0.4 and kinetic - 0.25. You are also pulling straight up with an applied force of 12 N. Now what are: The normal force N-_ the frictional force f- the net force on the block Foot and acceleration a = 2....
Which ones did I get wrong ?
kg block is sitting on a ramp that makes a 20 degree angle with the horizontal. What is the 1) A magnitude of the normal force exerted by the block on the ramp? A between 0 and 10 N between 10 and 20 N C) between 40 and 50 N D) between 20 and 30 N E) None of the above Which of the following is NOT true about forces? 2) A) Gravitational...
Your A student decides to move a box of books into her dormitory room by pulling on a rope attached to the box. She puls with a force of 137.0 N at an angle of 15.0° above the horicontal. The box has a mass of 25.0 kg, and the coefficient of kinetic friction between bex and floor is 0.300. (a) Find the acceleration of the box 7.71 Your response differs from the correct answer by more than 100%, m/s2 up...
15. The tension in the massless rope between the two identical weights is 60 N. What is W? rope w w 60 N (b) 19.6 N (C) 49 N (d) 9.8 N 30N 16. A 1000-kg small car collides with a 5000-kg large truck. Which statement is most accurate? (a) the car experiences 5 times greater force than the truck. (b) the truck experiences 5 times more acceleration than the car. (c) the car experiences 5 times more acceleration than...
pls
answer all questions
4. A 1200.0 kg elevator is resting on the bottom floor and is being pulled upward by a cable (but is not moving). If the tension in the cable is 5240 N, what is the magnitude of the normal force acting on the elevator? a. 5240 N b. 4040 N с, 6520 N d. 11800 N 15. How much momentum does a 25 kg child have that is moving at 1 km/h? a. 174 kg m/s...
