Show that for an object launched with an initial angle, α0, and initial velocity, V0, from...

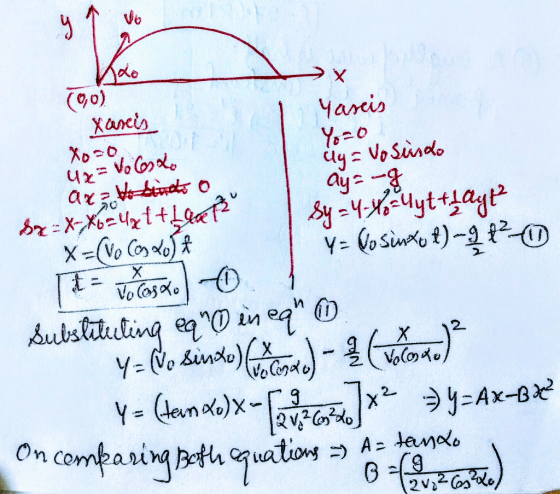

Show that for an object launched with an initial angle, α0, and initial velocity, V0, from X0 = y0 at t = 0, its projectile motion will trace out a parabola of the form y = Ax – Bx2 on a y versus x graph. Here, A and B are constants of the motion related to initial conditions. Explicitly show the expressions for constants A and B, as well.
Homework Answers
Add Answer to:
Show that for an object launched with an initial angle,
α0, and initial velocity, V0, from...
An object is launched with a speed v0 = 80.0 m/s and with an angle α0...
An object is launched with a speed v0 = 80.0 m/s and with an angle α0 = 60º with respect to the flat surface from which it was launched at a place where g = 9.80 m/s^2. a) Calculate the position (x, y) of the object when t = 4.00s. b) Calculate the magnitude and direction of its velocity when t = 4.00s. c) Determine the time at which the object reaches its maximum height and the value of said...
A projectile is launched with V0 = 5.4 miles/hour and initial angle = 41.5 degrees above...
A projectile is launched with V0 = 5.4 miles/hour and initial angle = 41.5 degrees above the horizontal. What is the initial vertical component of the projectile velocity in miles per hour?
A projectile is launched with V0 = 6.7 m/s and initial angle = 1.24 radians above...
A projectile is launched with V0 = 6.7 m/s and initial angle = 1.24 radians above the horizontal. What is the initial horizontal component of the projectile velocity in miles per hour?
An object is projected with initial speed v0 from the edge of the roof of a...
An object is projected with initial speed v0 from the edge of the roof of a building that has height H. The initial velocity of the object makes an angle α0 with the horizontal. Neglect air resistance. A) If α0 is 90∘, so that the object is thrown straight up (but misses the roof on the way down), what is the speed v of the object just before it strikes the ground? Express your answer in terms of some or...
EXPLORE A projectile is launched with a launch angle of 30° with respect to the horizontal...
EXPLORE A projectile is launched with a launch angle of 30° with respect to the horizontal direction and with an initial speed of 40 m/s. (A) How do the vertical and horizontal components of the projectile's velocity vary with time? (B) How long does it remain in flight? (C) For a given launch speed, what launch angle produces the longest time of flight? CONCEPTUALIZE Consider the projectile to be a point mass that starts with an initial velocity, upward and...
A projectile is launched straight up from ground level with an initial velocity of v0 per...
A projectile is launched straight up from ground level with an initial velocity of v0 per sec. Neglecting air resistance, its height in feet, s, after t seconds after launch is given by the equation s = –16t2 + v0t. At what time(s) will the projectile reach a height of 112 feet when v0 = 96 feet/sec? After how many seconds will it return to the ground when v0 = 96 feet/sec?
A projectile is launched with an initial velocity v , at an angle θ' above the...
A projectile is launched with an initial velocity v , at an angle θ' above the horizontal. At a certain pont A in its motion, its velocity angle is 0, above the horizontal. At another point B, later in its motion, its velocity angle is θ8 below the horizontal. What is the horizontal distance from A to B? 2. (Model the projectile as a particle. Assume a constant standard earth-surface g value. Ignore all air resistance.) You may assume that...
Plot the Trajectory of a Projectile (by hand) from launch to maximum height • Launch angle...
Plot the Trajectory of a Projectile (by hand) from launch to maximum height • Launch angle is 35 degrees • Launch height (y0) = 3 m • Initial velocity (V0) = 25 m/s • Acceleration ... ax = 0 , ay = -9.8 m/s2 Part 2 • Make a data table for x(t) and y(t) and plot the trajectory of the projectile (y vs. x) on graph paper • stop the plot when the maximum height is achieved • use...
An object is launched with an angle of 25 upward with the horizontal. The initial velocity...
An object is launched with an angle of 25 upward with the horizontal. The initial velocity of the object is 20 m/'s in a direction making. What is the vertical velocity of object at the maximum height reached by the object? 0.00 O 15.11 O 18.40 O 21.20
If the projectile is launched at a launching angle theta, with an initial velocity Vo from...
If the projectile is launched at a launching angle theta, with
an initial velocity Vo from a height of Yo above the table top, how
long does it take the projectile to fall on the table top? Now that
your Voy is no longer zero, so you must use the quadratic equation
to solve for t. Express the time in terms of g,Yo,Vo, and theta,
make sure that your y-direction is fixed.
t=
How far would it travel? Express in...
A projectile is launched with an initial velocity v , at an angle θ' above the horizontal. At a certain pont A in its motion, its velocity angle is 0, above the horizontal. At another point B, later in its motion, its velocity angle is θ8 below the horizontal. What is the horizontal distance from A to B? 2. (Model the projectile as a particle. Assume a constant standard earth-surface g value. Ignore all air resistance.) You may assume that...
An object is launched with an angle of 25 upward with the horizontal. The initial velocity of the object is 20 m/'s in a direction making. What is the vertical velocity of object at the maximum height reached by the object? 0.00 O 15.11 O 18.40 O 21.20
If the projectile is launched at a launching angle theta, with
an initial velocity Vo from a height of Yo above the table top, how
long does it take the projectile to fall on the table top? Now that
your Voy is no longer zero, so you must use the quadratic equation
to solve for t. Express the time in terms of g,Yo,Vo, and theta,
make sure that your y-direction is fixed.
t=
How far would it travel? Express in...
