2. (Graphs, degree sequence) If G is a simple graph with n vertices, then the degree...
2. (Graphs, degree sequence) If G is a simple graph with n vertices, then the degree sequence of G is a list a1, a2, a3, . . . , an of the degrees of all of the vertices of G in decreasing order. For instance, the degree sequence of the graph G drawn here is 3, 2, 2, 2, 2, 2, 1, 0.

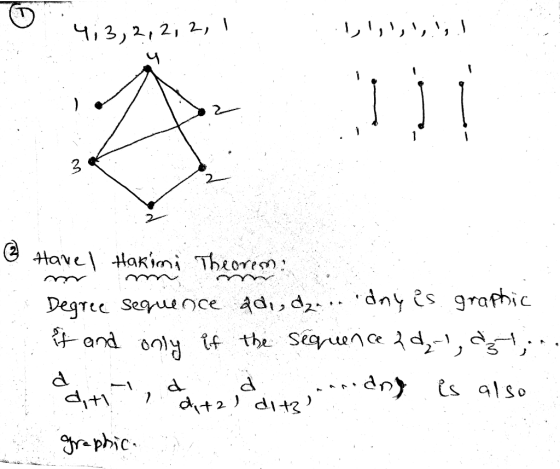

(a) Sketch a graph with the degree sequence 4, 3, 2, 2, 2, 1, and a graph with the degree sequence 1, 1, 1, 1, 1, 1.

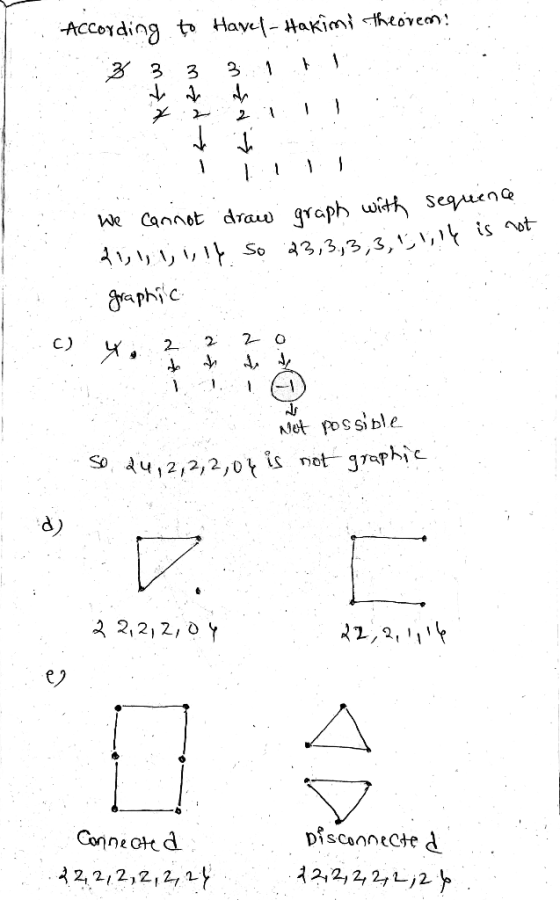

(b) Is there any graph with the degree sequence 3, 3, 3, 3, 1, 1, 1? Either give an example of one, or explain why none exists.
(c) Is there any graph with the degree sequence 4, 2, 2, 2, 0? Either give an example of one, or explain why none exists.
(d) Find two graphs that have the same number of vertices and edges but which have different degree sequences.
(e) Find two graphs, one which is connected, and one which is not, but which both have the same degree sequence.
