A=2 B=3 A steel wire is used to lift heavy object. The cable has a diameter...

A=2

B=3

A steel wire is used to lift heavy object. The cable has a diameter of (5.25 + A) mm and an initial length of (24.5 + B) m. If the cable stretches 2.50 mm, what is the mass of the heavy object? Use 20.0 x 1010 Pa for Young’s modulus for steel. Give your answer in kg and with 3 significant figures.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

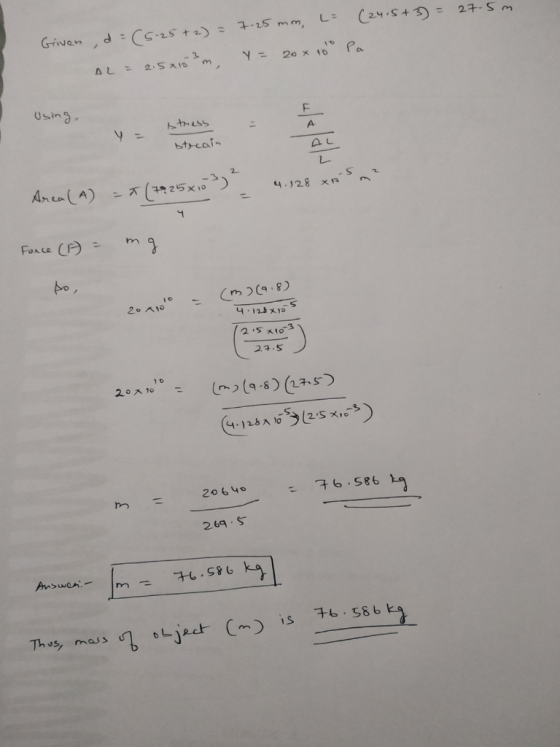

Answer #1

0 0
