A series RLC circuit has R = 200.0 Ω, L = 84.00 mH, and C = 29.00 pF. What is the impedance of the circuit at resonance? Ω

science physics

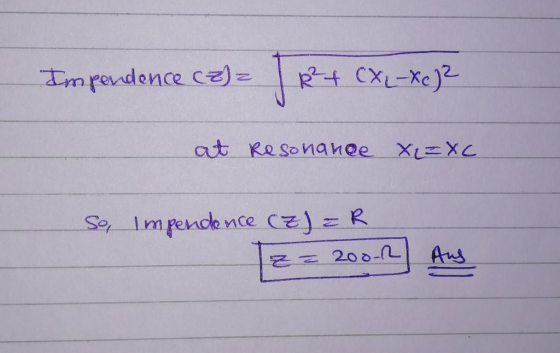

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Consider a series RLC circuit with R = 12.0 Ω, L = 0.700 H, C =...

Consider a series RLC circuit with R = 12.0 Ω, L = 0.700 H, C = 72 μF, and a maximum voltage of 100 V. (c) What is the rms current through the circuit at resonance? (d) What is the impedance at 60.0 Hz? (e) What is the rms current in the circuit at a frequency of 60 Hz?
1. A series RLC circuit has R = 1009, L = 15 mH and C =...

1. A series RLC circuit has R = 1009, L = 15 mH and C = 10 uF. It is connected to an AC course with f= 60.0Hz and Vmax = 110 V. A. Calculate the phase angle between the current and the voltage. B. What is the maximum value of the current at this frequency? C. What source frequency in Hz) is needed for the series RLC circuit to be at resonance?
An RLC series circuit has a 198 Ω resistor and a 25.0 mH inductor. At 8200...

An RLC series circuit has a 198 Ω resistor and a 25.0 mH inductor. At 8200 Hz, the phase angle is 45.0°. (a) What is the impedance? Ω (b) Find the minimum possible capacitance of the circuit. nF (c) If Vrms = 408 V is applied, what is the average power supplied? W

A series RLC circuit with L = 17.5 mH, C = 3 µF, and R =...

A series RLC circuit with L = 17.5 mH, C = 3 µF, and R = 15 Ω is driven by a generator with a maximum emf of 120 V and a variable angular frequency ω. Find the resonant frequency ω0. Answer in units of rad/s.
An RLC series circuit has a 1.00 kΩ resistor, a 150 mH inductor, and a 25.0...

An RLC series circuit has a 1.00 kΩ resistor, a 150 mH inductor, and a 25.0 nF capacitor. (a) Find the circuit's impedance (in Ω) at 505 Hz. (b) Find the circuit's impedance (in Ω) at 7.50 kHz. (c) If the voltage source has Vrms = 408 V, what is Irms (in mA) at 505 Hz and 7.5 Hz? (d) What is the resonant frequency (in kHz) of the circuit? (e) What is Irms (in mA) at resonance?
An RLC series circuit has a resistance of R = 330.0 Ω, an inductance L =...

An RLC series circuit has a resistance of R = 330.0 Ω, an inductance L = 0.2000 mH, and a capacitance C = 32.00 nF. (a) What is the resonant frequency? (b) If the capacitor breaks down for peak voltages in excess of 7.000 × 102 V, what is the maximum source voltage amplitude when the circuit is operated at the resonant frequency?

An RLC series circuit has a resistance of R = 330.0 Ω, an inductance L =...

An RLC series circuit has a resistance of R = 330.0 Ω, an inductance L = 0.2000 mH, and a capacitance C = 33.00 nF. (a) What is the resonant frequency? (b) If the capacitor breaks down for peak voltages in excess of 7.000 × 102 V, what is the maximum source voltage amplitude when the circuit is operated at the resonant frequency?
An RLC series circuit has a resistance of R = 325.0 Ω, an inductance L =...

An RLC series circuit has a resistance of R = 325.0 Ω, an inductance L = 0.3000 mH, and a capacitance C = 32.00 nF. (a) What is the resonant frequency? kHz (b) If the capacitor breaks down for peak voltages in excess of 7.000 × 102 V, what is the maximum source voltage amplitude when the circuit is operated at the resonant frequency? kV
An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900...

An RLC series circuit has a 190 Ω resistor and a 25.0 mH inductor. At 7900 Hz, the phase angle is 45.0°. (a) What is the impedance (in ohms)? Ω (b) Find the minimum possible capacitance (in nanofarads) of the circuit. nF (c) If Vrms = 408 V is applied, what is the average power (in watts) supplied? W

Help A series RLC circuit has components with the following values: L = 16.0 mH. C...

Help A series RLC circuit has components with the following values: L = 16.0 mH. C = 82.0 nF, R = 15.0 ohm, and Delta V_max = 100 V, with Delta v = Delta V_max sin omega t. Find the resonant frequency of the circuit. 4.3939e03 Resonance occurs when the impedance is at a minimum. kHz Find the amplitude of the current at the resonant frequency. 6.67 A Find the Q of the circuit. 2.68 How is the Q related...
