Matlab Practice a. Using Matlab to find the Discrete Fourier Transform(DFT) of {1,1,0,0} analytically and its...

Question

Question

Matlab Practice

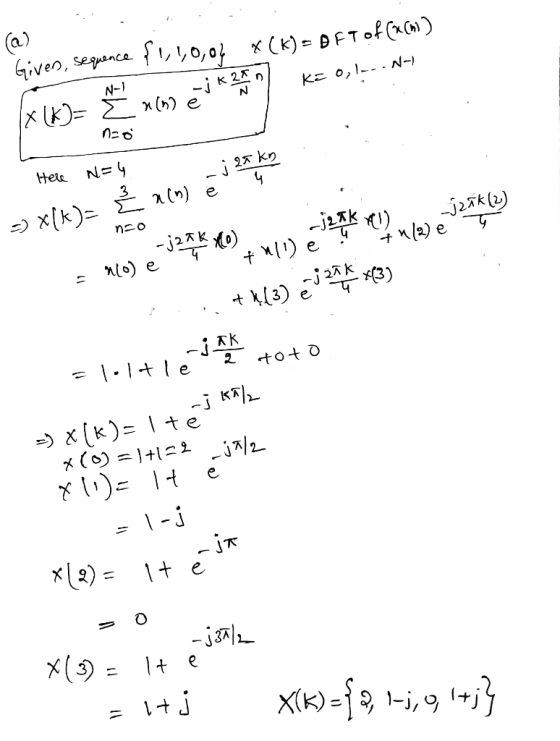

a. Using Matlab to find the Discrete Fourier Transform(DFT) of {1,1,0,0} analytically and its FFT.

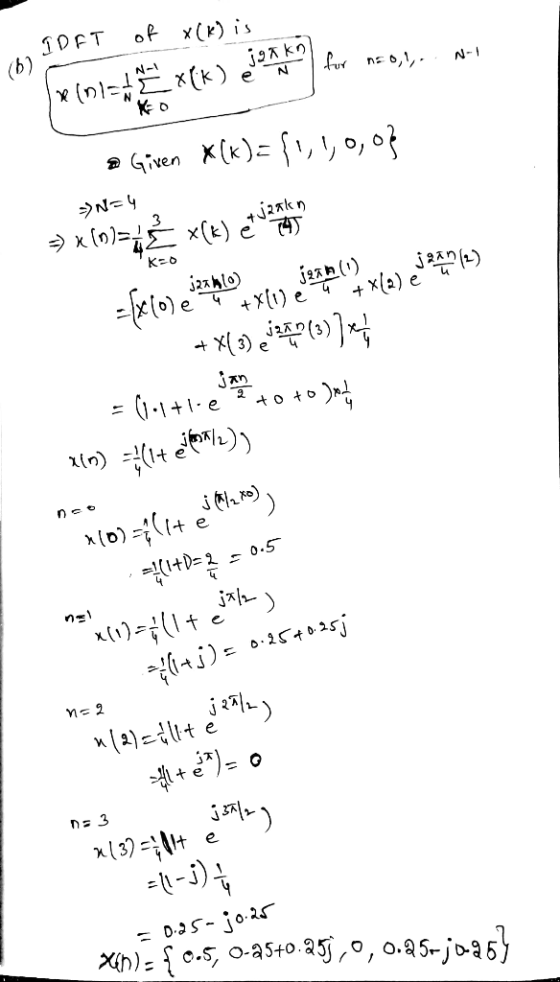

b. Using Matlab to find the IDFT of {1,1,0,0} analytically and its IFFT.

engineering Electrical-Engineering

Answer 1

Answer #1

clc;
close;
clear;
x=[1 1 0 0];
fftofx=fft(x);
ifftofx=ifft(x);

Answer 2
