Calculate the angle of incidence of the beam solar radiation at 2:00 pm (solar time) on...

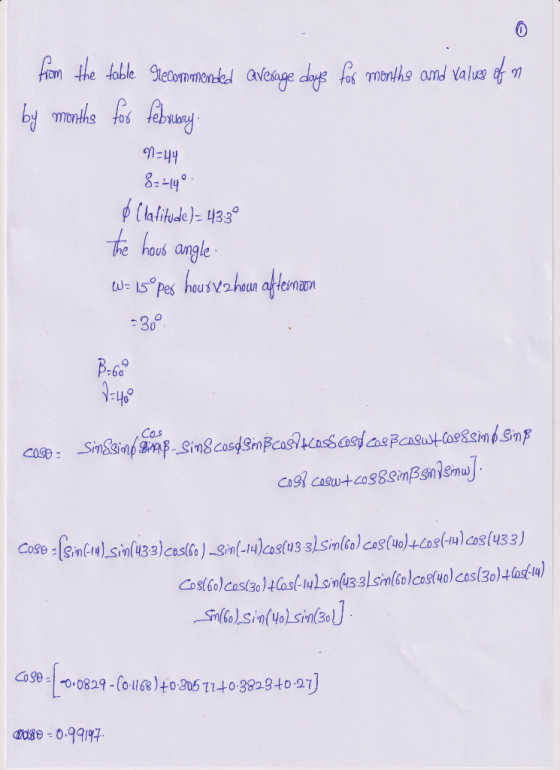

Calculate the angle of incidence of the beam solar radiation at 2:00 pm (solar time) on February 10 at latitude 43.3°
for a surface with slope of 60° and facing 40° west of south.
Homework Answers
Add Answer to:
Calculate the angle of incidence of the beam solar radiation at
2:00 pm (solar time) on...
Question 3 : Calculate the incidence angle of solar direct radiation at 1:00 PM LST on...
Question 3 : Calculate the incidence angle of solar direct radiation at 1:00 PM LST on July 21st at latitude angle of 21.12o N & longitude angle of 39.45o E for a: - Surface facing South-West. - Horizontal surface
Q1) Calculate the angle of incidence of beam radiation on a surface located at Cyprus, Nicosia...
Q1) Calculate the angle of incidence of beam radiation on a surface located at Cyprus, Nicosia on June 25 if the surface is vertical from the horizontal and pointed 10° west of south. (30 marks)
Question 1 1 pts Calculate the radiation (W) received by a collector with an area of...
Question 1 1 pts Calculate the radiation (W) received by a collector with an area of 9 m², an angle of incidence 5° and direct normal irradiance of 821 W/m². Question 2 1 pts Determine the angle of incidence of radiation on a collector surface located in Adelaide at 12 pm (solar time) on February 3rd. The collector surface is tilted at the latitude angle and facing north. Precision 1 decimal point. Use angle of incidence calculator or the provided...
The sun at 2pm in March has an altitude angle of 40o, an azimuth angle of...
The sun at 2pm in March has an altitude angle of 40o,
an azimuth angle of 30o, and generates direct solar
radiation of 500W/m2 in a plane normal to the beam.
What is the direct solar radiation striking a West-facing roof
with a slope of 15o (convention for azimuth is the one
used in the lecture, i.e solar azimuth for South is 0°)?
The sun at 2pm in March has an altitude angle of 40°, an azimuth angle of 30°,...
Calculate the direct solar incidence angle on a vertical wall facing North-East (NE) for the following...
Calculate the direct solar incidence angle on a vertical wall facing North-East (NE) for the following given data: (all angles in degree); Latitude angle (1) = 21.54 N, Longitude angle (L) = 39 E, Standard Longitude angle (LSTD) = 45 E, Day: 21st July, Time (Local Civil Time): 15:00. Attach File
Calculate the daily terrestrial solar radiation received on a horizontal surface at the location where latitude=...
Calculate the daily terrestrial solar radiation received on a horizontal surface at the location where latitude= 40 on February 18. Assume the daily clearness index, ??, of the location on that day is 0.45.
Calculate the expected solar radiative flux at our latitude (40°N) at solar noon (time of peak radiation) at three times...
Calculate the expected solar radiative flux at our latitude (40°N) at solar noon (time of peak radiation) at three times of year: equinox, and both summer and winter solstice. (Please ignore the role of the atmosphere here – in other words calculate your answer as if there were no atmosphere altering the incoming radiation.)
5. (a) 4points Figure 2 below shows the annual average radiation budget as a function of latitude...
5. (a) 4points Figure 2 below shows the annual average radiation budget as a function of latitude. Estimate the latitude Lc where the net radiation crosses over from positive to negative in the Northern Hemisphere. Also estimate the value of the net radiation at the North Pole. Use the two pieces of information to find the equation of a straight line that approximately describes the net radiation (in WIm2) as a function of latitude L between 10 N and the...
7. Calculate monthly average of daily global solar radiation on a horizontal surface verag solar day...
7. Calculate monthly average of daily global solar radiation on a horizontal surface verag solar day hours are 10 hours. Angstrom's constant for Ahmedabad are a 0.28 (Ans. 28270 kJ/m2. day erage value of solar radiation on a horizontal surface for June 22 located in Ahmedabad, (22° o0'N, 73° 10 E) for the month of Apri. A b = 0.48. at the latitude of 10 N, if constants a and b are given as equ day is 0.55 8. Estimate...
5. Calculate the 3 dB Beam-width (show details) for the antenna for which the radiation pattern...
5. Calculate the 3 dB Beam-width (show details) for the antenna for which the radiation pattern is shown below -00 -10 +10 20 +20 30. +30 +40 SmA 2 2 3
5. Calculate the 3 dB Beam-width (show details) for the antenna for which the radiation pattern is shown below -00 -10 +10 20 +20 30. +30 +40 SmA 2 2 3
Q1) Calculate the angle of incidence of beam radiation on a surface located at Cyprus, Nicosia on June 25 if the surface is vertical from the horizontal and pointed 10° west of south. (30 marks)
Question 1 1 pts Calculate the radiation (W) received by a collector with an area of 9 m², an angle of incidence 5° and direct normal irradiance of 821 W/m². Question 2 1 pts Determine the angle of incidence of radiation on a collector surface located in Adelaide at 12 pm (solar time) on February 3rd. The collector surface is tilted at the latitude angle and facing north. Precision 1 decimal point. Use angle of incidence calculator or the provided...
The sun at 2pm in March has an altitude angle of 40o,
an azimuth angle of 30o, and generates direct solar
radiation of 500W/m2 in a plane normal to the beam.
What is the direct solar radiation striking a West-facing roof
with a slope of 15o (convention for azimuth is the one
used in the lecture, i.e solar azimuth for South is 0°)?
The sun at 2pm in March has an altitude angle of 40°, an azimuth angle of 30°,...
Calculate the direct solar incidence angle on a vertical wall facing North-East (NE) for the following given data: (all angles in degree); Latitude angle (1) = 21.54 N, Longitude angle (L) = 39 E, Standard Longitude angle (LSTD) = 45 E, Day: 21st July, Time (Local Civil Time): 15:00. Attach File
5. (a) 4points Figure 2 below shows the annual average radiation budget as a function of latitude. Estimate the latitude Lc where the net radiation crosses over from positive to negative in the Northern Hemisphere. Also estimate the value of the net radiation at the North Pole. Use the two pieces of information to find the equation of a straight line that approximately describes the net radiation (in WIm2) as a function of latitude L between 10 N and the...
7. Calculate monthly average of daily global solar radiation on a horizontal surface verag solar day hours are 10 hours. Angstrom's constant for Ahmedabad are a 0.28 (Ans. 28270 kJ/m2. day erage value of solar radiation on a horizontal surface for June 22 located in Ahmedabad, (22° o0'N, 73° 10 E) for the month of Apri. A b = 0.48. at the latitude of 10 N, if constants a and b are given as equ day is 0.55 8. Estimate...
5. Calculate the 3 dB Beam-width (show details) for the antenna for which the radiation pattern is shown below -00 -10 +10 20 +20 30. +30 +40 SmA 2 2 3
5. Calculate the 3 dB Beam-width (show details) for the antenna for which the radiation pattern is shown below -00 -10 +10 20 +20 30. +30 +40 SmA 2 2 3
