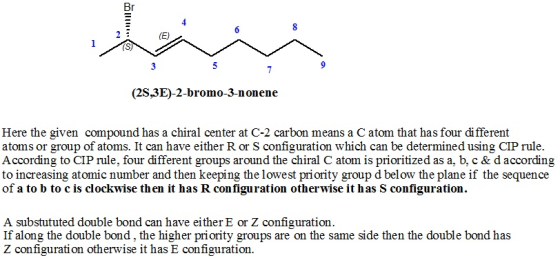

how do i draw (2s,2e)2-bromo-3-nonene ??? also what does the 2s,2e mean

Question

Question

science chemistry

Answer 1

Answer #1

Answer 2
