Question

A +51nC charge is located at +8cmj^, and a +51nC charge is located at −8cmj^. What...

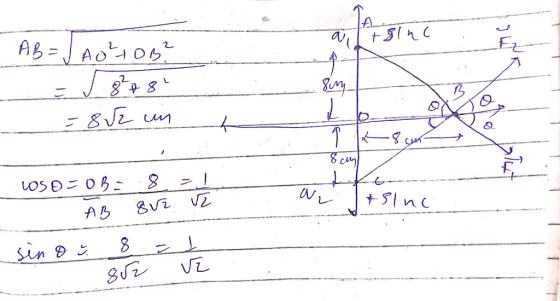

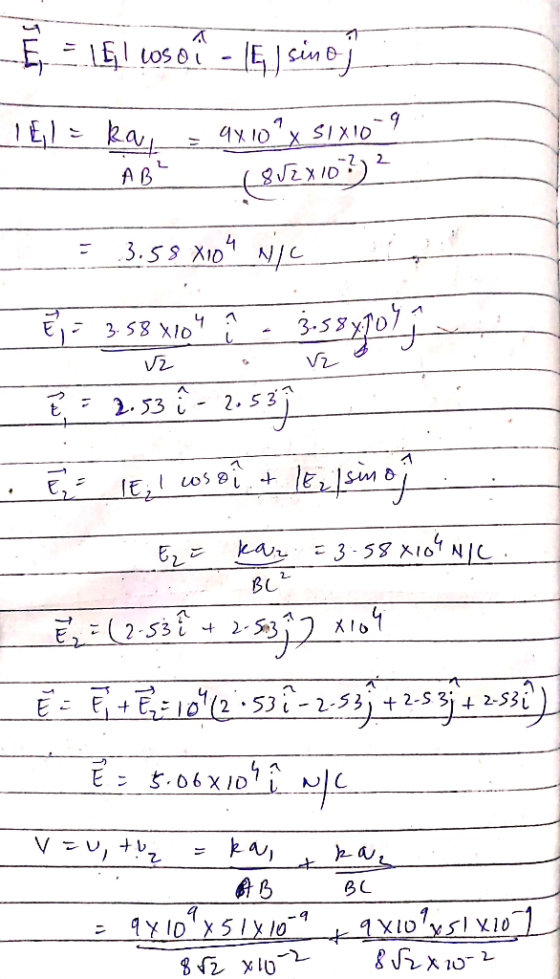

A +51nC charge is located at +8cmj^, and a +51nC charge is located at −8cmj^. What is the electric field and electric potential at the point +8cmî +8cmi^?
E⃗ =E→= N/Cî + N/Cj^
V= V

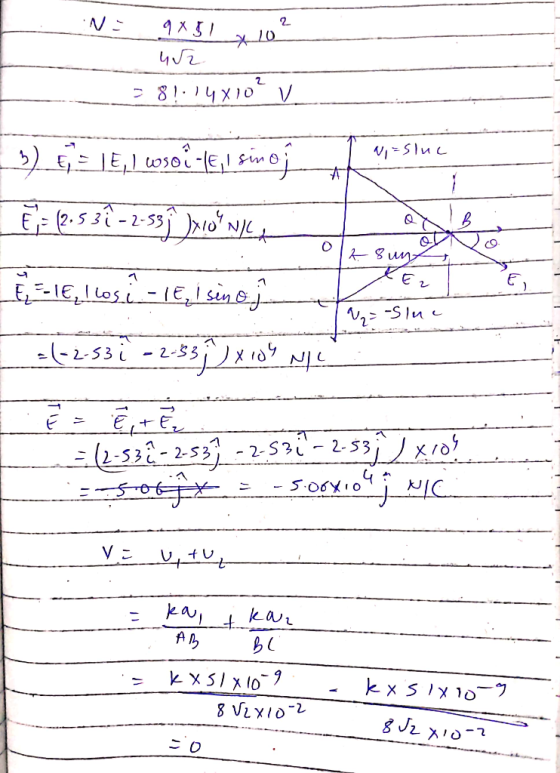

A +51nC charge is located at +8cmj^, and a −51nC charge is located at −8cmj^. What is the electric field and electric potential at the point +8cmi^?
E→= N/Cî + N/Cj^
V= V

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
