lecture 3: Cars A and B are traveling around the circular race track. At the instant...
lecture 3:

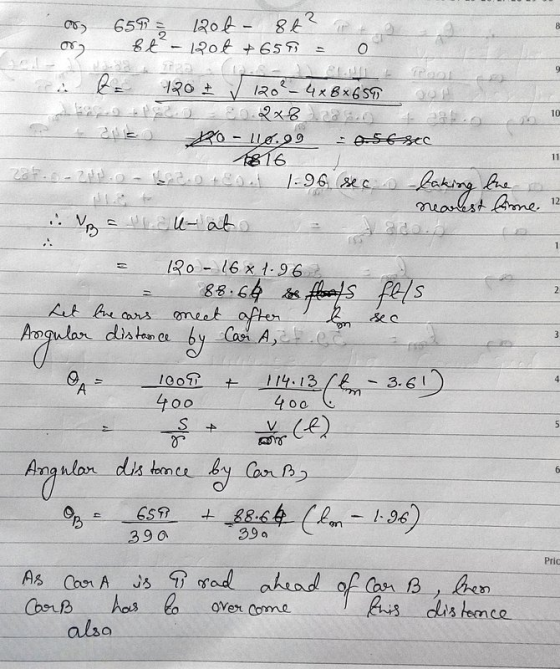

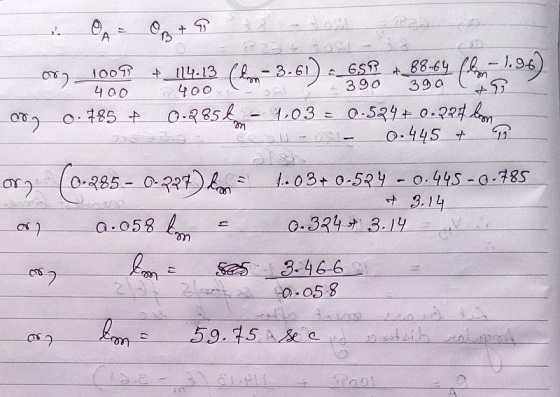

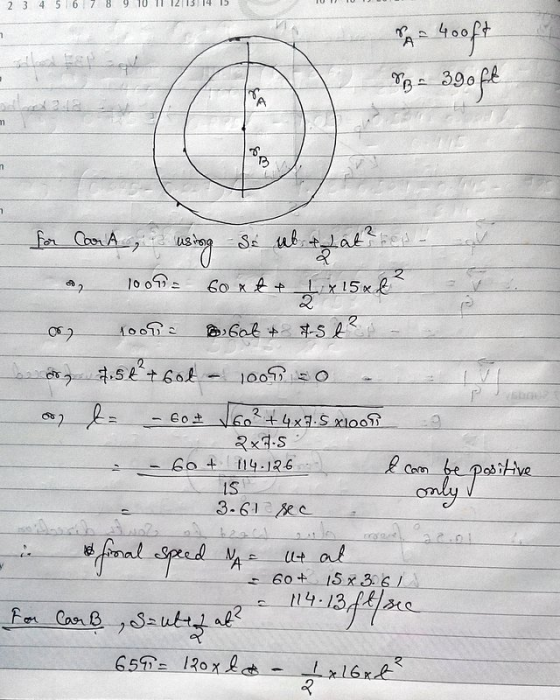

Cars A and B are traveling around the circular race track. At the instant shown, A has a speed of 60 ft/s and is increasing its speed at the rate of 15 ft/s^2 until it travels for a distance of 110πft, after which it maintains a constant speed. Car B has a speed of 120 ft/s and is decreasing its speed at 16 ft/s2 until it travels a distance of 65πft, after which it maintains a constant speed. Determine the time when they come side by side.
r(A) = 400ft
r(B) = 390ft
Homework Answers
Add Answer to:
lecture 3:
Cars A and B are traveling around the circular race track. At
the instant...
Cars A and B are traveling around the circular race track.
Cars A and B are traveling around the circular race track. At the instant shown. A has a speed of 90 ft/s and is increasing its speed at the rate of 15 ft / whereas B has a speed of 102 ft/s and is decreasing its speed at 25 ft/? (Figure 1) Determine the relative acceleration of car A with respect to car B at this instant Express your answer to three significant figures and include the appropriate units.
Problem 12.225 Part A Cars A and B are traveling around the circular race track. At...
Problem 12.225 Part A Cars A and B are traveling around the circular race track. At the instant shown, A has a speed of 76 ft/s and is increasing its speed at the rate of 15 ft /s2, whereas B has a speed of 113 ft/s and is decreasing its speed at 25 ft /s2. (Figure 1) Determine the relative velocity of car A with respect to car B at this instant Express your answer to three significant figures and...
A race car C travels around the horizontal circular track that has a / radius of...
A race car C travels around the horizontal circular track that has a / radius of 300 ft Fis 12-28 If the car increases its speed at a constant rate of 7 ft/s, starting from rest, determine the time needed for it to reach an acceleration o f8ns what is its speed at this instant?- 300 ft F. 12-28 Fig. 12-28
A race car is traveling at a constant speed of 102 m/s around a circular track...
A race car is traveling at a constant speed of 102 m/s around a circular track with a radius of 3250 m. How long does it take the race car to go around the track once? Express your answer in seconds.
available until you signif Four toy racecars are racing along a circular race track. The cars...
available until you signif Four toy racecars are racing along a circular race track. The cars start at the 3-o'clock position and travel CCW along the tracks t = 4.46 Car B is constantly 3 feet from the center of the race track and travels at a constant speed. The angle Car B sweeps out increases at a constant rate of 2 radian per second. a. How many radians does car B sweep out in t seconds? Preview b. Define...
Racecar A is traveling on a straight portion of the track while racecar B is traveling...
Racecar A is traveling on a straight portion of the track while racecar B is traveling on a circular portion of the track. The speed of racecar A is 265 km/h and the speed of racecar Bis 225 km/h. At the instant shown, the speed of A is increasing at the rate of 10 m/s2, and the speed of Bis decreasing at the rate of 6 m/s2. Consider the position shown. VA А B 50° 300 m VB Determine the...
A race car travels with a constant tangential speed of 81.3 m/s around a circular track of radius 678 m.
A race car travels with a constant tangential speed of 81.3 m/s around a circular track of radius 678 m. Find the magnitude of the total acceleration.
Four toy racecars are racing along a circular race track. The cars start at the 3-o'clock...
Four toy racecars are racing along a circular race track. The cars start at the 3-o'clock position and travel CCW along the track 0.6 Car A is constantly 2 feet from the center of the race track and travels at a costant speed. The angle Car A swps out increases at a constant rate of 1 radian per second a How many radians 8 does car A sweep out in t seconds? = | Preview | b. Define a function...
At the instant shown, cars A and B are traveling at velocities of 58 m/s and...
At the instant shown, cars A and B are traveling at velocities of 58 m/s and 32 m/s , respectively. B is increasing its velocity by 2 m/s2, while A maintains a constant velocity. The radius of curvature at B is?B = 200 m.
Part A
Determine the magnitude of the velocity of B with respect to A.
Part B
Determine the direction angle of the velocity of B with respect to A.
Part C
Determine the magnitude of the...
Racecar A is traveling on a straight portion of the track while racecar B is traveling...
Racecar A is traveling on a straight portion of the track while racecar B is traveling on a circular portion of the track. The speed of racecar A is 265 km/h and the speed of racecar Bis 225 km/h. At the instant shown, the speed of A is increasing at the rate of 10 m/s2, and the speed of Bis decreasing at the rate of 6 m/s2. Consider the position shown. VA А B 50° 300 m VB Determine the...
Cars A and B are traveling around the circular race track. At the instant shown. A has a speed of 90 ft/s and is increasing its speed at the rate of 15 ft / whereas B has a speed of 102 ft/s and is decreasing its speed at 25 ft/? (Figure 1) Determine the relative acceleration of car A with respect to car B at this instant Express your answer to three significant figures and include the appropriate units.
Problem 12.225 Part A Cars A and B are traveling around the circular race track. At the instant shown, A has a speed of 76 ft/s and is increasing its speed at the rate of 15 ft /s2, whereas B has a speed of 113 ft/s and is decreasing its speed at 25 ft /s2. (Figure 1) Determine the relative velocity of car A with respect to car B at this instant Express your answer to three significant figures and...
A race car C travels around the horizontal circular track that has a / radius of 300 ft Fis 12-28 If the car increases its speed at a constant rate of 7 ft/s, starting from rest, determine the time needed for it to reach an acceleration o f8ns what is its speed at this instant?- 300 ft F. 12-28 Fig. 12-28
available until you signif Four toy racecars are racing along a circular race track. The cars start at the 3-o'clock position and travel CCW along the tracks t = 4.46 Car B is constantly 3 feet from the center of the race track and travels at a constant speed. The angle Car B sweeps out increases at a constant rate of 2 radian per second. a. How many radians does car B sweep out in t seconds? Preview b. Define...
Racecar A is traveling on a straight portion of the track while racecar B is traveling on a circular portion of the track. The speed of racecar A is 265 km/h and the speed of racecar Bis 225 km/h. At the instant shown, the speed of A is increasing at the rate of 10 m/s2, and the speed of Bis decreasing at the rate of 6 m/s2. Consider the position shown. VA А B 50° 300 m VB Determine the...
Four toy racecars are racing along a circular race track. The cars start at the 3-o'clock position and travel CCW along the track 0.6 Car A is constantly 2 feet from the center of the race track and travels at a costant speed. The angle Car A swps out increases at a constant rate of 1 radian per second a How many radians 8 does car A sweep out in t seconds? = | Preview | b. Define a function...
At the instant shown, cars A and B are traveling at velocities of 58 m/s and 32 m/s , respectively. B is increasing its velocity by 2 m/s2, while A maintains a constant velocity. The radius of curvature at B is?B = 200 m.
Part A
Determine the magnitude of the velocity of B with respect to A.
Part B
Determine the direction angle of the velocity of B with respect to A.
Part C
Determine the magnitude of the...
Racecar A is traveling on a straight portion of the track while racecar B is traveling on a circular portion of the track. The speed of racecar A is 265 km/h and the speed of racecar Bis 225 km/h. At the instant shown, the speed of A is increasing at the rate of 10 m/s2, and the speed of Bis decreasing at the rate of 6 m/s2. Consider the position shown. VA А B 50° 300 m VB Determine the...
