(a) There are 4 types of solid membrane electrodes. Name each of them and draw a...

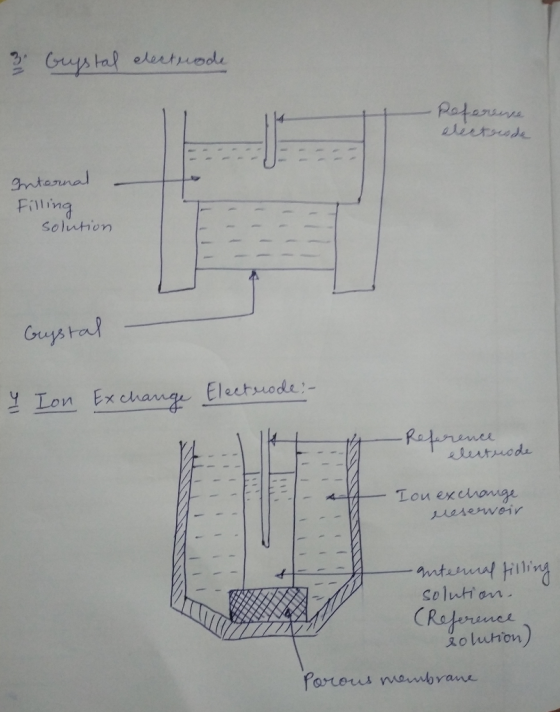

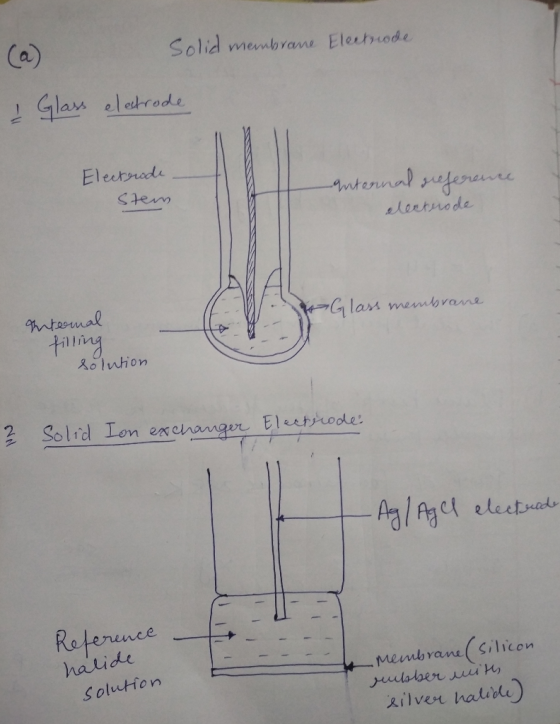

(a) There are 4 types of solid membrane electrodes. Name each of them and draw a diagram illustrating the key parts of a solid-state ion-selective electrode. [6 marks

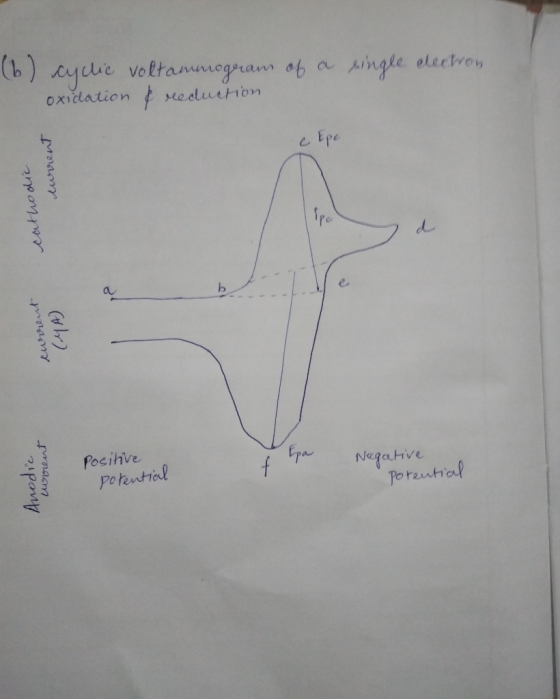

(b) Draw a typical cyclic voltammogram of a single electron oxidation-reduction and clearly label the diagram with the key information.
