The pressure coefficient at a point on a wing was measured in a wind tunnel to...
The pressure coefficient at a point on a wing was measured in a wind tunnel to be Cp = −0.3 at Mach 0.3. Assuming that this coefficient is invariant with Reynolds number, calculate the pressure at this exact point on the wing at Mach 0.3 when it is flown at these altitudes: (a) (4 points) h = 0 m (sea-level) (b) (2 points) h = 5000 m (c) (2 points) h = 12000 m
Homework Answers

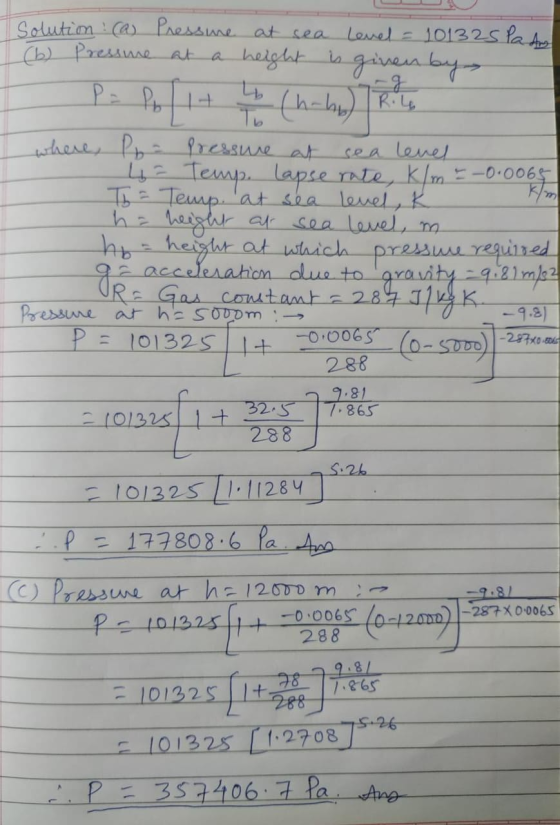

Summary: Pressure at sea
level=0325Pa.Pressure at h=5000m is 177808.6Pa and pressure at
h=12000m is 357406.7Pa
Add Answer to:
The pressure coefficient at a point on a wing was measured in a
wind tunnel to...
The pressure coefficient at a point on a wing was measured in a wind tunnel to...
The pressure coefficient at a point on a wing was measured in a wind tunnel to be Cp = −0.3 at Mach 0.3. Assuming that this coefficient is invariant with Reynolds number, calculate the pressure at this exact point on the wing at Mach 0.3 when it is flown at these altitudes: (a) (4 points) h = 0 m (sea-level) (b) (2 points) h = 5000 m (c) (2 points) h = 12000 m
Ex.3 /35 A Cessna 172 has a cruise speed V-226 km/h and weight W-1,000Kg. The wing area is S-16mt...
Ex.3 /35 A Cessna 172 has a cruise speed V-226 km/h and weight W-1,000Kg. The wing area is S-16mt with a wing span b-1lm Assuming the wing rectangular, what is the Reynolds number at an altitude z-1,000m. A model of this airplane, scaled by a factor of 2, is tested in a wind tunnel at sea level. What should be the velocity in the wind tunnel to have dynamics similarity (neglect Mach number effects). What will be the lift measured...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that the flow on the surface of the wing produce a laminar boundary layer and the velocity profile is given as follows; Determine the theoretical value of; 8" where Rex is the Reynold number at a distance x from the leading edge of the wing, Rei is the Reynolds number at the trailing edge of the wing and Cr (or Cp) is the average skin...
Problem 3 A wing is mounted in a wind tunnel in the manner shown below. It is free to rotate 0.1 ...
Problem 3 A wing is mounted in a wind tunnel in the manner shown below. It is free to rotate 0.1 C ahead of the leading edge. The centre of gravity of the wing is 0.4 C aft of the leading edge; the wing loading (W/S) 6.0 lb/ft. Other aerodynamic characteristics of the wing are: aerodynamic centre s at 024 when C h moe c int is 0 25. Tumel speed: 60 mph. Find the lift coefficient at which the...
HW#4 (Due 3/14/2019) Problem 1: (10pts) Consider a wing is mounted in a subsonic wind tunnel,...
HW#4 (Due 3/14/2019) Problem 1: (10pts) Consider a wing is mounted in a subsonic wind tunnel, where the airflow velocity is 50 m/s. If the velocity at a point on the wing is 60 m/s, what is the pressure coefficient at this point? Problem 2: (1Opts) In Problem 1, if the test section air temperature is 280 K, and if the flow velocity is increased point? to 200 m/s, what is the pressure coefficient at the same
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the...
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the test section, and the diffuser, as shown below. The test section has a circular cross section and it has a diameter of 0.5 m. Assume the wind tunnel is at sea level and the temperature and pressure of the atmosphere are given by standard atmospheric conditions. (a) If the test section is designed to have a velocity of 200 m/s, determine the Mach number,...
The drag of a sonar transducer is to be predicted, based on wind tunnel test data....
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cp is related to the...
18. In a wind-tunnel experiment the pressure on the top surface of each airpla was measured...
18. In a wind-tunnel experiment the pressure on the top surface of each airpla was measured to be 0.900 x 105 Pa, and the pressure on the bottom surfaces was 0.910 x 105 Pa. If the surface area of each wing is 40.0 m2, what is the net lift fo the airplane? a)7.2 x 106 N b) 8.0 x 104 N c) 3.6 x 106 N d) 4.0 x 104 N
The drag of a sonar transducer is to be predicted, based on wind tunnel test data....
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cd is related to the...
The drag of a sonar transducer is to be predicted, based on wind tunnel test data....
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cd is related to the...
Ex.3 /35 A Cessna 172 has a cruise speed V-226 km/h and weight W-1,000Kg. The wing area is S-16mt with a wing span b-1lm Assuming the wing rectangular, what is the Reynolds number at an altitude z-1,000m. A model of this airplane, scaled by a factor of 2, is tested in a wind tunnel at sea level. What should be the velocity in the wind tunnel to have dynamics similarity (neglect Mach number effects). What will be the lift measured...
b. A very thin wing section is being tested in a low speed wind-tunnel. Assuming that the flow on the surface of the wing produce a laminar boundary layer and the velocity profile is given as follows; Determine the theoretical value of; 8" where Rex is the Reynold number at a distance x from the leading edge of the wing, Rei is the Reynolds number at the trailing edge of the wing and Cr (or Cp) is the average skin...
Problem 3 A wing is mounted in a wind tunnel in the manner shown below. It is free to rotate 0.1 C ahead of the leading edge. The centre of gravity of the wing is 0.4 C aft of the leading edge; the wing loading (W/S) 6.0 lb/ft. Other aerodynamic characteristics of the wing are: aerodynamic centre s at 024 when C h moe c int is 0 25. Tumel speed: 60 mph. Find the lift coefficient at which the...
HW#4 (Due 3/14/2019) Problem 1: (10pts) Consider a wing is mounted in a subsonic wind tunnel, where the airflow velocity is 50 m/s. If the velocity at a point on the wing is 60 m/s, what is the pressure coefficient at this point? Problem 2: (1Opts) In Problem 1, if the test section air temperature is 280 K, and if the flow velocity is increased point? to 200 m/s, what is the pressure coefficient at the same
1. [20 pts] An indraft wind tunnel pulls air into an inlet, through a contraction, the test section, and the diffuser, as shown below. The test section has a circular cross section and it has a diameter of 0.5 m. Assume the wind tunnel is at sea level and the temperature and pressure of the atmosphere are given by standard atmospheric conditions. (a) If the test section is designed to have a velocity of 200 m/s, determine the Mach number,...
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cp is related to the...
18. In a wind-tunnel experiment the pressure on the top surface of each airpla was measured to be 0.900 x 105 Pa, and the pressure on the bottom surfaces was 0.910 x 105 Pa. If the surface area of each wing is 40.0 m2, what is the net lift fo the airplane? a)7.2 x 106 N b) 8.0 x 104 N c) 3.6 x 106 N d) 4.0 x 104 N
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cd is related to the...
The drag of a sonar transducer is to be predicted, based on wind tunnel test data. The prototype, a 1-ft diameter sphere, is to be towed at 5 knots (i.e. 8.44 ft/s) in seawater at 40°F. The model is 6 in. in diameter and the drag of the model is measured to be 0.6 lbf for wind tunnel air temperature at 70°F 1) (5 pts) Use Buckingham Pi Theorem to prove that the drag coefficient Cd is related to the...
