ALGORITHM AND DATA STRUCTURES Question Question 1: Convert the following binary tree into a heap using...
ALGORITHM AND DATA STRUCTURES Question
Question 1: Convert the following binary tree into a heap using
the Heapify algorithm. Draw the diagrams of the tree step by step
after every alteration.

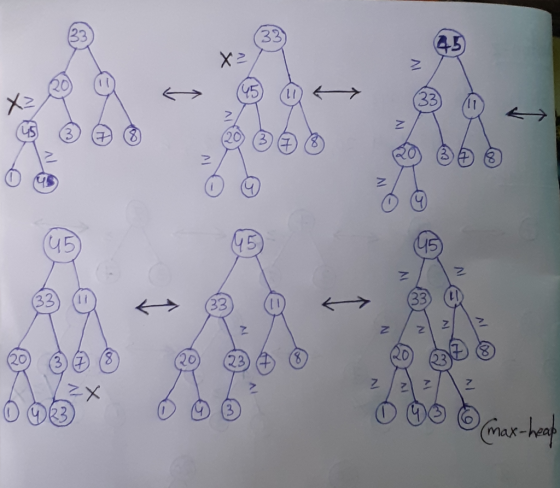

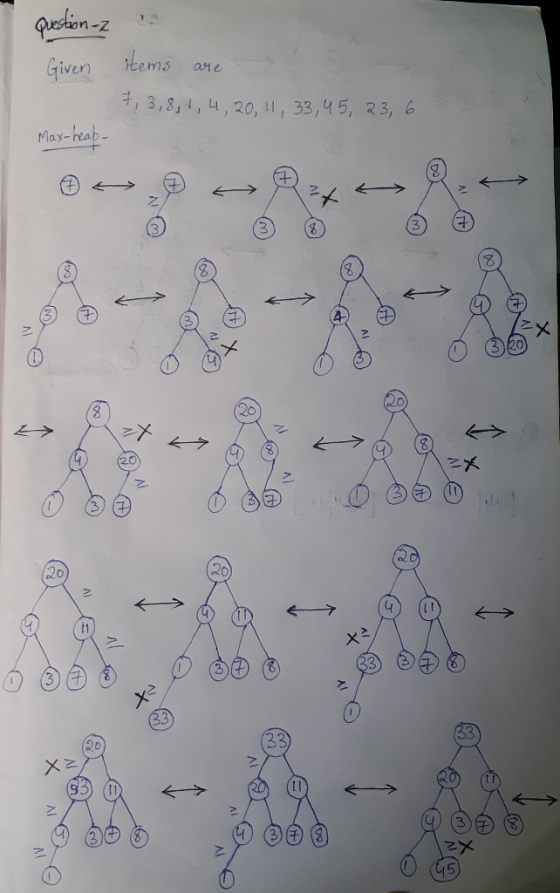

Question 2: Show the heap that results when the items are
inserted into the heap one by one, starting with one that is
empty.
7, 3, 8, 1, 4, 20, 11, 33, 45, 23, 6

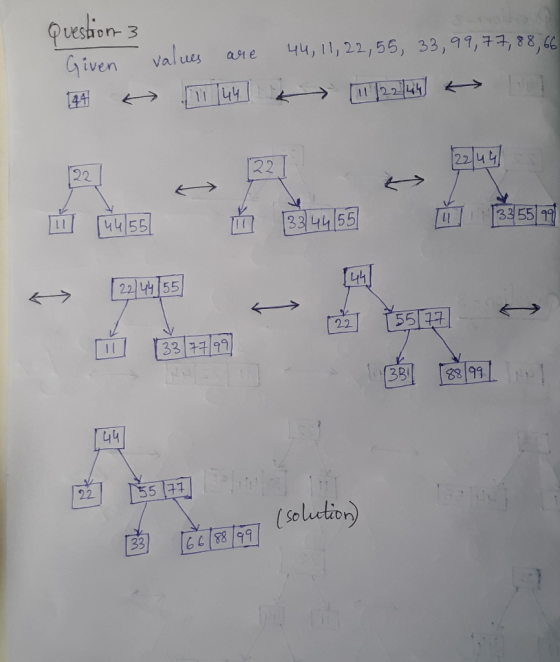

Question 3. Draw the 2-3-4 tree that results when values are
inserted in the order given :
44, 11, 22, 55, 33, 99, 77, 88, 66
Question 4: Construct a Red-Black tree for the list of numbers
given below:
45, 23, 11, 36, 34, 21, 78, 43, 88, 76
Question 5: For the tree given below, write the balance factor
of each vertex. Is the tree an AVL-tree? If not, convert it into an
AVL tree.
Homework Answers
