ADDiTionAl PRoblEms Cycloalkane isomers 4-27 Draw the five cycloalkanes with the formula C5H10.

Question

Question

ADDiTionAl PRoblEms

Cycloalkane isomers

4-27 Draw the five cycloalkanes with the formula C5H10.

science chemistry

Answer 1

Answer #1

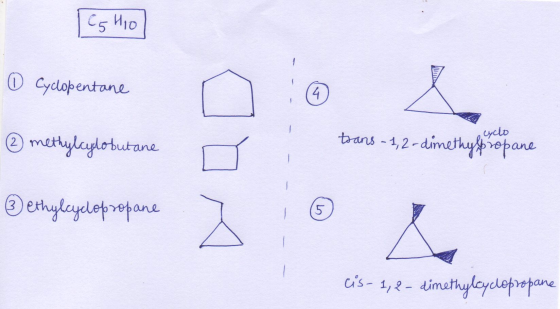

The cycloalkanes can be cyclopentane, cyclobutane and cyclopropane. See the attached image of solution:

Note that two of these: cis and trans 1,2-dimethylcyclopropane are geometrical isomers.
