Question

Write a program that prompts the user to input the x-y coordinate of a point in a Cartesian plane. The program should then output a message indicating whether the point is the origin, is located on the x ( or y ) axis, or appears in a particular quadrant.

using only iostream and functions

Answer 1

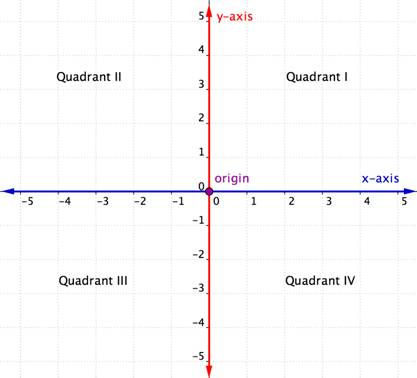

Sample x-y axis quadrant diagram:

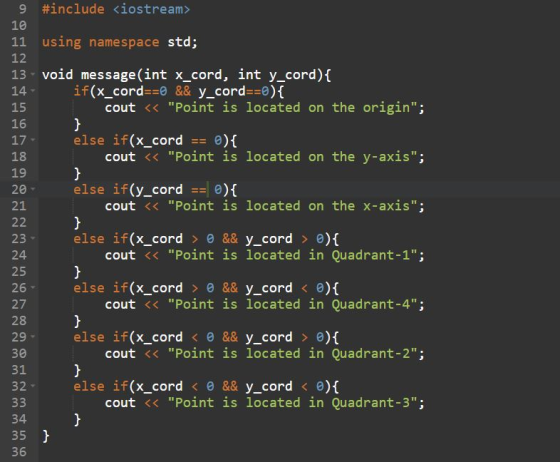

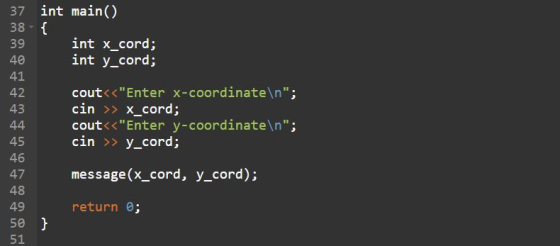

Screenshot of Code:

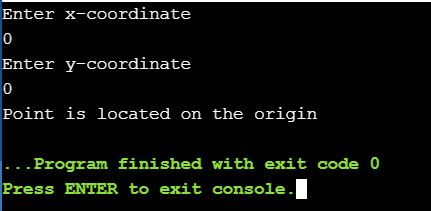

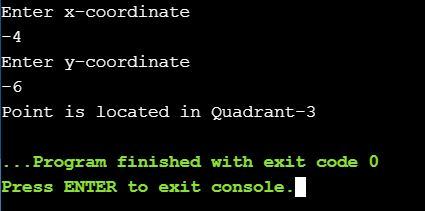

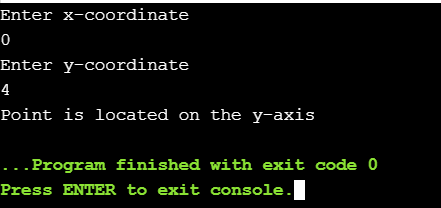

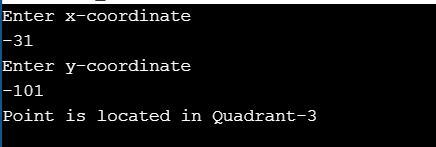

Sample Outputs:

Output 1:

Output 2:

Output 3:

Output 4:

Source Code:

Source Code:

#include <iostream>

using namespace std;

void message(int x_cord, int y_cord){
if(x_cord==0 && y_cord==0){
cout << "Point is located on the origin";
}
else if(x_cord == 0){
cout << "Point is located on the y-axis";
}
else if(y_cord == 0){
cout << "Point is located on the x-axis";
}
else if(x_cord > 0 && y_cord > 0){
cout << "Point is located in Quadrant-1";
}
else if(x_cord > 0 && y_cord < 0){
cout << "Point is located in Quadrant-4";
}
else if(x_cord < 0 && y_cord > 0){
cout << "Point is located in Quadrant-2";
}
else if(x_cord < 0 && y_cord < 0){
cout << "Point is located in Quadrant-3";
}
}

int main()
{
int x_cord;
int y_cord;

cout<<"Enter x-coordinate\n";
cin >> x_cord;
cout<<"Enter y-coordinate\n";
cin >> y_cord;

message(x_cord, y_cord);

return 0;
}
