Light is incident along the normal to face AB of a prism that has a refractive...

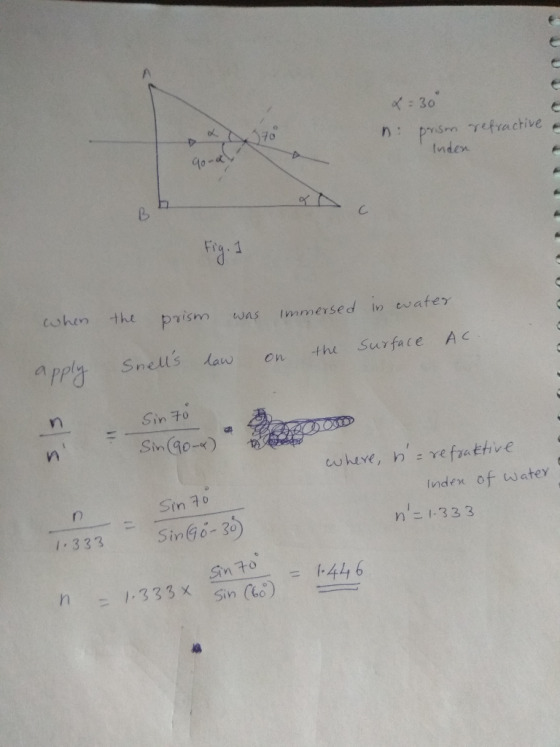

Light is incident along the normal to face AB of a prism that has a refractive index n and an angle α=30∘, as shown in (Figure 1). When the prism is in air, the light undergoes total internal reflection. However, when the prism is immersed in water, a faint refracted ray emerges at an angle of 70 ∘ to the normal of face AC. The index of refraction of water at this temperature is 1.333. Determine n. Express your answer to three significant figures.
Homework Answers
Add Answer to:
Light is incident along the normal to face AB of a prism that
has a refractive...
Light of wavelength 500nm traveling in air is incident along the normal on Face A of...
Light of wavelength 500nm traveling in air is incident along the
normal on Face A of a 60-60-60 glass prism of refractive index
1.52, as shown in the figure.
a) The refracted ray is incident to Face B. Calculate the angle
of incidence of the ray, the angle of refraction of the refracted
ray (if any) and the angle of reflection of the reflected ray. Draw
the rays.
b) The reflected ray at Face B is incident on Face C....
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on...
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
5. A ray of light is incident perpendicularly on the face ab of a glass prism...
5. A ray of light is incident perpendicularly on the face ab of a glass prism in air, as shown in the figure 2. Find the largest value for the angle 8 so that the ray is totally reflected at the face ac. Express the answer using the given variables. The indexes of refraction are n for the glass and 1 for the air, respectively. refraction index of the air 1 refraction index of the glassene bbor FIG. 2: To...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2=1.66. The index of refraction of the WATER is n=1.33. - A. Calculate the angle bi and show that the ray will Have total internal reflection B. What are the value of the angles C. If we added solution to the WATER to increase its index...
In the figure, a ray of light is perpendicular to the face ab of a prism...
In the figure, a ray of light is perpendicular to the face ab of a prism (n = 1.50). Find the largest value for the angle so that the ray is totally reflected at face ac if the prism is immersed (a) in air and (b) in water (n=1.33). (a) Number Units Units (b) Number
4. A ray of light falls on the surface of a spherical glass paper weight making...
4. A ray of light falls on the surface of a spherical glass paper weight making an angle ? with the normal and is refracted in the medium at an angle ? . The angle of deviation of the emergent ray from the direction of the incident ray is: and ph of e can (a) (?-?) (c) (a28) 5.A ray of light passes from vacuum into a medium of refractive index ?, the angle of incidence is found to be...
as shown in the figure below, a light ray is incident normal to one face of...
as
shown in the figure below, a light ray is incident normal to one
face of a 30-60-90 block of crown glass that is inmersed in
glycerine
As shown in the figure below, a light ray is incident normal to one face of a 30-60-909 block of crown glass that is immersed in glycerine 50 (a) Determine the exit angle 8, of the ray (b) A substance is dissolved in the glycerine to increase the index of refraction ng At...
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface,...
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface, as shown. A ray of light traveling horizontally, enters the prism on its vertical face, as shown. If the labeled angle is O= 470, then will there be total internal reflection when the light ray strikes the slanted face of the prism? Show your work IDENTIFY: Fill in the blanks with "vertical", "horizontal","zero" or "90". The normal to the vertical face of the prism...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2:...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
Light of wavelength 500nm traveling in air is incident along the
normal on Face A of a 60-60-60 glass prism of refractive index
1.52, as shown in the figure.
a) The refracted ray is incident to Face B. Calculate the angle
of incidence of the ray, the angle of refraction of the refracted
ray (if any) and the angle of reflection of the reflected ray. Draw
the rays.
b) The reflected ray at Face B is incident on Face C....
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
5. A ray of light is incident perpendicularly on the face ab of a glass prism in air, as shown in the figure 2. Find the largest value for the angle 8 so that the ray is totally reflected at the face ac. Express the answer using the given variables. The indexes of refraction are n for the glass and 1 for the air, respectively. refraction index of the air 1 refraction index of the glassene bbor FIG. 2: To...
P[roble# 1. A light ray is incident normally (i.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2=1.66. The index of refraction of the WATER is n=1.33. - A. Calculate the angle bi and show that the ray will Have total internal reflection B. What are the value of the angles C. If we added solution to the WATER to increase its index...
In the figure, a ray of light is perpendicular to the face ab of a prism (n = 1.50). Find the largest value for the angle so that the ray is totally reflected at face ac if the prism is immersed (a) in air and (b) in water (n=1.33). (a) Number Units Units (b) Number
4. A ray of light falls on the surface of a spherical glass paper weight making an angle ? with the normal and is refracted in the medium at an angle ? . The angle of deviation of the emergent ray from the direction of the incident ray is: and ph of e can (a) (?-?) (c) (a28) 5.A ray of light passes from vacuum into a medium of refractive index ?, the angle of incidence is found to be...
as
shown in the figure below, a light ray is incident normal to one
face of a 30-60-90 block of crown glass that is inmersed in
glycerine
As shown in the figure below, a light ray is incident normal to one face of a 30-60-909 block of crown glass that is immersed in glycerine 50 (a) Determine the exit angle 8, of the ray (b) A substance is dissolved in the glycerine to increase the index of refraction ng At...
14) A glass prism with an index of refraction of 1.53 sits on a horizontal surface, as shown. A ray of light traveling horizontally, enters the prism on its vertical face, as shown. If the labeled angle is O= 470, then will there be total internal reflection when the light ray strikes the slanted face of the prism? Show your work IDENTIFY: Fill in the blanks with "vertical", "horizontal","zero" or "90". The normal to the vertical face of the prism...
PH 142 Labs Normal Material 1: Refractive index n Incident Ray 0 1Rflected Ray Material 2: Refractive index n I Refracted Ray Figure 5.1. Reflection and refraction of a light ray at the interface of two optically different media.
