A power plant operates at a 25.5% efficiency during the summer when the seawater used for...

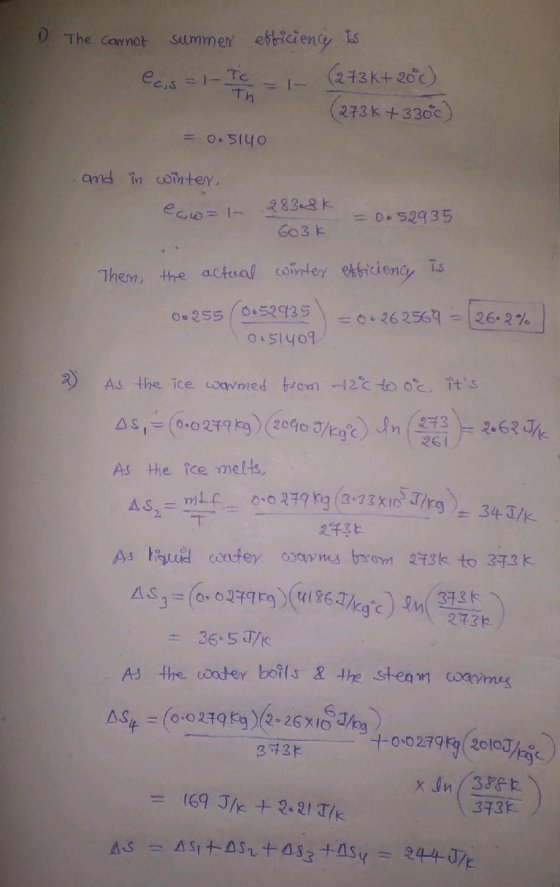

A power plant operates at a 25.5% efficiency during the summer
when the seawater used for cooling is at 20.0°C. The plant uses
330°C steam to drive turbines. If the plant's efficiency changes in
the same proportion as the ideal efficiency, what would be the
plant's efficiency in the winter, when the seawater is at
10.8°C?
______________%
What change in entropy occurs when a 27.9 g ice cube at -12°C is
transformed into steam at 115°C?
______________________
Homework Answers
Add Answer to:
A power plant operates at a 25.5% efficiency during the summer
when the seawater used for...
