3. Suppose that the subnet bits below for the following five subnets A-E all come from...

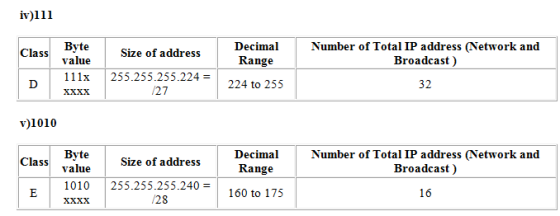

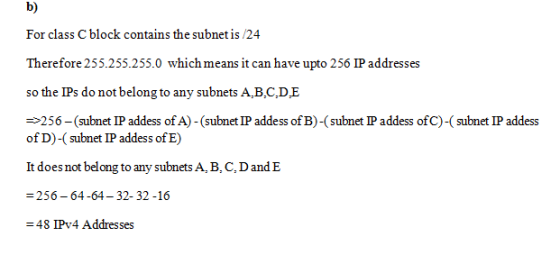

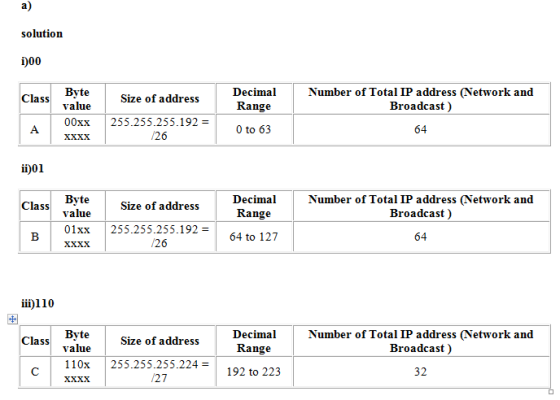

3. Suppose that the subnet bits below for the following five subnets A-E all come from the beginning of the fourth byte of the IPv4 address; that is, these are subnets of a /24 block. • A: 00 • B: 01 • C: 110 • D: 111 • E: 1010 (a). What are the sizes of each subnet, and the corresponding decimal ranges? Count the addresses with host bits all 0’s or with host bits all 1’s as part of the subnet. (b). How many IPv4 addresses in the class-C block do not belong to any of the subnets A, B, C, D and E? I'm not just looking for the answer- I'm more looking for a walkthrough!

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
3. Suppose that the subnet bits below for the following five subnets A-E all come from...
