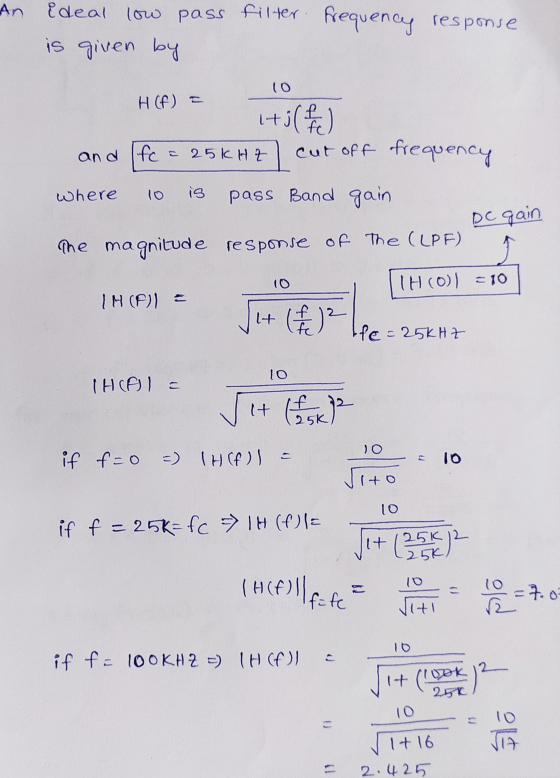

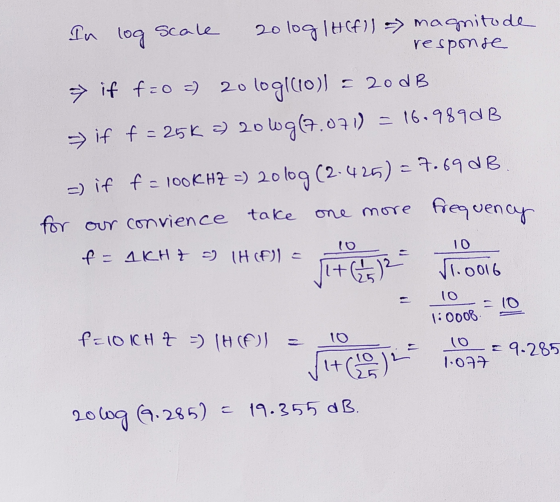

An ideal lowpass filter has a cut-off frequency of 25 kHz and a gain magni- tude...
Design lowpass IIR filter with the following specifications: Filter order = 2, Butterworth type Cut-off frequency=800 Hz Sampling rate =8000 Hz Design using the bilinear z-transform design method Print the lowpass IIR filter coefficients and plot the frequency responses using MATLAB. MATLAB>>freqz(bLP,aLP,512,8000); axis([0 4000 –40 1]); Label and print your graph. What is the filter gain at the cut-off frequency 800 Hz? What are the filter gains for the stopband at 2000 Hz and the passband at 50 Hz based...
Oversampled ADC Problem:
Consider an ideal lowpass filter with a passband gain of A 2 1 and a cutoff frequency of e < f/2. For what value of Fe is the power gain equal to one
Consider an ideal lowpass filter with a passband gain of A 2 1 and a cutoff frequency of e
6. (20 points) (1) Design an analog lowpass filter with a cut-off frequency of 9 rad/sec by starting with an analogue prototype first-order lowpass filter with cut-off frequency of 1 rad/sec. Show the system transfer function H(s) (2) Design an IIR digital filter Hz) that corresponds to the above H(s) by using the bilinear transform method without prewarping with T 0.1 second. Show the system transfer function Hz) and find its corresponding digital cut-off frequency Be approximately (3) What is...
(a) Design a first–order high-pass filter with a cutoff frequency fc = 1.5 kHz and a passband gain |Ao| = 20dB, using a capacitor C = 47nF. Include a compensation resistor and determine its value. (b) Sketch the frequency response for the circuit (i.e., magnitude vs. frequency and phase vs. frequency). On the magnitude response plot, indicate the cutoff frequency, bandpass gain, and bandstop rolloff slope. On the phase response plot, indicate the approximate value of the phase angle at...
Figure 2 below shows a bode-plot of a Butterworth response filter, with cut-off frequency, fc of 95 kHz and damping factor, a of 1. Define roll-off rate and explain how it effects the frequency response of this filter. Then, modify the frequency response to have a -80 dB/decade roll-off rate by redesigning the filter with appropriate structure and components value. Draw your filter design. Gain (normalized to 1) OdB -3 dB Actual response of a single-pole RC filter – Passband...
The following periodic signal is input to an ideal low pass filter of bandwidth 25 KHz. 1. x(t) 2 a) Determine the average power of the signal x(t). b) If T 0.1 ms, give the output of the filter as a function of time, y(t) e) Determine the average power of the signal y(t) d) Determine the bandwidth of the signal y(), considered as a baseband signal. e) Now assume that the signal x() (with T-0.1 ms) is instead input...
For the particular lowpass filter you constructed in lab (f3dB ~
1 kHz) plot |H(f)| over the frequency range (0, 100 kHz) on a
semilogarithmic scale for the frequency, and use a linear scale in
dB for the vertical axis. To calculate|H(f)| simply solve for the
output voltage in terms of the input voltage—it should be a simple
voltage divider using the impedances of the capacitor and resistor.
using MatLab
R = 50
L= 0.1
C = 1X10^6
in T...
12. Design a fourth order, 2 dB Chebyshev highpass filter with a cutoff frequency of 2.4 kHz a. Draw the circuit, labeling Vin, Yout, and all component values. (14 points) and a passband gain of 0 dB. Use capacitor values of 3300 pF an approximation of the Bode plot of the magnitude transfer function IH(ia) in dB, İndicating the ripple, the cutoff frequency, and the approximate filter roll-off in dB/decade. Note, this does not reguire solving for the function. (6...
TE Question 5 (20 marks) An active filter circuit is shown in Fig. 4. The cut-off frequency of this active filter is 1590Hz. The Input impedance and voltage gain of this filter are 10k0 and -5VN respectively Vout R1 vin R2 C1 Fig. 4 By assuming the operational amplifier, A is ideal, answer the following questions: (a) () State the type of this active fiter. (i) Explain the characteristic of this active filter. [2 marks] 3 marks] (b) 0) Calculate...
7.3. Design a 5-tap FIR lowpass filter with a cutoff frequency of 100 Hz and a sampling rate of 1,000 Hz using a a. rectangular window function b. Hamming window function Determine the transfer function and difference equation of the designed FIR system, and compute and plot the magnitude frequency response for ?--0, ?/4, ?/2, 3r/4, and ? radians.
