9. i) What is a yield locus? ii) Draw a schematic yield locus for an isotropic...
9. i) What is a yield locus? ii) Draw a schematic yield locus for an isotropic material using both Von Mises and Tresca criteria.
Homework Answers

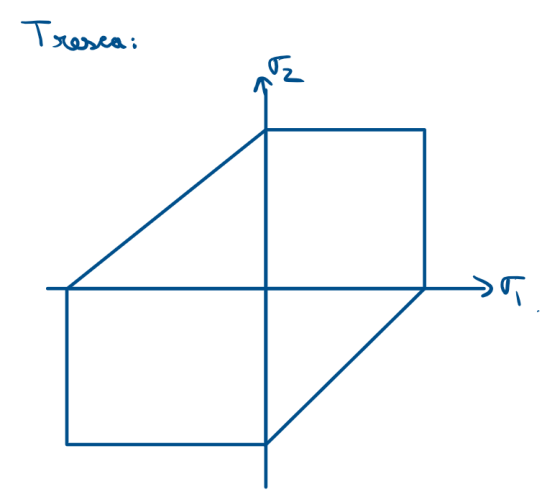

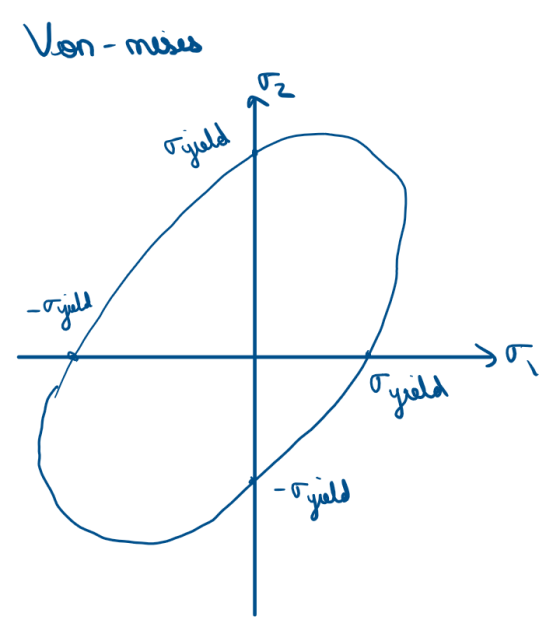

A yield locus or a yield surface which quantifies whether the material has yielded or not. It is usually convex and inside this surface, the linear elastic state of stress exists. However, if the state of stress lies on the surface, the material has reached its yield point and if it lies outside the surface, failure has occurred. Safe region is inside the yield locus
 |
|||
 |
|||
