The engine of an automobile supplies 200 hp at 5000 rpm to the drive shaft. If...
The engine of an automobile supplies 200 hp at 5000 rpm to the drive shaft. If the maximum shearing stress in the drive shaft must be limited to 6 ksi, determine

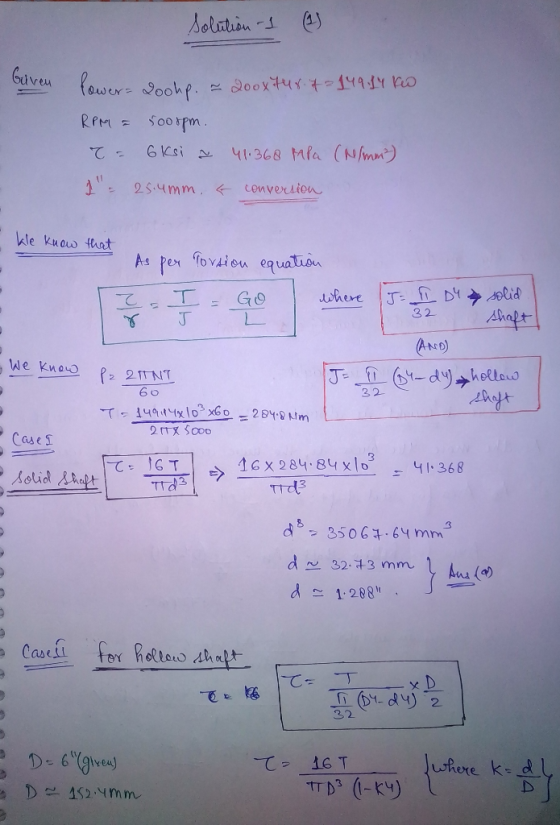

a) The minimum diameter for a solid driveshaft.
b) The maximum inside diameter permitted for a hollow drive shaft if the outside diameter is 6 inches.

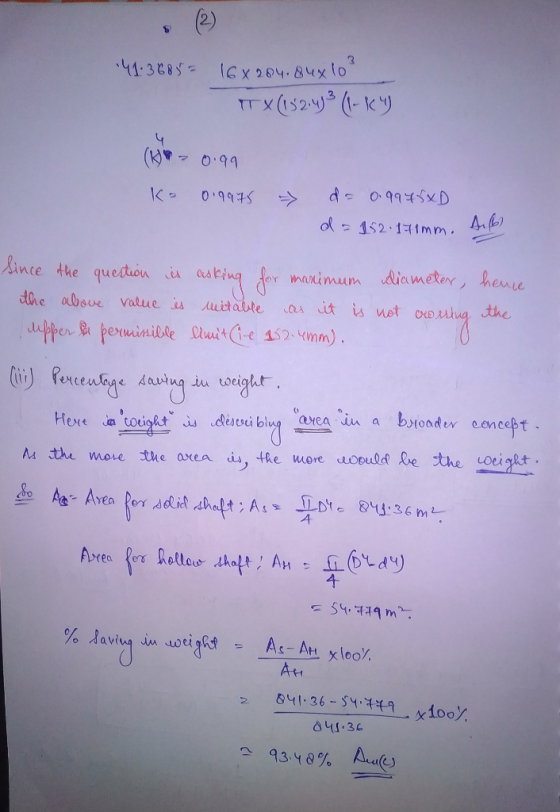

c) The percentage savings in weight realized if the hollow shaft is designed instead of the solid shaft.

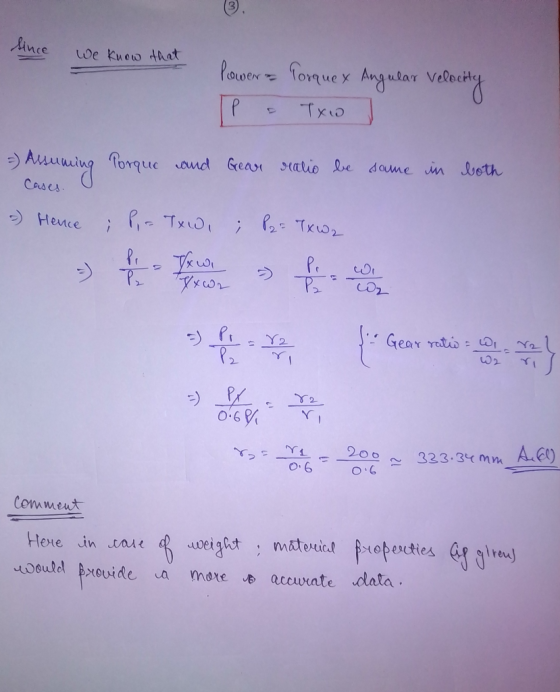

d) If the engine supplies power to a gear of 200 mm dia which in turn supply 60% of the engine power to a machine through another supply gear. Find the radius of the supply gear
Please do all the part step by step. Kindly provide the right solution. I already asked 4 times and I did not get right answer.
Homework Answers
Add Answer to:
The engine of an
automobile supplies 200 hp at 5000 rpm to the drive shaft. If...
Select a diameter of a steel driveshaft that transmits 250 hp at 5000 rpm. Bending and...
Select a diameter of a steel driveshaft that transmits 250 hp at 5000 rpm. Bending and axial load are negligible. Note: Select the diameter as 3 inches What is the nominal shear stress at the surface? If a hollow shaft of inside diameter 0.9 times outside diameter is used, what outside diameter would be required to give the same outer-surface stress? How do the weights of the solid and hollow shaft compare? Rotation unknown diameter 250 hp, n = 5000...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a 1) A die with a ratio of 4 to 1 to the propeller as shown below. Because the propeller shaft gearbox ed is four times that of the crank shaft, the torque on the propeller shaft is one-fourth that spe o the crank shaft. Both the shaft from the engine to the gearbox and the propeller shaft are to be solid and made of...
4.14D Select a diameter of a steel driveshaft that transmits 250 hp at 5000 rpm. Bending...
4.14D Select a diameter of a steel driveshaft that transmits 250 hp at 5000 rpm. Bending and axial loads are negligible. What is the nominal shear stress at the surface? If a hollow shaft of inside diameter 0.9 times outside diameter is used, what outside diameter would be required to give the same outer surface stress? How do the weights of the solid and hollow shafts compare?
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto...
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto machine tools connected to gears Gand H. Knowing that Tall = 7.2 ksi and that 40 hp is taken off at gear G and 20 hp is taken off at gear H, determine the smallest permissible diameter of shaft AE. (Round the final answer to three decimal places.) 6 in 3 in СЕ 4 in The smallest permissible diameter of shaft AE is
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp...
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp through a flexible coupling. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20 degrees and a helix angle of 15 degrees. The pitch diameter for the gear is 4.141 inches (De) and the Tangential (Wu), radial (W) and axial/thrust (W) are shown below on the drawing. The shaft is to be made...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shaft...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to flange A of the shaft. Gear B transfers 63hp of power to operating machinery in the factory, and the remaining pow in the factory, and the remaining power in the shaft is transferred by i te s stonuee th gear D. Shafts (1) and (2) are solid aluminum [G 4600 ksi] shafts that have the same diameter and an allowable shear stress of 5.9...
A solid 1.25 in. diameter shaft is used in an aircraft engine to transmit 140 hp...
A solid 1.25 in. diameter shaft is used in an aircraft engine to transmit 140 hp at 2930 rpm to a propeller that develops a thrust of 1700 lb. Determine the magnitudes of the principal stresses and the maximum shear stress at any point on the outside surface of the shaft. Enter the principal stresses at any point on the outside surface of the shaft. Use the sign convention that a tension normal stress is positive and a compression normal...
Desgin 0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Select a diameter of a steel driveshaft that transmits 250 hp at 5000 rpm. Bending and axial load are negligible. Note: Select the diameter as 3 inches What is the nominal shear stress at the surface? If a hollow shaft of inside diameter 0.9 times outside diameter is used, what outside diameter would be required to give the same outer-surface stress? How do the weights of the solid and hollow shaft compare? Rotation unknown diameter 250 hp, n = 5000...
sel engine for a commercial boat operates at 200 rpm and delivers 800 hp through a 1) A die with a ratio of 4 to 1 to the propeller as shown below. Because the propeller shaft gearbox ed is four times that of the crank shaft, the torque on the propeller shaft is one-fourth that spe o the crank shaft. Both the shaft from the engine to the gearbox and the propeller shaft are to be solid and made of...
The solid shaft AE rotates at 600 rpm and transmits 60 hp from the motor Mto machine tools connected to gears Gand H. Knowing that Tall = 7.2 ksi and that 40 hp is taken off at gear G and 20 hp is taken off at gear H, determine the smallest permissible diameter of shaft AE. (Round the final answer to three decimal places.) 6 in 3 in СЕ 4 in The smallest permissible diameter of shaft AE is
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp through a flexible coupling. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20 degrees and a helix angle of 15 degrees. The pitch diameter for the gear is 4.141 inches (De) and the Tangential (Wu), radial (W) and axial/thrust (W) are shown below on the drawing. The shaft is to be made...
Question 1 The motor shown in Fig. 1 supplies power to Gear C through solid steel motor shaft GF (having a diamet of 200 mm) and Gear F. The torque delivered to Gear C is 200 kNm. Gears A, B, D and E supply powers to er three machines. The torques delivered by gear A, gear B and gear E to the machines are 60 kNm, 30 kNm and 40 kNm, respectively. Shaft ABCDE is also made of steel (G...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to flange A of the shaft. Gear B transfers 63hp of power to operating machinery in the factory, and the remaining pow in the factory, and the remaining power in the shaft is transferred by i te s stonuee th gear D. Shafts (1) and (2) are solid aluminum [G 4600 ksi] shafts that have the same diameter and an allowable shear stress of 5.9...
A solid 1.25 in. diameter shaft is used in an aircraft engine to transmit 140 hp at 2930 rpm to a propeller that develops a thrust of 1700 lb. Determine the magnitudes of the principal stresses and the maximum shear stress at any point on the outside surface of the shaft. Enter the principal stresses at any point on the outside surface of the shaft. Use the sign convention that a tension normal stress is positive and a compression normal...
Desgin
0.2) Figure Q.2 shows a drive system in which a 20-hp electric motor drives separate output shafts. Gear A is mounted on the motor shafit that has a rotational spoed or 1750 rpm clockwise. Gear A drives gear train consisting of…B,C,and D thr deliver power through the shafts on which they are mounted. All gears have a diametral pitch of Pa-8.The following data are given Power delivered by gears B, C, and D: Pa Numbers of teeth for all...
