Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 ,...
Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 , and 80 m/s and the exit conditions are 30 kPa, 92 percent quality and 50 m/s. The mass flow rate of the steam is 12 kg/s and the heat loss from the turbine body to environment is 1 MW. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area
Homework Answers

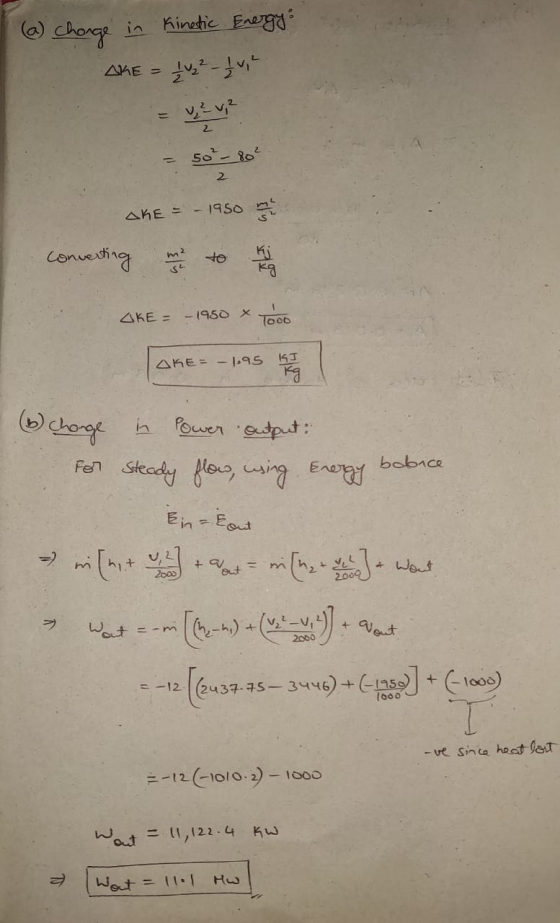

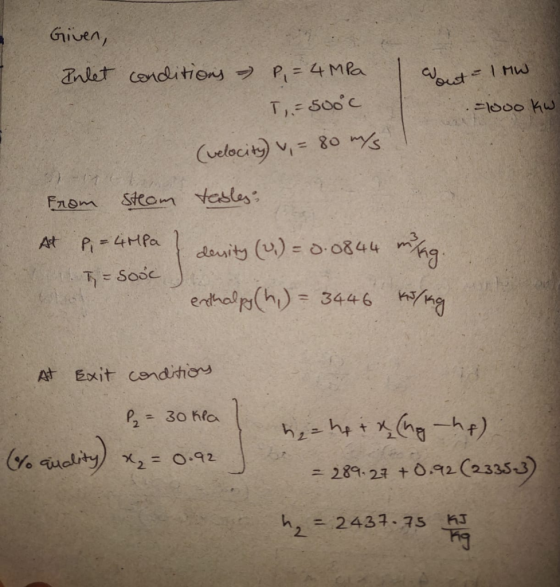

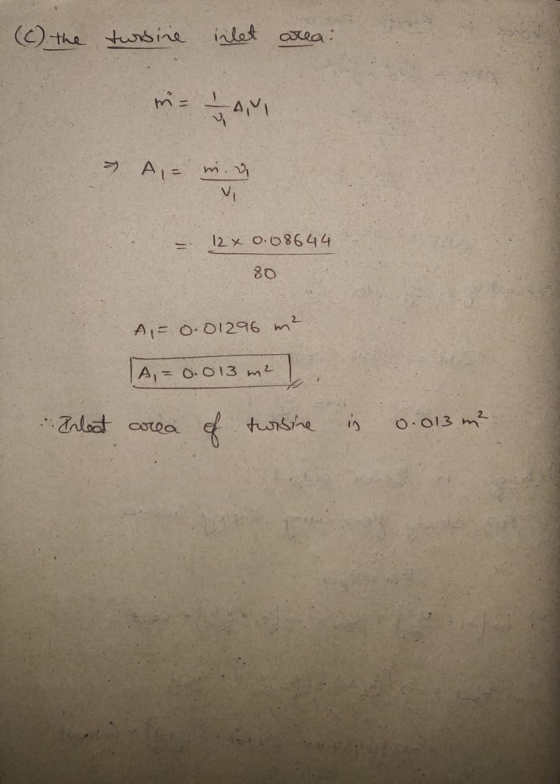

The enthalpies at the inlet and outlet of the turbine are taken from the steam tables at respective temperatures and pressures. The work output of a turbine is calculated using the steady flow equation by balancing the energy input and output.
Add Answer to:
Steam flows through a turbine. The inlet conditions of the steam
are 4 MPa, 500 ,...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa,...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa, 400°C, and 80 m/s, and the exit conditions are 40 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 20 kg/s. Determine (a ) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area.
Steam flows steadily through an adiabatic turbine
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are...
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 10 MPa, 400 C, and 80 m/s, and the exit conditions are 10 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area. Pi = 10 MPa 7, = 400 °C V1 80 m/s No STEAM 3 12 kg/s ▼Sh...
Steam flows steadily through an adiabatic turbine. (c) BY-NC- Niel Crews, 2013 The inlet conditions of...
Steam flows steadily through an adiabatic turbine. (c) BY-NC- Niel Crews, 2013 The inlet conditions of the steam are: pressure = 10 MPa temperature = 450 °C velocity = 80 m/s The exit conditions are: pressure = 10 kPa quality = 0.92 velocity = 50 m/s a) What is the temperature of the fluid at the turbine exit? b) What is the power output of the turbine, per unit mass of the working fluid?
Steam expands through a well-insulated turbine from inlet conditions 300c and 4 Mpa with negligible velocity...
Steam expands through a
well-insulated turbine from inlet conditions 300c and 4 Mpa with
negligible velocity to exit conditions 40m/s and 0.075Mpa. The
turbine is operating at steady state and has an exit diameter of
0.6Mpa. Select two different values of exit quality in the range of
0.2 to 0.5 and subsequently plot the power generated by the turbine
in kw
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to...
Steam enters a turbine at 9 MPa and T1°C and leaves at 20 kPa with a...
Steam enters a turbine at 9 MPa and T1°C and leaves at 20 kPa with a quality equal to 0.60. Neglecting the changes in kinetic and potential energies, determine T1 if the mass flow rate through the turbine is 4 kg/s. The turbine’s power output is 7.5 MW and the heat loss from the turbine is 5 kJ/kg.
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with...
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to exit conditions 40 m/s and 0.075 MPa. The turbine is operating at steady state and has an exit diameter of 0.6 m. Select two (2) different values of exit quality in the range of 0.2 to 0.5 and subsequently plot the power generated by the turbine in kW. (10 MARKS]
its the power output in KW In a power plant, steam enters a turbine steadily at...
its
the power output in KW
In a power plant, steam enters a turbine steadily at 10 MPa and 600°C with a velocity 65 m/s and leaves at 125 kPa with a 96 percent quality. A heat loss of 22 kJ/kg occurs during the process. The inlet area of the turbine is 140 cm². Determine (a) the mass flow rate of the steam and (b) the power output.
Steam flows through a turbine at a rate of 19.3 kg/s. It enters the turbine at...
Steam flows through a turbine at a rate of 19.3 kg/s. It enters the turbine at 500°C and 5 MPa and leaves at 250°C and 500 kPa If the turbine is operated adiabatically, what is the power produced by the turbine? MW It is discovered that this turbine only produces 6.581 MW of power, what is rate of energy loss due to heat transfer? kW Given the actual rate of work supplied by the turbine, what is the efficiency of...
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C...
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 4 MPa, 500°C, and 80 m/s, and the exit conditions are 30 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine a. (3) Change in kinetic energy (-23.4 kJ) b. (4) Power output (12.12 MW) c. (3) Turbine inlet area (0.012966 m2)
Problem 3 Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 10 MPa, 400 C, and 80 m/s, and the exit conditions are 10 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 12 kg/s. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area. Pi = 10 MPa 7, = 400 °C V1 80 m/s No STEAM 3 12 kg/s ▼Sh...
Steam flows steadily through an adiabatic turbine. (c) BY-NC- Niel Crews, 2013 The inlet conditions of the steam are: pressure = 10 MPa temperature = 450 °C velocity = 80 m/s The exit conditions are: pressure = 10 kPa quality = 0.92 velocity = 50 m/s a) What is the temperature of the fluid at the turbine exit? b) What is the power output of the turbine, per unit mass of the working fluid?
Steam expands through a
well-insulated turbine from inlet conditions 300c and 4 Mpa with
negligible velocity to exit conditions 40m/s and 0.075Mpa. The
turbine is operating at steady state and has an exit diameter of
0.6Mpa. Select two different values of exit quality in the range of
0.2 to 0.5 and subsequently plot the power generated by the turbine
in kw
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to...
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to exit conditions 40 m/s and 0.075 MPa. The turbine is operating at steady state and has an exit diameter of 0.6 m. Select two (2) different values of exit quality in the range of 0.2 to 0.5 and subsequently plot the power generated by the turbine in kW. (10 MARKS]
its
the power output in KW
In a power plant, steam enters a turbine steadily at 10 MPa and 600°C with a velocity 65 m/s and leaves at 125 kPa with a 96 percent quality. A heat loss of 22 kJ/kg occurs during the process. The inlet area of the turbine is 140 cm². Determine (a) the mass flow rate of the steam and (b) the power output.
Steam flows through a turbine at a rate of 19.3 kg/s. It enters the turbine at 500°C and 5 MPa and leaves at 250°C and 500 kPa If the turbine is operated adiabatically, what is the power produced by the turbine? MW It is discovered that this turbine only produces 6.581 MW of power, what is rate of energy loss due to heat transfer? kW Given the actual rate of work supplied by the turbine, what is the efficiency of...
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...
