Two thin slits separated by 0.0765 mm are illuminated by light from a He-Ne laser (λ...

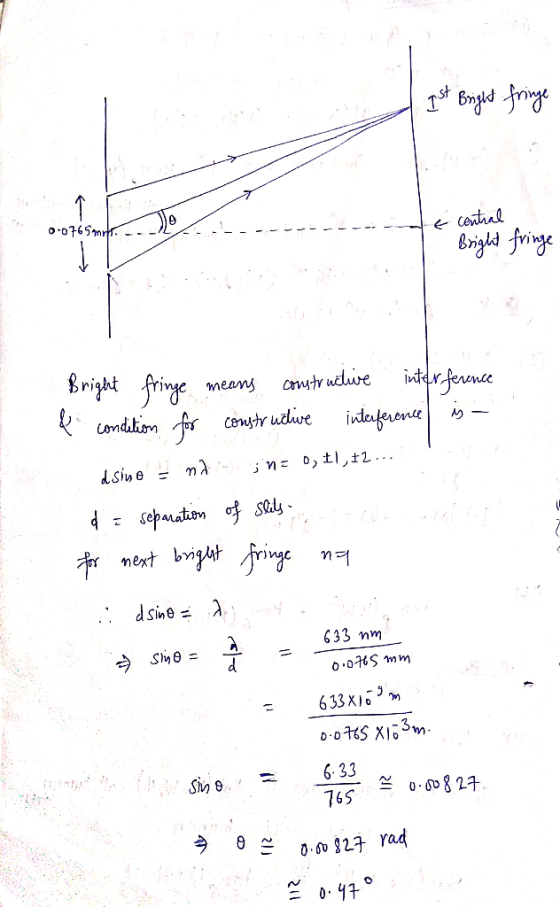

Two thin slits separated by 0.0765 mm are illuminated by light from a He-Ne laser (λ = 633 nm), producing interference fringes on a distant screen. Find the angle between the centers of the central bright fringe and the next bright fringe.
Homework Answers
Add Answer to:
Two thin slits separated by 0.0765 mm are illuminated by light
from a He-Ne laser (λ...
Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ...
Two thin slits separated by 2.2 mm are illuminated by light from a He-Ne laser (λ = 633 nm), producing interference fringes on a distant screen. Find the angle between the centers of the central bright fringe and the next bright fringe. (in degrees)
Constant Two thin parallel slits that are 1.24x10-2 mm apart are illuminated by a laser beam...
Constant Two thin parallel slits that are 1.24x10-2 mm apart are illuminated by a laser beam of wavelength 582 nm Part A On a very large distant screen, what is the total number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both sides of it? Solve this problem without calculating all the angles! (Hint: What is the largest that sin can be? What does this tell you is the largest value of m?)...
Part Two thin parallel slits that are 1.24 102mm apart are illuminated by a laser beam...
Part Two thin parallel slits that are 1.24 102mm apart are illuminated by a laser beam of wavelength 582 nm On a very large distant screen, what is the fotal number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both ides of it? Solve this problem without calculating all the anglesl (Hint: What is the largest that sin 8can be? What does this tell you is the largest value of m? Submit Request...
Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits....
Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits. The interference pattern is observed on a screen 2.5 m behind the slits. Eleven bright fringes are seen, spanning a distance of 50 mm . What is the spacing (in mm) between the slits?
Two slits are separated by 2.10 × 10-5 m and illuminated by a laser. The interference...
Two slits are separated by 2.10 × 10-5 m and illuminated by a laser. The interference pattern is projected on a screen that is 2.00 m away from the slits. If the 5th bright fringe on the screen is 15.0 cm away from the central fringe, what is the wavelength of the laser light? a. 224 nm b. 234 nm c. 100 nm d. 315 nm e. 204 nm
Light at 633 nm from a helium–neon laser shines on a pair of parallel slits separated...
Light at 633 nm from a helium–neon laser shines on a pair of parallel slits separated by 1.45 x10^-5 m and an interference pattern is observed on a screen 2.00 m from the plane of the slits. (a) Find the angle (in degrees) from the central maximum to the first bright fringe. (b) At what angle (in degrees) from the central maximum does the second dark fringe appear? (c) Find the distance (in m) from the central maximum to the...
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing...
Two narrow, parallel slits separated by 0.850 mm are illuminated by 570-nm light, and the viewing screen is 2.70 m away from the slits. (a) What is the phase difference between the two interfering waves on a screen at a point 2.50 mm from the central bright fringe? rad (b) What is the ratio of the intensity at this point to the intensity at the center of a bright fringe? I Imax
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
A pair of narrow, parallel slits separated by 0.220 mm isilluminated by green light (λ...
A pair of narrow, parallel slits separated by 0.220 mm is illuminated by green light (λ = 546.1 nm). The interference pattern is observed on a screen 1.50 m away from the plane of the parallel slits.(a) Calculate the distance from the central maximum to the first bright region on either side of the central maximum. ____mm(b) Calculate the distance between the first and second dark bands in the interference pattern. ____mm
Constant Two thin parallel slits that are 1.24x10-2 mm apart are illuminated by a laser beam of wavelength 582 nm Part A On a very large distant screen, what is the total number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both sides of it? Solve this problem without calculating all the angles! (Hint: What is the largest that sin can be? What does this tell you is the largest value of m?)...
Part Two thin parallel slits that are 1.24 102mm apart are illuminated by a laser beam of wavelength 582 nm On a very large distant screen, what is the fotal number of bright fringes (those indicating complete constructive interference), including the central fringe and those on both ides of it? Solve this problem without calculating all the anglesl (Hint: What is the largest that sin 8can be? What does this tell you is the largest value of m? Submit Request...
PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS
D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...
A laser beam ( - 632.6 nm) is incident on two slits 0.200 mm apart. How far apart are the bright interference fringes on a screen 5 m away from the double slits? cm 2. (-/10 Points) DETAILS SERCP7 24.P.002. MY NOTES PRACTICE ANOTHER In a Young's double-slit experiment, a set of parallel sits with a separation of 0.050 mm is illuminated by light having a wavelength of 593 nm and the interference pattern observed on a screen 3.50 m...
