The speed of light in a certain piece of clear plastic is 1.85 ✕ 108 m/s....

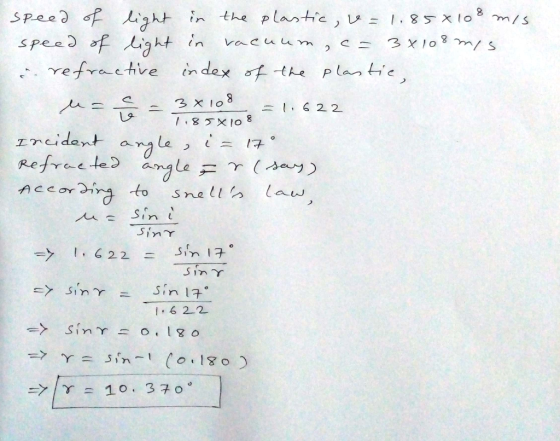

The speed of light in a certain piece of clear plastic is 1.85 ✕ 108 m/s. A ray of light strikes the plastic at an angle of 17°. At what angle is the ray refracted?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1


0 0
Add a comment
Know the answer?
Add Answer to:
The speed of light in a certain piece of clear plastic is 1.85 ✕ 108 m/s....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle...

    Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle of reflection is 45 degrees, The light speed in the plastic is 2.5 x 108 m/s. What is the angle of refraction?

  • Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle...

    Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle of reflection is 45 degrees, The light speed in the plastic is 2.5 x 108 m/s. What is the angle of refraction?

  • Light travels at a speed of 1.862 × 108 m/s in a certain substance. What is...

    Light travels at a speed of 1.862 × 108 m/s in a certain substance. What is the index of refraction of this substance? Use 2.998 × 108 m/s for the speed of light in a vacuum.

  • A light ray is travelling at 1.33 x 108 m/s through a medium and hits the...

    A light ray is travelling at 1.33 x 108 m/s through a medium and hits the interface of a second medium. The critical angle for total internal reflection is 50 degrees for this case. If the mediums were switched, and light was traveling now from the second medium to the first medium (same two mediums, however), what would be the incident angle needed, in degrees, with the respect to the normal, if the refracted angle is 33 degrees?

  • A light ray is travelling at 2.21 x 108 m/s through a medium and hits the...

    A light ray is travelling at 2.21 x 108 m/s through a medium and hits the interface of a second medium. The critical angle for total internal reflection is 54 degrees for this case. If the mediums were switched, and light was traveling now from the second medium to the first medium (same two mediums, however), what would be the incident angle needed, in degrees, with the respect to the normal, if the refracted angle is 32 degrees?

  • A light ray is travelling at 1.65 x 108 m/s through a medium and hits the...

    A light ray is travelling at 1.65 x 108 m/s through a medium and hits the interface of a second medium. The critical angle for total internal reflection is 51 degrees for this case. If the mediums were switched, and light was traveling now from the second medium to the first medium (same two mediums, however), what would be the incident angle needed, in degrees, with the respect to the normal, if the refracted angle is 21 degrees?

  • Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle...

    Air Plastic 45° A ray of light enters a clear plastic cube as shown. The angle of reflection is 45 degrees, The light speed in the plastic is 2.5x10^8m What is the angle of refraction? A-45 degrees B- 36 degrees C- 59 degrees E- 28 degrees F- 54 degrees

  • 1. A ray of light (ray a) in air strikes a flat piece of glass at...

    1. A ray of light (ray a) in air strikes a flat piece of glass at an angle of po =60.94° with respect to the normal, as shown in the figure. The index of refraction of the glass is 1.498. What is the angle 0 between the reflected ray (ray b) and refracted ray (ray c) rays? a air glass

  • Please show all work and equations in clear written detail, will rate :) ty <3 21)...

    Please show all work and equations in clear written detail, will rate :) ty <3 21) A plastic cube is immersed in water having an index of refraction of 1.33. A laser beam in the plastic strikes the interface at an angle of 14.5° with the normal in the plastic. In the water, this beam makes an angle of 21.8° with the normal. What is the speed of light in the plastic cube? (c = 3.0 × 108 m/s)

  • A glass lens has a scratch-resistant plastic coating on it. The speed of light in the...

    A glass lens has a scratch-resistant plastic coating on it. The speed of light in the glass is 0.720c, and the speed of light in the coating is 0.80c. A ray of light in the coating is incident on the plastic–glass boundary at an angle of 18.3° with respect to the normal. At what angle with respect to the normal is the ray transmitted into the glass?
