A charge q1 = +5.00 x 10-6C is at the origin. a charge q2 = 3.00...

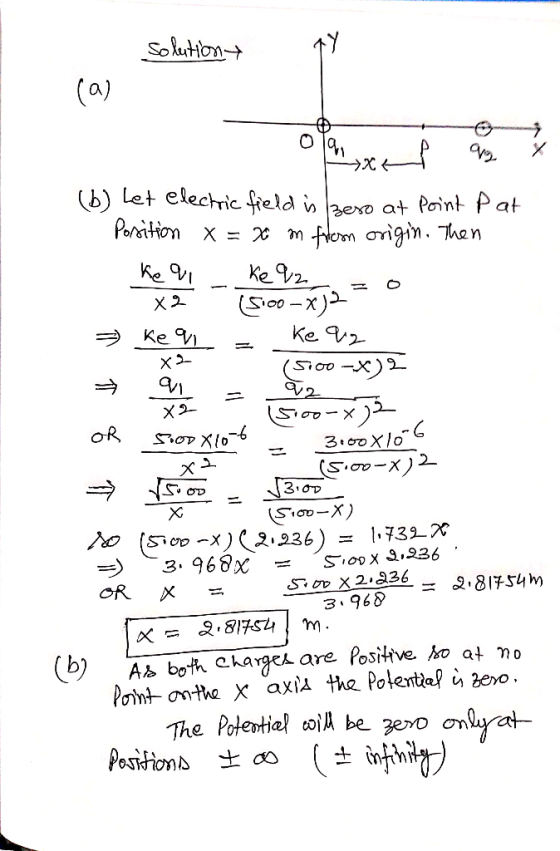

A charge q1 = +5.00 x 10-6C is at the origin. a charge q2 = 3.00 x 10-6C is at x = +5.00m (a) draw a diagram (b) Where is the electric field zero on the x axis? (c) where is the electric potential zero on the x axis? (assume that the electric potential is zero at infinity.)
Homework Answers
Point charge q1 =-5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00 cm. Point P is on the y-axis at y = 4.00cm.
Point charge q1 =-5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00 cm. Point P is on the y-axis at y = 4.00cm.Calculate the electric fields E1 and E2 at point P due to the charges q1 and q2. Express your results in terms of unit vectorsUse the results of part (a) to obtain the resultant field at P, expressed in unit vector form.
A point charge q1 = -5.00 nC is located at the origin, and the second point charge q2 = -3.00 nC is on the x-axis at x = 1.00 m
A point charge q1 = -5.00 nC is located at the origin, and the second point charge q2 = -3.00 nC is on the x-axis at x = 1.00 m. What is the total electric flux due to those two point charges through a spherical surface centered at the origin and with radius.a) 0.500 m? b) 2.00 m?
Charge q1 = 3.00 nC is at x1 = 0 and charge q2 = 5.00 nC...
Charge q1 = 3.00 nC is at x1 = 0 and charge q2 = 5.00 nC is at x2 = 5.00 m. At what point between the two charges is the electric field equal to zero? (Enter the x coordinate in m.)
4) A charge (q1 = -2.00 μC) is placed at the origin and another charge (q2...
4) A charge (q1 = -2.00 μC) is placed at the origin and another charge (q2 = + 9.00 μC) is placed on x-axis at x = + 1.00 m. Determine the point (other than infinity) on x-axis at which the net electric field is zero. (Answer in meters)
Q1 Q2 A charge of-3.5 x 10-9 C is at the origin and a charge of...
Q1 Q2 A charge of-3.5 x 10-9 C is at the origin and a charge of 6.9 × 10-9 C is on the x-axis at x = 3 m. At what location on the x- axis is the electric ficld zero?
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00cm. Point P is on the y-axis at y = 4.00cm. A)Calculate the electric fields E⃗ 1 and E⃗ 2 at point P due to the charges q1 and q2. Express your results in terms of unit vectors (see example 21.6 in the textbook). B) Use the results of part (a) to obtain the resultant field...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00cm. Point P is on the y-axis at y = 4.00cm. Calculate the electric fields E⃗ 1 and E⃗ 2 at point P due to the charges q1 and q2. Express your results in terms of unit vectors Use the results of part (a) to obtain the resultant field at P, expressed in unit vector form.
A charge Q1=45.5nC is located at the origin. A negative charge Q2=-7.5nC is located on the...
A charge Q1=45.5nC is located at the origin. A negative charge Q2=-7.5nC is located on the positive x-axis p=5cm from the origin. Calculate the location , x, on the x-axis, in centimeters, where the electric field is equal to zero.
One charge, q1 = -55.0 nC, is at the point (-5.00 x 10-7 m, 0 m)....
One charge, q1 = -55.0 nC, is at the point (-5.00 x 10-7 m, 0 m). Another charge, q2 = 11.0 nC, is at the point (5.00 x 10-7m, 0 m). If the field point is at the origin, how far from the origin (along the x-axis) could a 5.00 nC charge be placed so that the strength of the resultant electric field would be zero?
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second...
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 = -6.00 nC is located on the x axis at x = 5.00 m. 1) Where along the x axis will a third point charge of q = +2.00 nC charge need to be for the net electric force on it due to the two fixed charges to be equal to zero? (Express your answer to three significant figures.)
Q1 Q2 A charge of-3.5 x 10-9 C is at the origin and a charge of 6.9 × 10-9 C is on the x-axis at x = 3 m. At what location on the x- axis is the electric ficld zero?
