A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of...

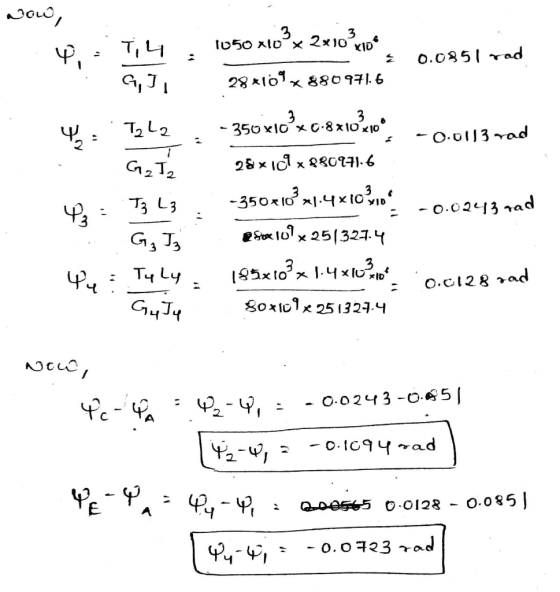

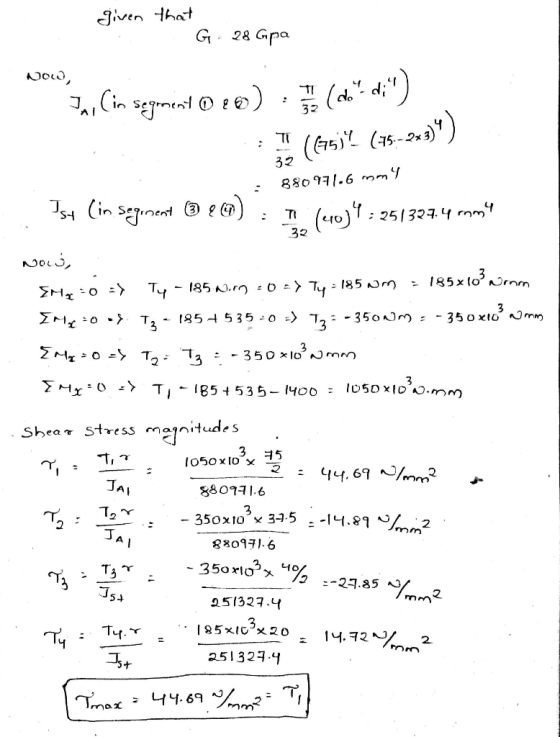

A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are applied to the pulleys in the directions hollow aluminum [G indicated: T 1050 N-m, TB = 1400 N-m, Tp = 535 N-m, and Te = 185 N-m. The bearings shown allow the shaft to turn freely. Calculate (a) the maximum shear stress in the compound shaft. (b) the rotation angle of flange C with respect to pulley A. (c) the rotation angle of pulley E with respect to pulley A.
