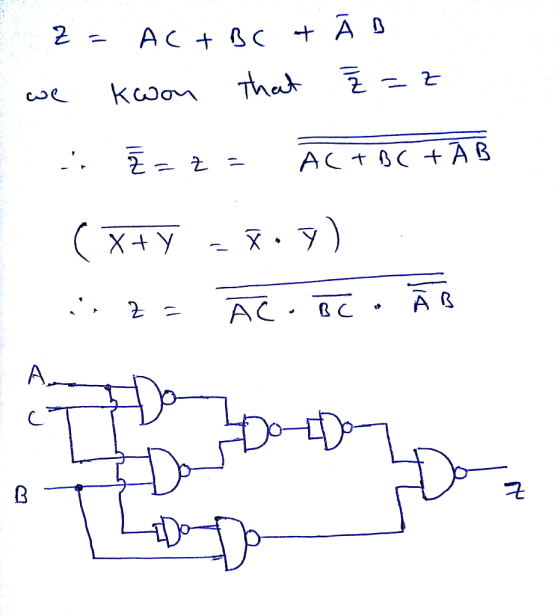

Draw a 2 input nand diagram for the following z = AC + BC + ĀB
3. () Use only NAND gates to implement the Boolean function F AC +BC. (ii) Use only NOR gates to implement the Boolean function F AB+BC. Write the truth tables and draw the logic circuits for the following Boolean functions: (i) F A +BC'. (ii) F AB +C'+D. 4.
1) Draw the diagram of XOR gate using AND, OR and NOT gates only 2) Draw the diagram of this function (x,y) = (x’y + xy’ + x’y’) using NOT, AND gates only 3) Draw the diagram of this function (x,y,z,w) = (x’ + y’).(z + w) using 2 input NAND gates only Draw the diagram of this function (x,y,z) = xy’z using 2 input NAND gates only.
Design a 3 Input CMOS NAND gate. Please submit the following: - CMOS Diagram - Extended Truth Table - Stick Diagram (2 ways of designing it)
2. Draw the logic circuit to represent the following Boolean expression using only two input NAND gates. F = AB.BC.ĀC
1. Determine 2 ways to implement an inverter with a 2-input NAND gate. 2. Implement a 3-input NAND gate function using 2-input NAND gates only, draw schematics. 3. Implement a 2-input OR function using 2-input NAND gates only, draw schematics. 4. (A) Implement the function using one 2-input OR gate, one 2- input AND gate and one 2-input NAND gate. (B) Implement the same function with only NAND gates. (C) Make up the truth table for the function. What is...
Given the function below, F(w,x,y,z)= x’z+w’z’+w’y a) draw a logic diagram for an implementation which uses only five two-input NOR gates. b) Implement the function of parts a using only four two-input NAND gates. Draw the logic diagram. USE K-MAP TO SOLVE.
Problem 3. a. Draw a NAND logic diagram that implements the complement of the following function: F(A, B, C, D) = ∑(0,1,2,3,6, 10, 11, 14). b. Use Karnaugh Map to minimize the function F(w, x, y, z) = ∑ (0,2,5,7,8, 10, 12, 13, 14, 15)
Conver and draw AB+BC+Ac to nor gate only
Draw the logic diagram of a 2-to-4-line decoder using (a) NOR gates only and (b) NAND gates only. please show the steps
Sketch the layout of this CMOS static 3-input NAND gate using stick diagram. The stick diagram should include the N-diffusion (green), P-diffusion (yellow), polysilicon (red), metal areas (blue), and contact (black 1) layers should be implemented between a power (V and ground rail. (3 markah/marks)
