When a program is run on Computer X, 70% of the execution time is CPU time...

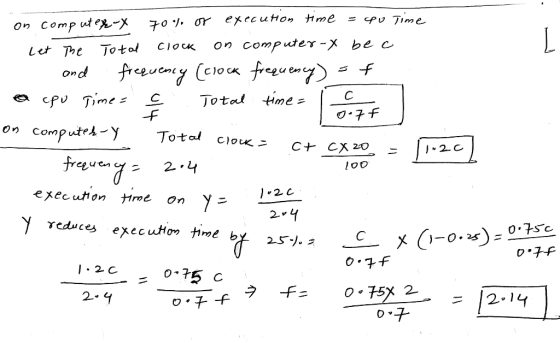

When a program is run on Computer X, 70% of the execution time is CPU time . A better Computer Y reduces the execution time by 25%. It is know that Computer Y has a clock rate of 2.4 GHz, and it takes Computer Y 20% more clock cycles to execute the program. In addition, Computer Y can only reduce CPU time. What is the clock rate in GHz of Computer X? The answer must have exactly one digit after the decimal point, even if it is zero, e.g. 2.0 or 0.9.
Homework Answers
Add Answer to:
When a program is run on Computer X, 70% of the execution time
is CPU time...
A program (or a program task) takes 150 million instructions to execute on a processor running...
A program (or a program task) takes 150 million instructions to execute on a processor running at 2.7 GHz. Suppose that 50% of the instructions execute in 3 clock cycles, 30% execute in 4 clock cycles, and 20% execute in 5 clock cycles. What is the execution time for the program or task? Suppose the processor in the previous question part is redesigned so that all instructions that initially executed in 5 cycles and all instructions executed in 4 cycles...
(6 pts) A program P2 is executed on computer system B, which has a 2.8571429 GHz...
(6 pts) A program P2 is executed on computer system B, which has a 2.8571429 GHz clock frequency. A programmer writes code to read processor performance monitoring registers after the program completes (Intel refers to the part of the CPU that can be used to collect run-time information as the Performance Monitoring Unit or PMU). The performance monitoring unit indicates that 23,118,471,971 user instructions were executed (just the instructions of P2 excluding OS and overhead instructions) in 53,866,039,692 clock cycles....
Computer organization roblem 4 (17 pts) ) A program runs 10 us in 10 seconds on...
Computer organization
roblem 4 (17 pts) ) A program runs 10 us in 10 seconds on computer A/ which has a 2 GHz clock. You are trying to help a computer designer determined that a build a computer, B, which will run this program in 6 seconds The designer has substantial increase in the clock rate is possible, but this increase will affect the rest causing computer B to require L.2 times as many clock cycles as computer A for...
Suppose this program is executed in a computer in which the clock rate for the processor is 1.6 MHz
Figure 1: each block gives the number of different types of instructionsConsider a program with the execution flow shown in Figure 1. There are in total 3 types of instructions used in this program: Type 1 (in-processor calculation): execution rate as 1 per clock cycle; Type 2 (memory access): each instruction takes 2 clock cycles for execution; Type 3 (loop control): each instruction takes 2 clock cycles for jump into the loop block or 3 clock cycles for jump to the block after...
About computer architecture and organization. Please solve those questions Thank you 2. A certain program has...
About computer architecture and organization.
Please solve those questions
Thank you
2. A certain program has the following instruction classes, CPIs, and mixtures: Instruction Type CPI ratio 1.5 .40 2.1 .35 3 a. What is the average CPI for this processor? b. You have the following options: • Option 1: Reduce the CPI of instruction type B to 1.8 • Option 2: Reduce the CPI of instruction type C to 2.5 Which option would you choose and why? 3. Consider...
Suppose you wish to run a program P with 24.5 x 10 9 instructions on a...
Suppose you wish to run a program P with 24.5 x 10 9 instructions on a 8 GHz machine with a CPI of 0.60. What is the expected CPU time to execute this program on this machine?
Topics 1. MIPS instruction set architecture (ISA). 2. Performance. 3. MIPS datapath and control. Exercise 1...
Topics 1. MIPS instruction set architecture (ISA). 2. Performance. 3. MIPS datapath and control. Exercise 1 Consider the memory and register contents shown below. Registers Ox0100 FFF8 13 ($t 5) 14 ($t6) 0x0100 FFFC 0x0101 0000 Memory 0x0000 0000 0x0001 1100 0x0A00 со00 0x1234 4321 OxBAOO OOBB 15 OXAAAA 0000 0x1111 1010 0x7FFF FFFD 0x0100 FFFO 0x0101 0008 (St7) Ox0101 0004 16 ($80) 0x0101 0008 17 ($sl) Show what changes and give the new values in hexadecimal after the following...
1. (10 points) Suppose you have a load-store computer with the following instruction mix Operation Frequency...
1. (10 points) Suppose you have a load-store computer with the following instruction mix Operation Frequency Number of clock cycles ALU ops Loads Stores Branches 40 % 20 % 18% 22 % 4 4 The ALU ops (arithmetic logic unit ops) typically use operands in CPU registers and hence they take fewer clock cycles to execute. However, if you want to add a memory operand to a CPU register, then you would have to explicitly load it into a CPU...
I need help with the following Computer Architecture question: Consider two different implementations, M1 and M2,...
I need help with the following Computer Architecture question: Consider two different implementations, M1 and M2, of the same instruction set. There are three classes of instructions (A, B, and C) in the instruction set. M1 has a clock rate of 90 MHz and M2 has a clock rate of 80 MHz. The average number of cycles for each instruction class and their frequencies (for a typical program) are as follows: Instruction Class Machine M1 – Cycles/Instruction Class Machine M2...
Design and implement a C Language program that measures the performance of given processors. There are...
Design and implement a C Language program that measures the
performance of given processors.
There are several metrics that measure the performance of a
processor. We will be using the following 3 measures:
1.CPI (clock cycles per instruction) = #clock cycles
/#instructions
2.CPU execution time = #instructions x CPI x clock cycle time
.
cylce time = 1/CPU clock rate in hertz units
3.MIPS (mega instructions per second)= #instrucrions/ CPU X
1000000
Typically, processors’ performance is measured using a wide...
Computer organization
roblem 4 (17 pts) ) A program runs 10 us in 10 seconds on computer A/ which has a 2 GHz clock. You are trying to help a computer designer determined that a build a computer, B, which will run this program in 6 seconds The designer has substantial increase in the clock rate is possible, but this increase will affect the rest causing computer B to require L.2 times as many clock cycles as computer A for...
About computer architecture and organization.
Please solve those questions
Thank you
2. A certain program has the following instruction classes, CPIs, and mixtures: Instruction Type CPI ratio 1.5 .40 2.1 .35 3 a. What is the average CPI for this processor? b. You have the following options: • Option 1: Reduce the CPI of instruction type B to 1.8 • Option 2: Reduce the CPI of instruction type C to 2.5 Which option would you choose and why? 3. Consider...
Topics 1. MIPS instruction set architecture (ISA). 2. Performance. 3. MIPS datapath and control. Exercise 1 Consider the memory and register contents shown below. Registers Ox0100 FFF8 13 ($t 5) 14 ($t6) 0x0100 FFFC 0x0101 0000 Memory 0x0000 0000 0x0001 1100 0x0A00 со00 0x1234 4321 OxBAOO OOBB 15 OXAAAA 0000 0x1111 1010 0x7FFF FFFD 0x0100 FFFO 0x0101 0008 (St7) Ox0101 0004 16 ($80) 0x0101 0008 17 ($sl) Show what changes and give the new values in hexadecimal after the following...
1. (10 points) Suppose you have a load-store computer with the following instruction mix Operation Frequency Number of clock cycles ALU ops Loads Stores Branches 40 % 20 % 18% 22 % 4 4 The ALU ops (arithmetic logic unit ops) typically use operands in CPU registers and hence they take fewer clock cycles to execute. However, if you want to add a memory operand to a CPU register, then you would have to explicitly load it into a CPU...
Design and implement a C Language program that measures the
performance of given processors.
There are several metrics that measure the performance of a
processor. We will be using the following 3 measures:
1.CPI (clock cycles per instruction) = #clock cycles
/#instructions
2.CPU execution time = #instructions x CPI x clock cycle time
.
cylce time = 1/CPU clock rate in hertz units
3.MIPS (mega instructions per second)= #instrucrions/ CPU X
1000000
Typically, processors’ performance is measured using a wide...
