17. Earth can be considered as a spherical capacitor with two plates, where the negative plate...

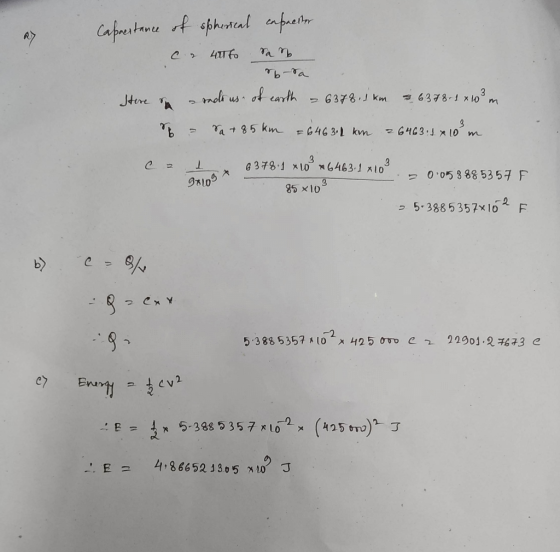

17. Earth can be considered as a spherical capacitor with two plates, where the negative plate is the surface of Earth and the positive plate is the bottom of the ionosphere, which is located at an altitude of approximately 85 km. The potential difference between Earth’s surface and the ionosphere is about 425,000 V. (a) Calculate the capacitance of this system. (b) Find the total charge on this capacitor. (c) Find the energy stored in this system.
Homework Answers
Add Answer to:
17. Earth can be considered as a spherical capacitor with two
plates, where the negative plate...
If the earth is a spherical capacitor, what is its capacitance? Assume the radius of earth’s...
If the earth is a spherical capacitor, what is its capacitance? Assume the radius of earth’s surface to be approximately 6370 km, and the radius of its core is zero.
The plates of a parallel-plate capacitor in vacuum are 2.90 mm apart and 2.75 m^2 in...
The plates of a parallel-plate capacitor in vacuum are 2.90 mm apart and 2.75 m^2 in area. When you apply a certain potential difference across the capacitor, the surface charge density on the positive plate is 1.40×10−5C/m^2. Calculate the capacitance of the capacitor. C = Find the potential difference. V =
A spherical capacitor has a spherical inner plate with radius a and outer plate with radius...
A spherical capacitor has a spherical inner plate with radius a
and outer plate with radius b. The charge on the inner plate is +Q
and on the outer plate it is -Q. We have filled a cone shaped
region of angle θ (0 ≤ θ ≤ π) with a dielectric with constant κ.
The dielectric fills the entire volume between the two spheres
inside the cone. You may neglect any fringing effects between the
dielectric and the vacuum (dielectric...
A parallel plate capacitor is constructed with circular plates of radius 0.750 cm and plate separation...
A parallel plate capacitor is constructed with circular plates of radius 0.750 cm and plate separation 0.0500 mm. If the capacitor is connected across a 37.2 V source, find: a) the capacitance b) the surface charge on each plate c) The energy stored in the capacitor d) the electric field between the plates e) the energy density between the plates
The two plates of a parallel-plate capacitor each have an area of 2.09 × 10-2 m2....
The two plates of a parallel-plate capacitor each have an area of 2.09 × 10-2 m2. The separation between the plates is 0.124 mm and the space between the plates is filled with a material with a dielectric constant of 4.45. (a) What is the capacitance of this capacitor? (b) If the plates are connected to the terminals of a battery so that the magnitude of the potential difference between the plates is 8.13 V, what is the magnitude of...
The two plates of a parallel-plate capacitor each have an area of 2.25 × 10-2 m2....
The two plates of a parallel-plate capacitor each have an area of 2.25 × 10-2 m2. The separation between the plates is 0.164 mm and the space between the plates is filled with a material with a dielectric constant of 4.10. (a) What is the capacitance of this capacitor? (b) If the plates are connected to the terminals of a battery so that the magnitude of the potential difference between the plates is 7.90 V, what is the magnitude of...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a...
The plates of an air-filled parallel-plate capacitor with a plate area of 16.5 cm2 and a separation of 8.80 mm are charged to a 130-V potential difference. After the plates are disconnected from the source, a porcelain dielectric with κ = 6.5 is inserted between the plates of the capacitor. (a) What is the charge on the capacitor before and after the dielectric is inserted? Qi = ___C Qf = ____C (b) What is the capacitance of the capacitor after...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.80 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is = micro C. A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. When it is charged to a potential difference of 12 V, the charge stored on it is= micro C. A parallel-plate capacitor...
explain why please A parallel-plate capacitor is made of two conducting plates of area A separated...
explain why please
A parallel-plate capacitor is made of two conducting plates of area A separated by a distance d. The capacitor carries a charge Q and is initially connected to a battery that maintains a constant potential difference between the plates. The battery is then disconnected from the plates and the separation between the plates is doubled. ) Which of the following remains constant? Voltage across the capacitor Capacitance of the capacitor Charge on the capacitor Submit (Survey Question)...
The plates of a parallel-plate capacitor are 700 cm2 in area and 0.3 cm apart. The...
The plates of a parallel-plate capacitor are 700 cm2 in area and 0.3 cm apart. The potential difference between the plates is 935 V. (a) What is the magnitude of the electric field between the plates? (b) the charge on each plate? (c) the force exerted by the field on one of the plates? Now the two plates touch at the bottom forming a V-shape. (d) Find the total electric energy stored between the plates.
A spherical capacitor has a spherical inner plate with radius a
and outer plate with radius b. The charge on the inner plate is +Q
and on the outer plate it is -Q. We have filled a cone shaped
region of angle θ (0 ≤ θ ≤ π) with a dielectric with constant κ.
The dielectric fills the entire volume between the two spheres
inside the cone. You may neglect any fringing effects between the
dielectric and the vacuum (dielectric...
explain why please
A parallel-plate capacitor is made of two conducting plates of area A separated by a distance d. The capacitor carries a charge Q and is initially connected to a battery that maintains a constant potential difference between the plates. The battery is then disconnected from the plates and the separation between the plates is doubled. ) Which of the following remains constant? Voltage across the capacitor Capacitance of the capacitor Charge on the capacitor Submit (Survey Question)...
